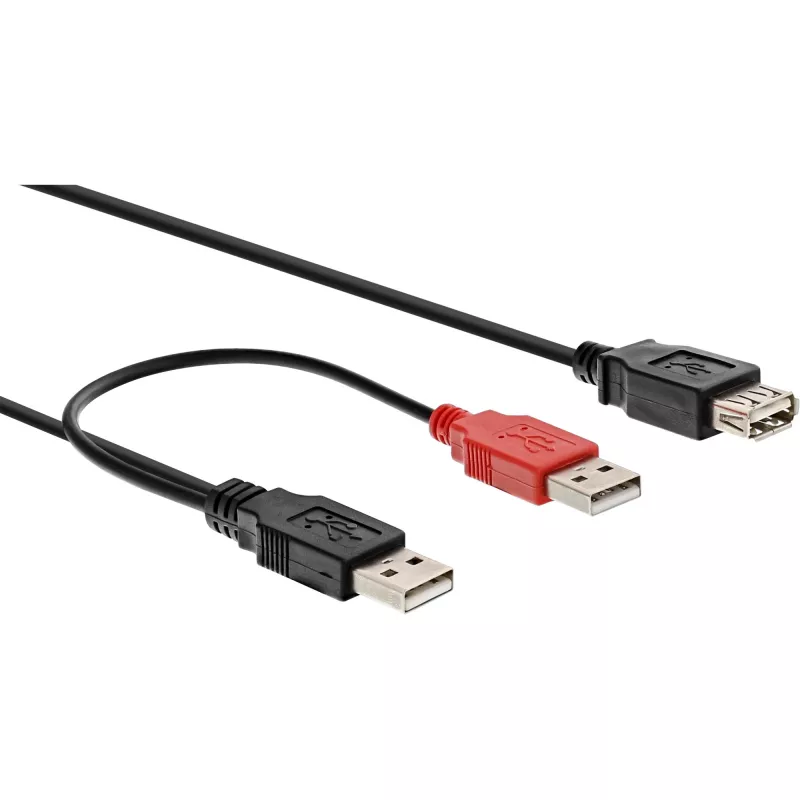

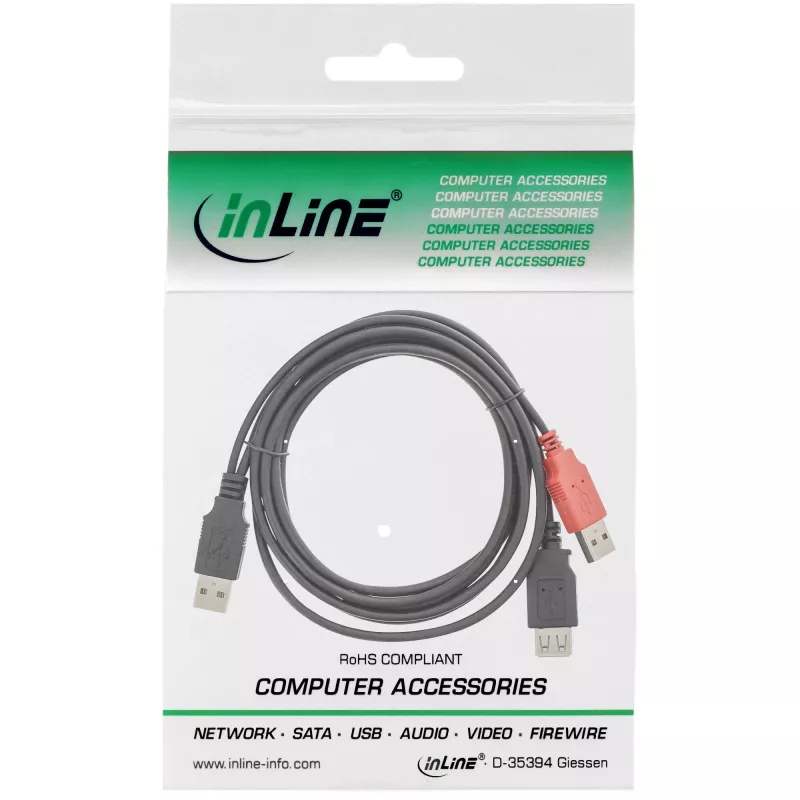

USB 2.0 Y-Cable 2x Type A male/female InLine 34510Z 0.2m

The InLine USB 2.0 Y-Cable (2x Type A male to Type A female, 0.2 m) combines power from two USB Type A ports into a single USB device connection. The compact 0.2 m cable supports USB 2.0 data rates up to 0.48 Gbit/s and is intended to provide additional current for peripherals that need more than a single port's 500 mA supply without requiring a separate power adapter.

Advantages

This Y-cable allows a device to draw power from two USB A ports simultaneously while maintaining a single USB A data/power receptacle. Its short 0.2 m length reduces cable clutter and is convenient for laptop use. The cable uses standard USB 2.0 connectors and is compatible with a wide range of USB-powered peripherals.

Suitable for

• External hard drives that require extra power
• Laptop cooling pads
• GPS receivers and similar USB peripherals
• Other USB devices needing more than 500 mA from a single port

Key specifications

• Connectors: 2 x USB Type A (male) to 1 x USB Type A (female)
• Cable length: 0.2 m
• Data rate: up to 0.48 Gbit/s (USB 2.0)
• Colour: Black
• Brand: InLine, MPN: 34510Z, EAN: 4043718115310

How to use

Plug the female USB A connector into the peripheral device. Insert both male USB A connectors into two separate USB ports on the host computer to combine available current. Ensure both host ports are powered and provide the required current. Do not force connectors into incompatible ports.

Recommendations

Use this cable when a USB device does not function from a single port due to power limits. Avoid using it to bypass powered-hub specifications or safety protections; if a device still fails to operate, use a dedicated powered USB hub or the device’s external power supply.
