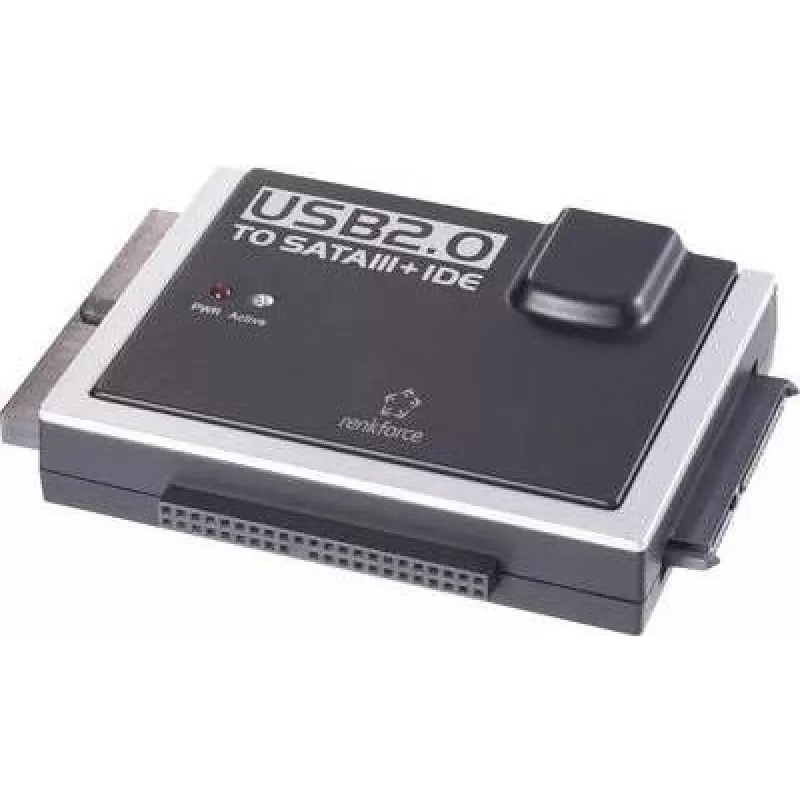

USB 2.0 to IDE/SATA Converter Renkforce P-ATA IDE – USB 2.0 interface for PATA (IDE) and SATA drives

The Renkforce USB 2.0 to IDE/SATA Converter P-ATA IDE provides a USB 2.0 connection that allows direct access to 2.5" and 3.5" PATA (IDE) and SATA hard drives as well as optical drives. The adapter enables data transfer, cloning, backup and drive diagnostics via a standard USB port without the need to install the drive inside a computer. The compact converter supports quick connection of internal drives for temporary external use and facilitates data recovery and migration tasks.

Advantages

This converter delivers a straightforward way to connect legacy PATA (IDE) and modern SATA drives to any computer with a USB 2.0 port. It eliminates the need to open a PC chassis for one-off access and supports both 2.5" laptop drives and 3.5" desktop drives. The device supports common operations such as file transfers, disk cloning and read-only diagnostics without requiring special software on most systems, making it suitable for technicians and end users who need a simple, portable solution.

Suitable for

• Data recovery from internal laptop or desktop hard drives
• Transferring files when upgrading or replacing drives
• Cloning or imaging drives for backup and migration
• Running diagnostics or scanning drives externally
• Accessing optical drives that use IDE or SATA interfaces

Key specifications

• Interface to host: USB 2.0 (high speed)
• Supported drive interfaces: PATA (IDE) and SATA
• Supported drive sizes: 2.5" (laptop) and 3.5" (desktop) drives
• Power supply: external power adapter required for 3.5" drives (adapter included or required depending on kit)
• Supported operations: data transfer, disk cloning, backup, diagnostics
• Operating systems: plug-and-play on most modern Windows, macOS and Linux systems (driverless for standard mass storage)

How to use

Connect the converter to the target drive by attaching either the SATA connector or the PATA ribbon/adapter to the drive's data interface, then connect the appropriate power lead. Plug the USB cable into the host computer's USB 2.0 port. The drive should be recognised by the operating system as an external storage device; use your file manager, cloning software or diagnostic utility to access the drive. Safely eject the drive from the operating system before disconnecting the USB cable and removing power.

Recommendations

Use the external power adapter when connecting 3.5" drives to ensure stable operation. For data recovery and cloning tasks, work on a copy of the source drive where possible and avoid writing to the original media until a verified backup is made. Handle drives and connectors carefully to avoid static discharge and mechanical damage.
