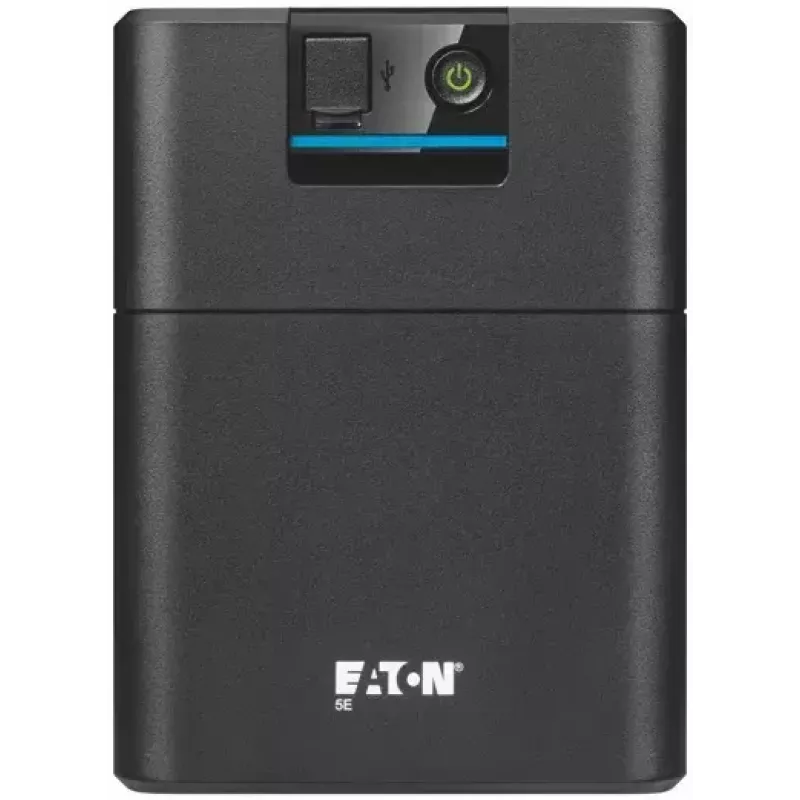

UPS Eaton 5E Gen2 1200 USB line‑interactive 1.2 kVA / 660 W, 2x Type G outlets, 1x USB, tower, black

The Eaton 5E Gen2 1200 USB is a line-interactive uninterruptible power supply with 1.2 kVA capacity and 660 W output power. Delivered in a compact tower form factor and finished in black, it provides two Type G (BS 1363) AC outlets and a USB port for basic monitoring and connection. The unit supports 220–240 V input operation voltage, 50/60 Hz input frequency, automatic restart after power return, and is intended to provide short-term backup and surge protection for home or small office equipment.

Advantages

The UPS combines line-interactive topology with automatic restart functionality to maintain continuity of power to connected devices during mains disturbances. Its two Type G outlets and USB port cover common connection needs while the tower design and 8.5 kg weight make it suitable for placement on or near a workstation. The device operates across the typical 220–240 V household and office range and supports both 50 Hz and 60 Hz mains frequencies.

Suitable for

• Home desktop computers and peripherals
• Small office workstations and network equipment
• Point-of-sale terminals and cash registers

Key specifications

• Topology: Line-interactive
• Output power capacity: 1.2 kVA
• Rated output power: 660 W
• Input voltage range: 220–240 V
• Input frequency: 50/60 Hz
• AC outlet type and quantity: 2 × Type G (BS 1363)
• USB port: Yes
• Form factor: Tower
• Control: Buttons
• Operating temperature range: 0–40 °C
• Colour: Black
• Weight: 8.5 kg

How to use

Place the UPS on a stable, flat surface in a ventilated area and connect the Eaton 5E Gen2 1200 USB to the mains supply using the supplied power cable. Plug the protected devices into the Type G outlets and connect the USB port to a computer if monitoring or shutdown software is used. The unit will provide automatic switching to battery power during mains interruptions and will attempt an auto-restart when mains power is restored.

Recommendations

To maximise service life and reliability, install the UPS in a temperature-controlled environment within the specified 0–40 °C range, avoid blocking ventilation, and perform periodic battery checks according to the manufacturer’s guidelines.
