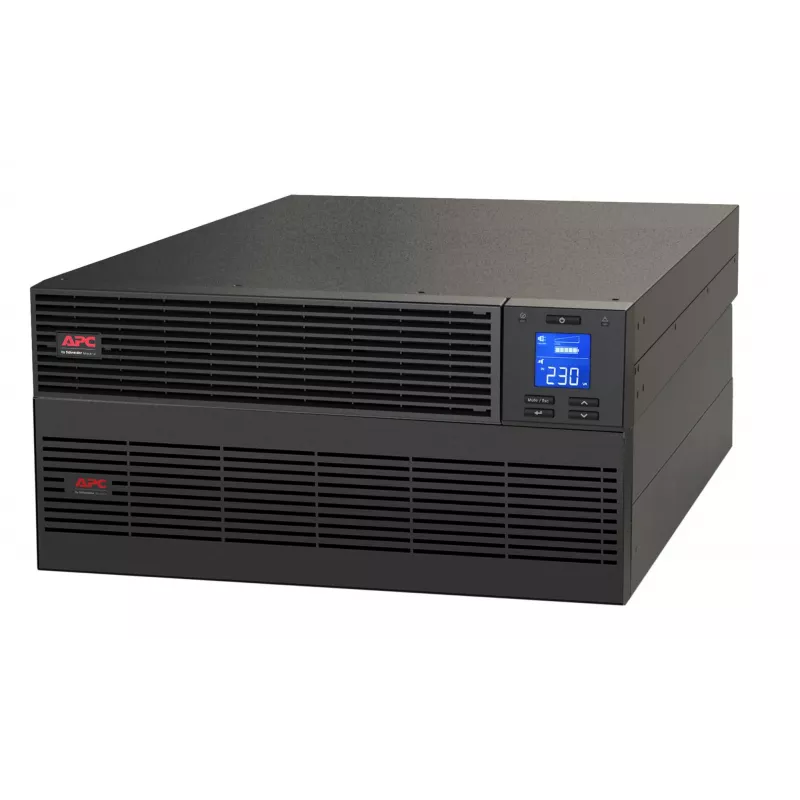

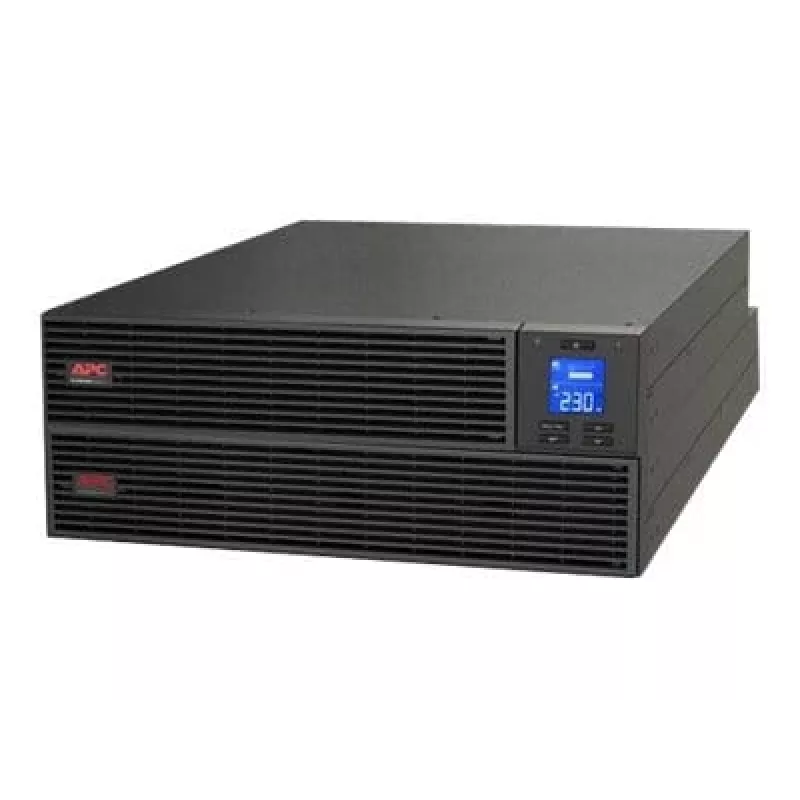

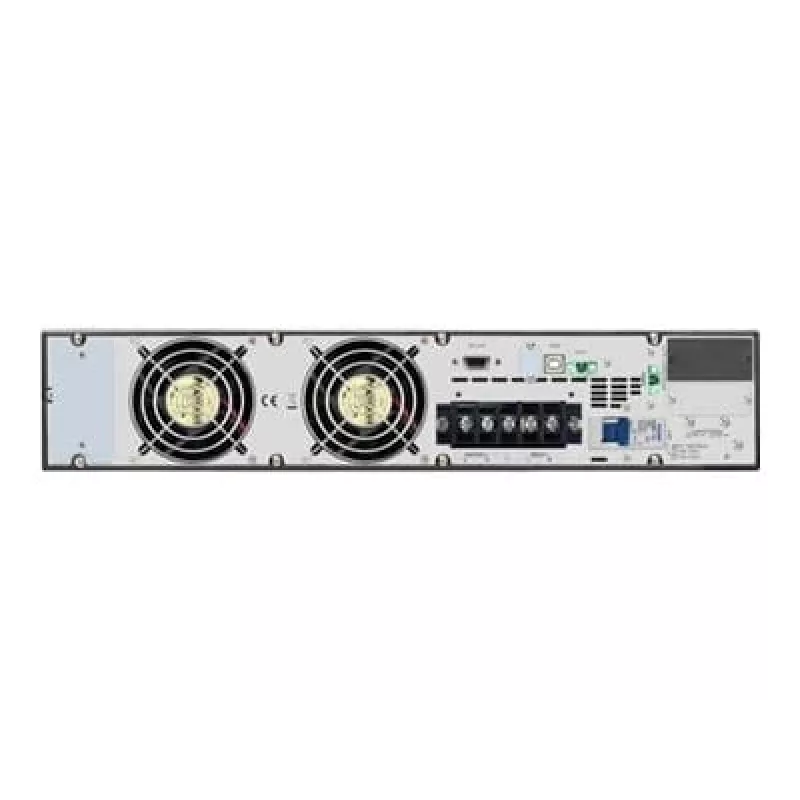

UPS APC SRV10KRILRK Double-conversion (Online) rackmount 10 kVA 10000 W 230 V USB 5U Black

APC SRV10KRILRK is a double-conversion (Online) rackmount UPS delivering 10 kVA / 10000 W output at 230 V. Built for 5U rack installation, it provides continuous, regulated power for servers, network devices and critical infrastructure. The unit is supplied in black and includes a USB cable, user manual and management software on CD for monitoring and configuration.

Advantages

Double-conversion online topology ensures consistent sinusoidal output and full isolation from mains disturbances. The rackmount 5U form factor is designed for data centre and server room racks, while the 10 kVA / 10000 W capacity supports medium to large equipment loads. Integrated USB connectivity and included software simplify monitoring and safe shutdown procedures.

Suitable for

• Server racks and blade servers in data centres
• Network switches, routers and core infrastructure
• Virtualisation hosts and storage arrays
• Small to medium enterprise critical applications requiring continuous clean power

When it may not be suitable

This UPS is a high-capacity rackmount unit intended for installed IT environments; it may be unsuitable for small offices, home use, or where tower-style UPS units are preferred. The product weight and rack size require appropriate rack space and handling equipment for installation.

Key specifications

• Topology: Double-conversion (Online)
• Output power: 10000 W
• Output capacity: 10 kVA
• Nominal output voltage: 230 V
• Form factor: 5U rackmount
• Colour: Black
• Connectivity: USB for management and monitoring
• Weight: 78 kg

How to use

Install the UPS into a compatible 19-inch rack using appropriate rails and mounting hardware. Connect critical equipment to the UPS output circuits and the UPS input to a properly rated mains supply. Use the included USB cable and supplied software to configure monitoring, alarms and automatic shutdown sequences. Follow the user manual for battery installation, initialisation and safety instructions.

What to consider before purchase

• Ensure available 5U rack space and sufficient rack weight capacity.
• Verify load requirements do not exceed 10000 W / 10 kVA capacity.
• Check whether external battery packs or additional runtime solutions are required.
• Confirm compatibility with existing monitoring systems and required communication ports.

Recommendations

For reliable operation, place the UPS in a temperature-controlled environment, maintain clear ventilation around the unit, and perform regular battery tests and firmware updates using the provided management tools.
