Unmanaged Switch Trendnet TPE-1020SB 8 Ports Gigabit Ethernet PoE 1U

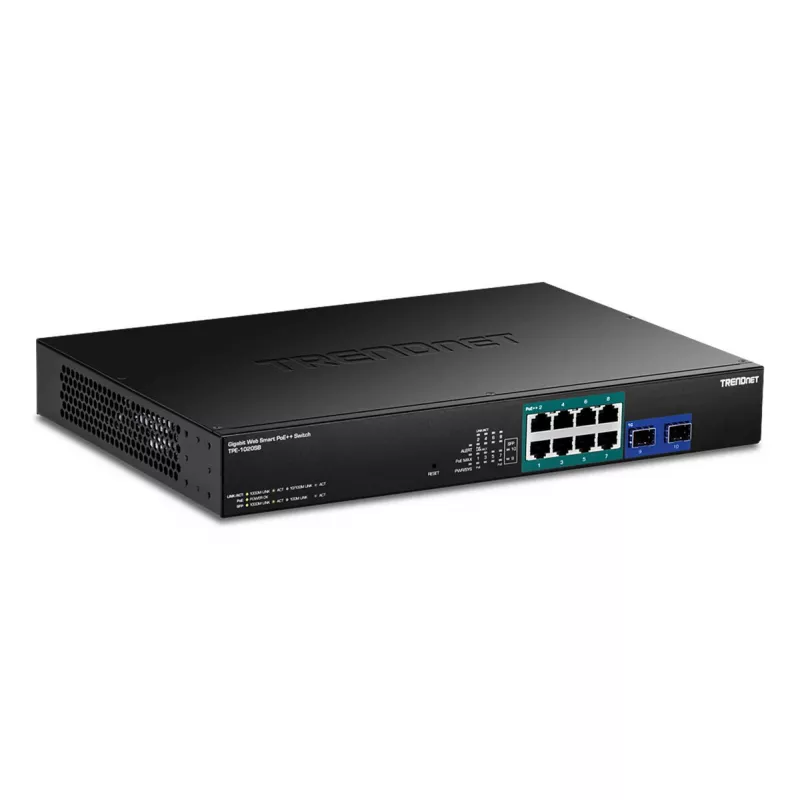

The TRENDnet TPE-1020SB is an 8-port Gigabit Ethernet PoE switch in a 1U rack-mountable enclosure designed to expand network connectivity and power for PoE devices. This unmanaged switch provides a 20 Gbit/s switching capacity and an 8000-entry MAC address table, supporting IEEE 802.3bt (PoE++) to deliver high-power PoE over existing Ethernet cabling.

Advantages

The switch supplies up to 95W per PoE++ port with a total PoE power budget of 180W, enabling deployment of high-power devices such as PTZ/advanced IP cameras and high-power wireless access points. Its compact 1U, 19" rack form factor and Gigabit RJ-45 ports make it suitable for standard rack installations while maintaining a modest weight of 2.38 kg. Compatibility with common Ethernet and PoE standards ensures interoperability with a wide range of network equipment.

Suitable for

• Powering and connecting IP cameras, including PTZ and high-power models
• Supplying PoE to wireless access points and digital signage
• Small to medium rack-mounted network deployments requiring PoE power
• VoIP phones, access control units and IPTV decoders

Key specifications

• Model: TPE-1020SB
• Ports: 8 x Gigabit RJ-45 Ethernet (10/100/1000) with PoE++
• SFP: 2 x Gigabit SFP slots
• PoE standard: IEEE 802.3bt (PoE++)
• PoE per port: up to 95W
• Total PoE budget: 180W
• Switching capacity: 20 Gbit/s
• MAC address table: 8,000 entries
• Form factor: 1U, 19" rack-mountable
• Weight: 2.38 kg
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3az, 802.3x, 802.1Q, 802.1p, 802.1x, 802.1s, 802.1w, 802.3ad, 802.3af/at/bt

How to use

Install the switch in a standard 19" rack using the provided brackets or place it on a shelf. Connect network devices to the Gigabit RJ-45 ports and, if required, insert SFP modules into the SFP slots for fiber links. Connect the switch to AC power; PoE will supply power to connected compatible devices automatically. Monitor device connectivity by checking link/activity LEDs on each port. For safe operation, follow site grounding and rack ventilation best practices.

Recommendations

Ensure the combined PoE power draw of connected devices does not exceed the 180W PoE budget. When deploying high-power devices, distribute them across ports to avoid exceeding per-switch power limits and verify cable quality (Cat5e or higher) for reliable PoE++ delivery.
