Unmanaged Switch TP-Link TL-SG1016D 16-Port Gigabit Ethernet

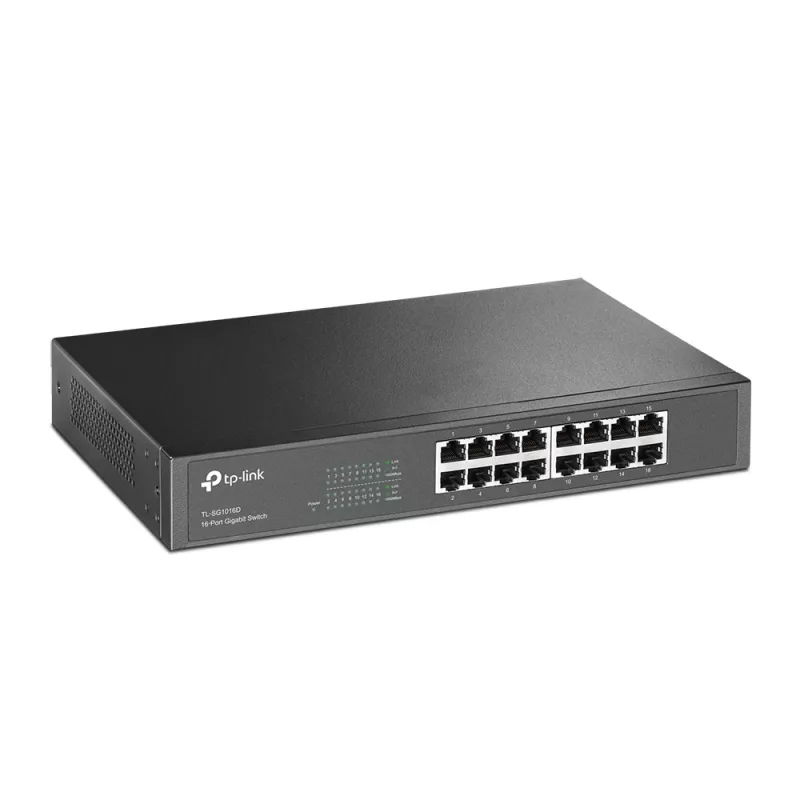

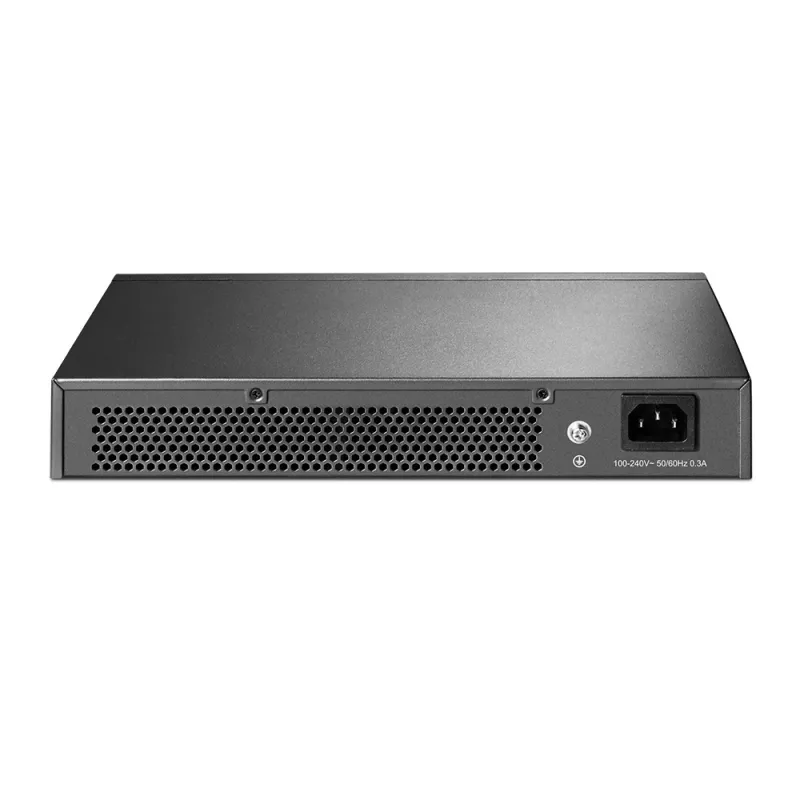

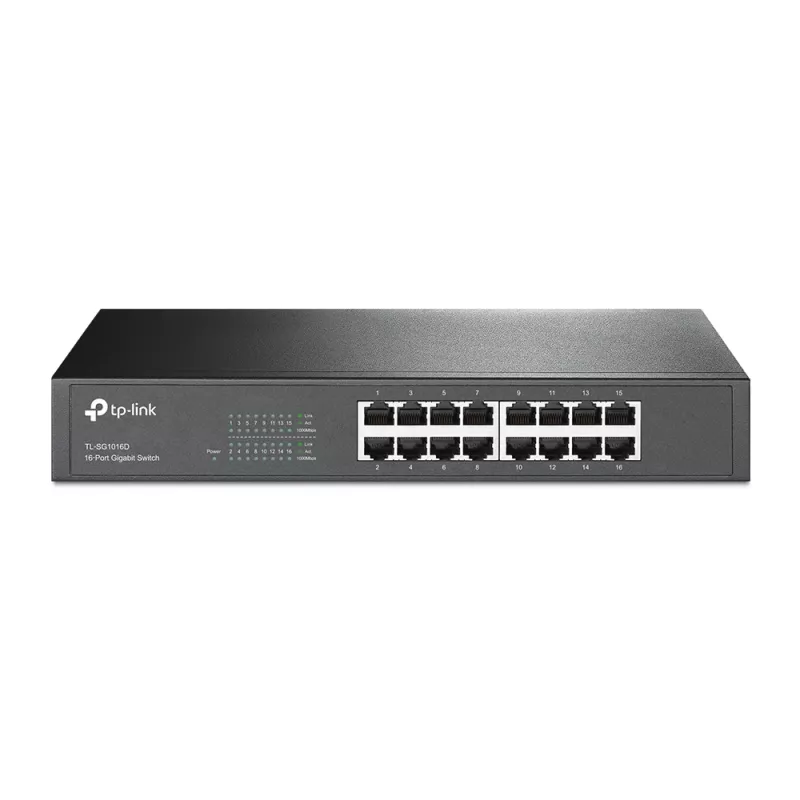

The TP-Link TL-SG1016D is an unmanaged 16-port Gigabit Ethernet switch that upgrades networks to 1000 Mbps connectivity. All 16 RJ-45 ports support auto MDI/MDIX and auto-negotiation for 10/100/1000 Mbps devices. Designed for desktop or rackmount use, the switch offers a switching capacity of 32 Gbit/s, 8,000 MAC address table entries and IEEE-compliant operation while maintaining simple plug-and-play installation.

Advantages

The TL-SG1016D delivers full wire-speed forwarding with a non-blocking architecture and supports 10KB Jumbo Frames to improve large file transfers. Energy-efficient technology adjusts power based on link status to reduce consumption, and the product meets RoHS requirements. All ports are auto MDI/MDIX so no crossover cables are needed, simplifying deployment in mixed 10/100/1000 Mbps environments.

Suitable for

• Small office or home office networks needing Gigabit connections
• Expanding network capacity for workstations, NAS or IP cameras
• Environments requiring simple, unmanaged switching with plug-and-play setup
• Desktop placement or 19" rackmount installations (where applicable)

Key specifications

• Ports: 16 × Gigabit RJ-45 (10/100/1000 Mbps), auto MDI/MDIX
• Switching capacity: 32 Gbit/s
• MAC address table: 8,000 entries
• Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
• Jumbo Frame: up to 10 KB
• Type: Unmanaged switch
• Colour: Black

How to use

Place the TL-SG1016D on a stable surface or mount it in a rack if supported. Connect power and link network devices to the RJ-45 ports using standard Ethernet cables; the switch will automatically detect link speed and polarity. No configuration is required—devices will communicate at the highest common speed (10/100/1000 Mbps) and the switch manages traffic with flow control and backpressure mechanisms.

Recommendations

For best results, use quality Cat5e or Cat6 cables to achieve Gigabit performance. Ensure adequate ventilation around the unit and place it away from heat sources. When connecting many high-traffic devices, monitor overall network load and position the switch close to the majority of endpoints to reduce cable runs.
