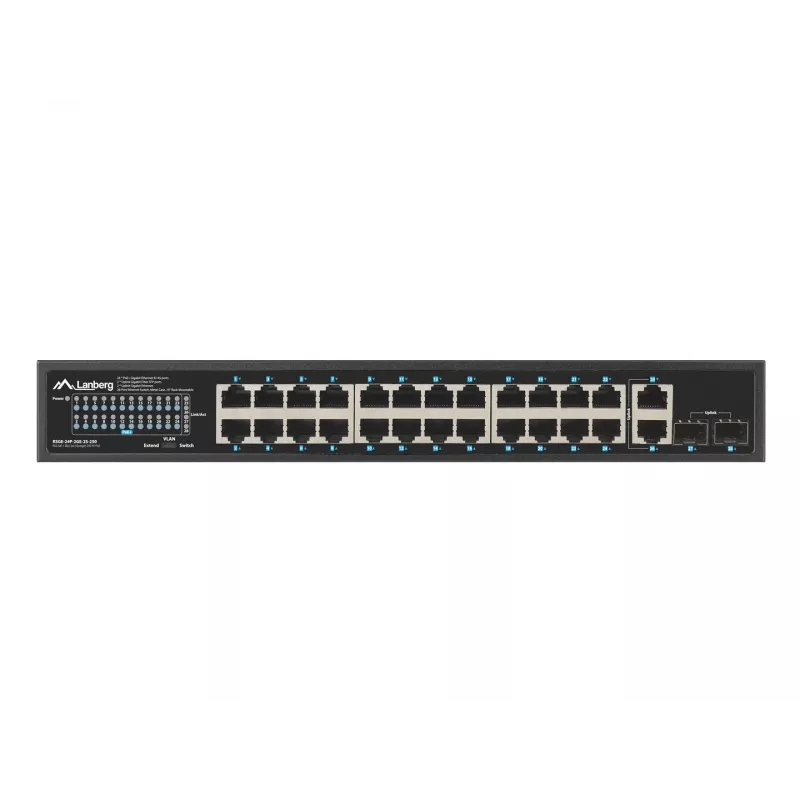

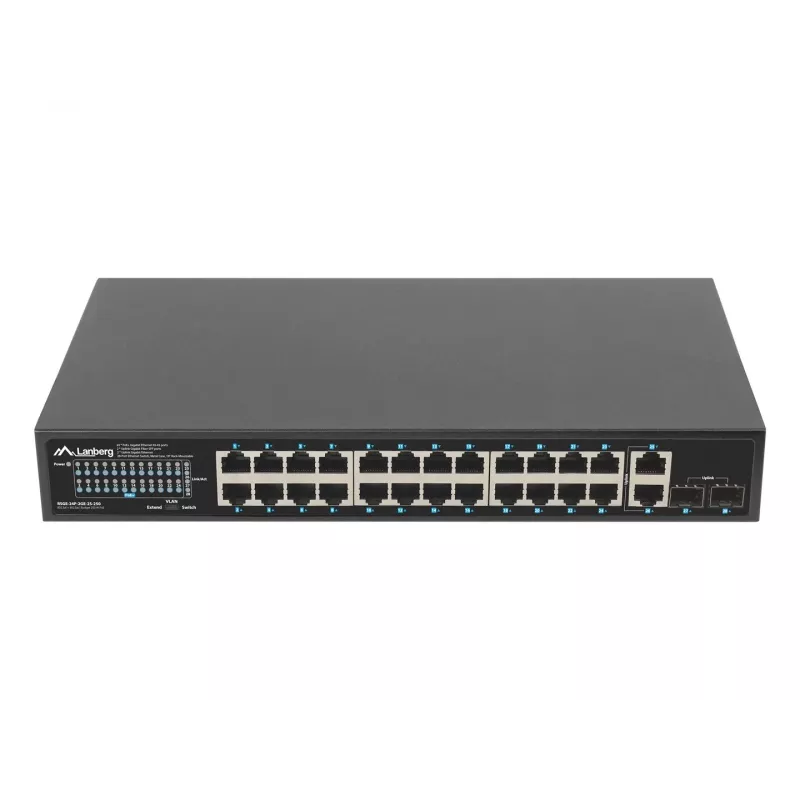

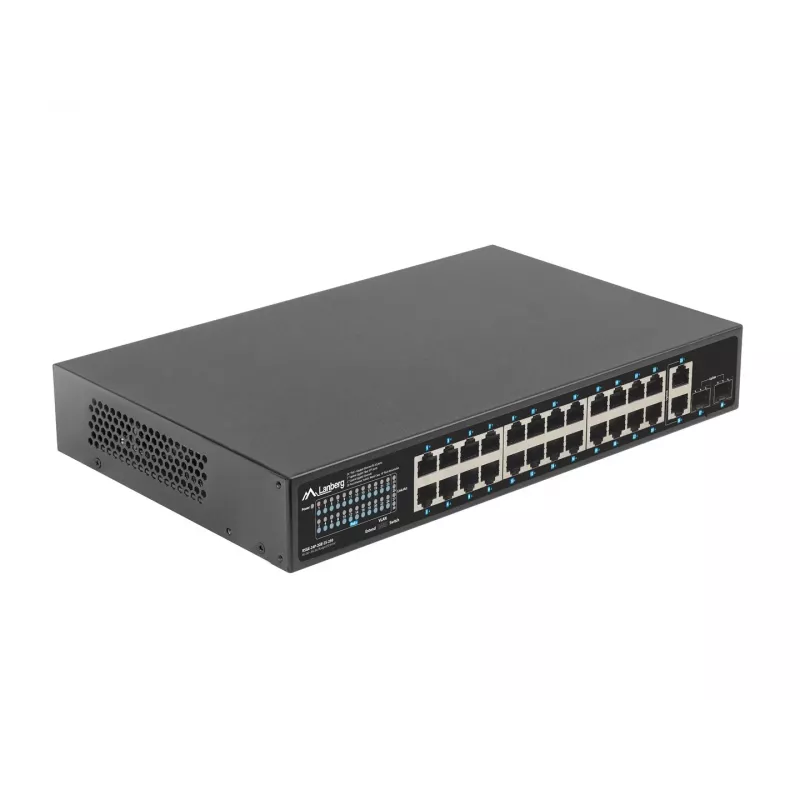

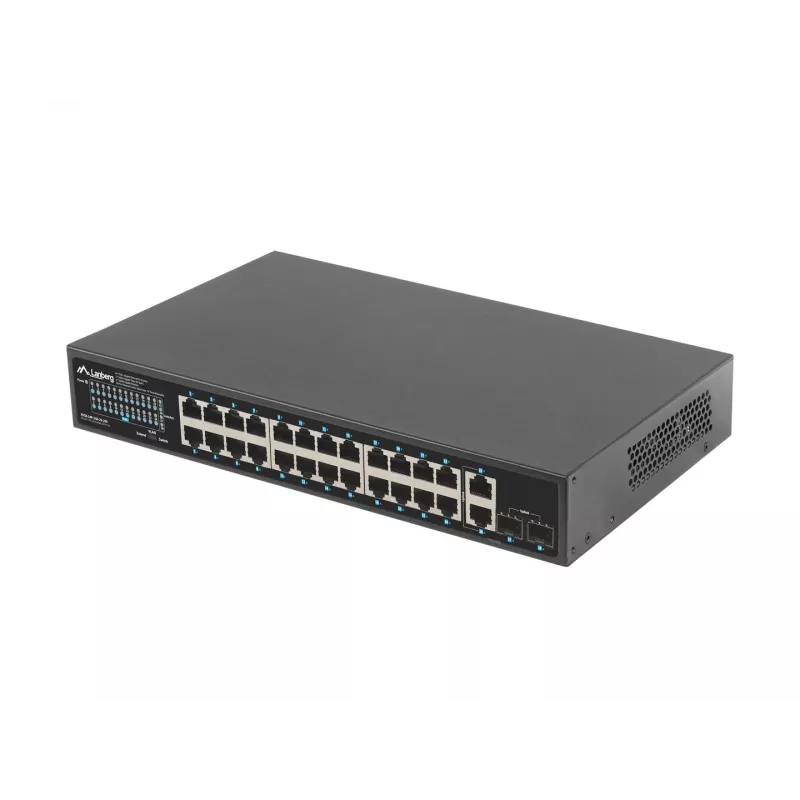

Unmanaged Switch Lanberg RSGE-24P-2GE-2S-250 24 Ports Rack Mounting

The Lanberg RSGE-24P-2GE-2S-250 is an unmanaged PoE+ Ethernet switch with 24 Gigabit PoE+ RJ-45 ports, two Gigabit uplink ports and two SFP Gigabit uplink ports designed for rack mounting. It supplies data and power over structured cabling to devices that comply with IEEE 802.3af/at standards, offering a total PoE power budget of up to 250 W. The device is suitable for installations such as home, business, surveillance, IP/VoIP, cable TV networks and low-voltage systems including alarm, fire and access control systems.

Advantages

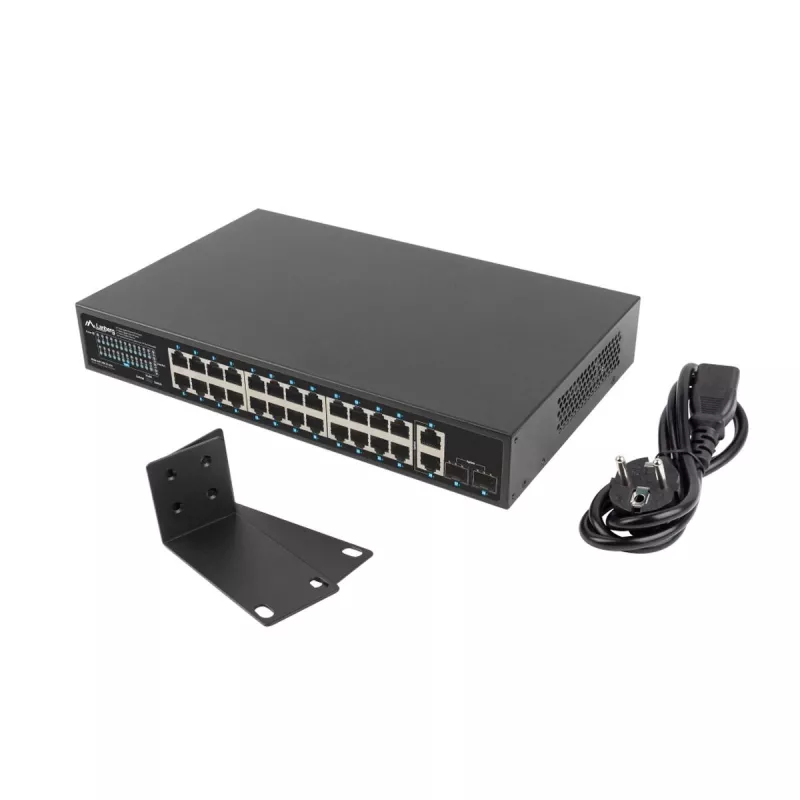

The switch combines data switching and PoE power delivery on a single infrastructure, reducing the need for separate power wiring and saving installation time and space. It provides a reliable PoE budget of up to 250 W and supports simultaneous operation of uplink ports independently from the 24 powered ports. A port-priority disconnection logic ensures predictable behavior when the PoE budget is exceeded: ports are turned off starting from the highest numbered PoE port to reduce load while preserving lower-numbered ports. The unit also features an extend mode that allows data (up to 10 Mbps) and PoE+ power transmission up to 250 m on ports 1–24, and integrated surge/discharge protection rated to 4 kV on all ports. Rack-mount ears and mounting hardware are included to simplify installation.

Suitable for

• IP surveillance systems (cameras and NVR integration)
• VoIP phones and business telephony
• Access control, alarm and fire detection systems
• Small and medium office networks requiring rack-mount PoE distribution

Key specifications

• Model: Lanberg RSGE-24P-2GE-2S-250 (MPN: RSGE-24P-2GE-2S-250, EAN: 5901969438680)
• Ports: 24 x Gigabit PoE+ RJ-45, 2 x Gigabit RJ-45 uplink, 2 x Gigabit SFP uplink
• PoE standards: IEEE 802.3af / IEEE 802.3at (PoE+)
• Total PoE budget: up to 250 W
• Simultaneous power examples: up to 16 × IEEE 802.3af (15 W per port) or 8 × IEEE 802.3at (30 W per port)
• PoE extend mode: PoE+ and data up to 250 m (ports 1–24) at max. 10 Mbps
• Surge/discharge protection: 4 kV on all ports
• Switch type: Unmanaged, rack-mountable

How to use

Install the switch in a 19" rack using the supplied mounting ears and screws. Connect the uplink ports to your core network or NVR using the Gigabit RJ-45 or SFP ports as needed. Connect PoE devices (IP cameras, phones, access control panels) to the 24 RJ-45 PoE+ ports. If long-distance operation is required, set the housing toggle to "PoE+ Extend 250 m" to enable extended PoE and data transmission (ports 1–24) at reduced data speed. Ensure connected devices comply with IEEE 802.3af/at standards to receive power from the switch.

Recommendations

For critical devices that must remain powered during PoE budget overloads, connect them to the lowest-numbered PoE ports so they are preserved by the switch's prioritized disconnection logic. Place power-hungry devices and standard devices with known power profiles to avoid unexpected budget exhaustion, and verify cable quality and length when using the extend mode to maintain stable operation.
