Unmanaged Switch Intellinet 16-Port Gigabit Ethernet PoE+ 370W

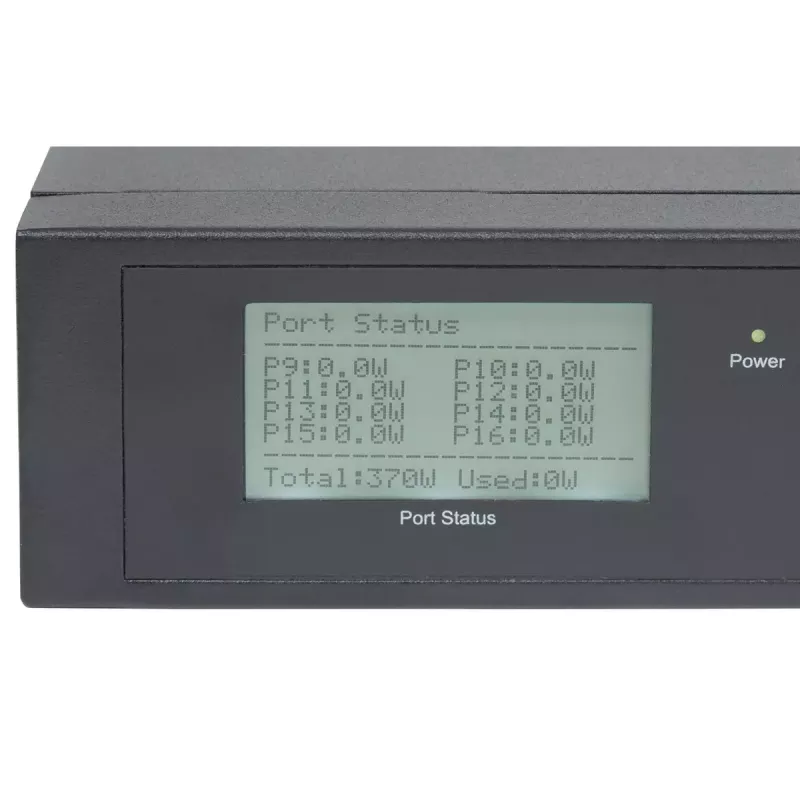

The Intellinet 16-Port Gigabit Ethernet PoE+ Switch (model 561259) is an unmanaged network switch that provides 16 Gigabit RJ45 ports and 2 SFP ports, with a total PoE power budget of 370 W. It supports IEEE 802.3af and 802.3at Power over Ethernet standards to deliver data and up to 30 W per port to compatible devices, and offers a switching capacity of 36 Gbps for wired and fiber connections. A front-panel LCD shows real-time power consumption per port, total used power and available power, and alerts for overload, high temperature and short-circuit conditions.

Advantages

The switch supplies PoE+ power to IP cameras, VoIP phones and wireless access points without external adapters, reducing installation complexity. Its unmanaged operation requires no configuration while 16 auto-sensing Gigabit ports plus two true SFP Gigabit slots enable high throughput and fibre uplinks. The integrated LCD status display provides immediate visibility of power usage and fault conditions. Built-in protection against short-circuit, overload and high voltage helps protect connected equipment.

Suitable for

• Small and medium office networks
• IP surveillance systems with multiple PoE cameras
• Wireless LAN deployments with PoE access points
• VoIP phone installations
• Network edge switches in rack-mounted setups

Key specifications

• Ports: 16 x Gigabit RJ45 (10/100/1000) + 2 x SFP
• PoE standard: IEEE 802.3af / IEEE 802.3at (PoE+)
• Total PoE budget: 370 W (max per port up to 30 W; average distribution 23.125 W)
• Switching capacity: 36 Gbps
• Unmanaged switch, auto-sensing ports
• Product colour: Black; Weight: 4 kg
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3az, 802.3x

How to use

Mount the switch in a rack or place it on a stable surface. Connect network devices to the Gigabit RJ45 ports using Cat5e or Cat6 cables; connect fiber uplinks to the SFP slots with compatible SFP modules. PoE-capable devices will receive power automatically when connected — no additional configuration is required on this unmanaged switch. Monitor the front-panel LCD to view per-port and total power consumption and to check for warnings about overload, temperature or faults.

Recommendations

Ensure the combined power draw of connected PoE devices does not exceed the 370 W total budget. For legacy devices that do not support IEEE 802.3af/at, use a PoE splitter if power is required. Install the switch in a ventilated area and avoid exposing it to high ambient temperatures to prevent thermal warnings and possible power limiting.
