Unmanaged Switch Extralink Atlas 8x RJ45 1000Mbps PoE 120W

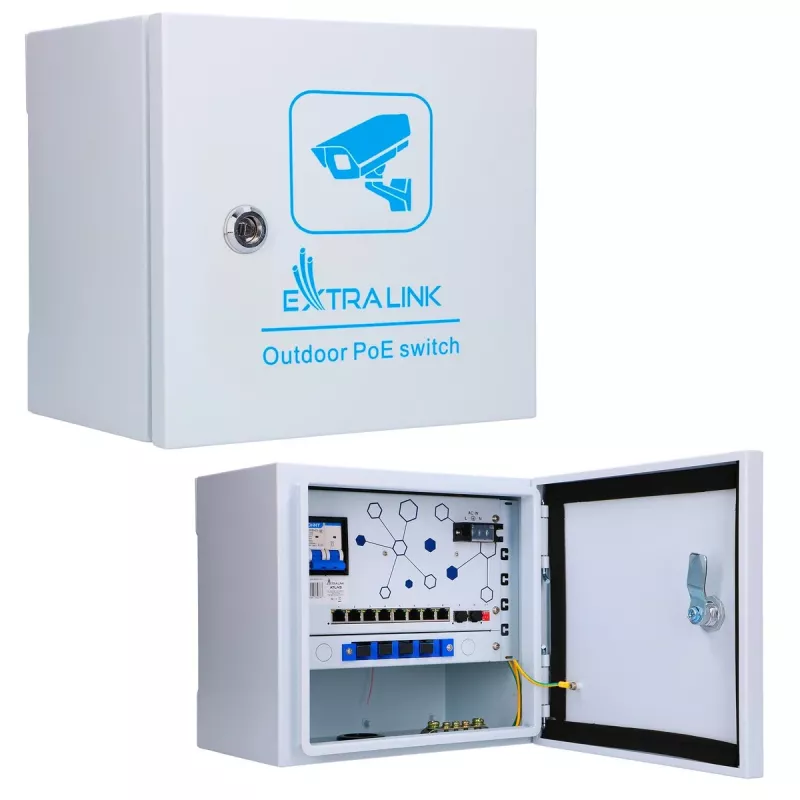

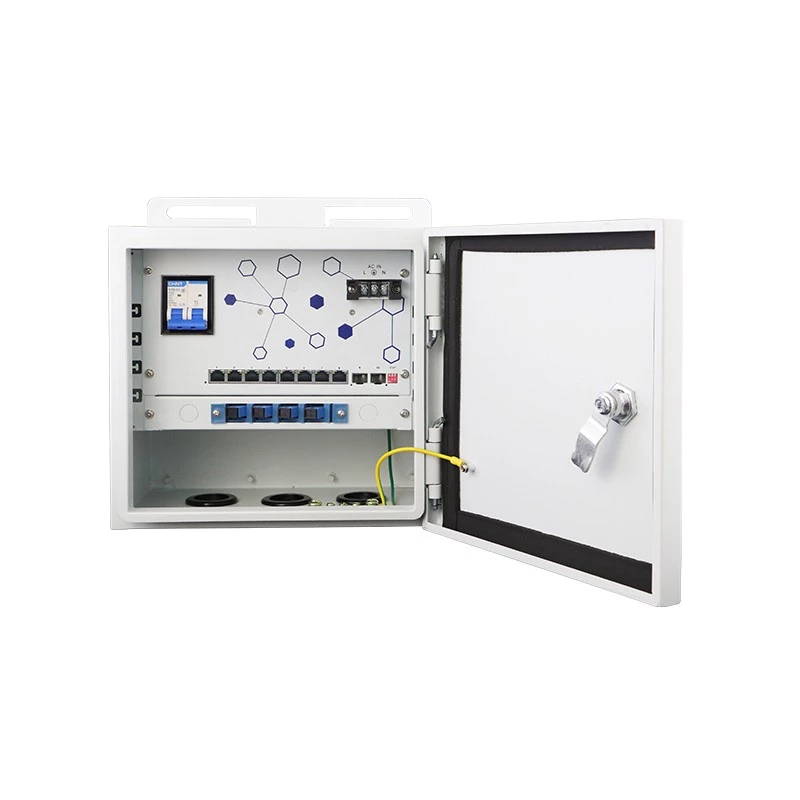

Extralink Atlas is an outdoor Gigabit PoE switch designed to provide stable network connectivity in external environments. It features eight 10/100/1000 Mbps downlink ports with PoE and two 1000 Mbps SFP uplink ports, delivering reliable performance for surveillance, remote monitoring, and extending network coverage in areas such as buildings, roads, forests and parks.

Advantages

The switch supports up to 30W per PoE port and a total device power budget of up to 120W, allowing connection of PoE-powered cameras and access points. It includes VLAN port isolation (ports 1–8) for controlled communication with uplink ports and a PoE Auto-check function that verifies connected devices and restarts unresponsive units. Robust protection features include 6 kV surge protection, 6 kV contact and 8 kV air ESD protection, and an IP55-rated, corrosion-resistant housing for long-term outdoor use.

Key specifications

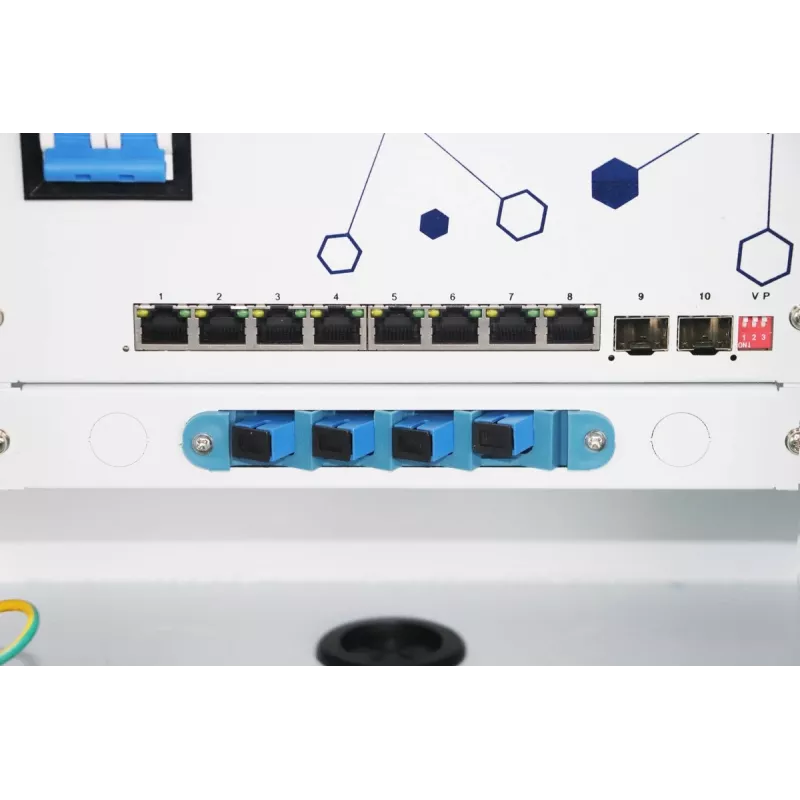

• Ports: 8 × 10/100/1000 Mbps RJ-45 (PoE downlink), 2 × 1000 Mbps SFP (uplink)
• PoE power: up to 30W per port, total PoE budget up to 120W
• VLAN: port isolation for ports 1–8
• PoE Auto-check: automatic device check and restart for unresponsive PoE devices
• Surge protection: 6 kV
• ESD protection: 6 kV (contact), 8 kV (air)
• Ingress protection: IP55 (waterproof)

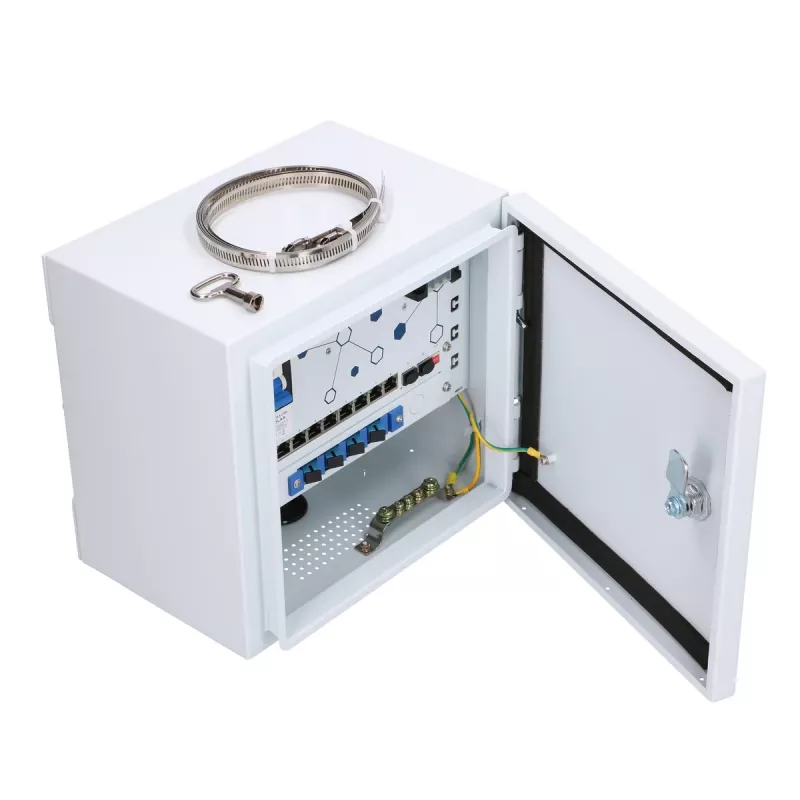

• Corrosion-resistant housing for outdoor deployment
• Switching: unmanaged L2 switch, switching capacity 20 Gbit/s
• MAC address table: 16,384 entries
• Supported cables: Cat5e, Cat6
• Quality of Service (QoS) support
• Power: AC power supply included, Power over Ethernet (PoE) supported

How to use

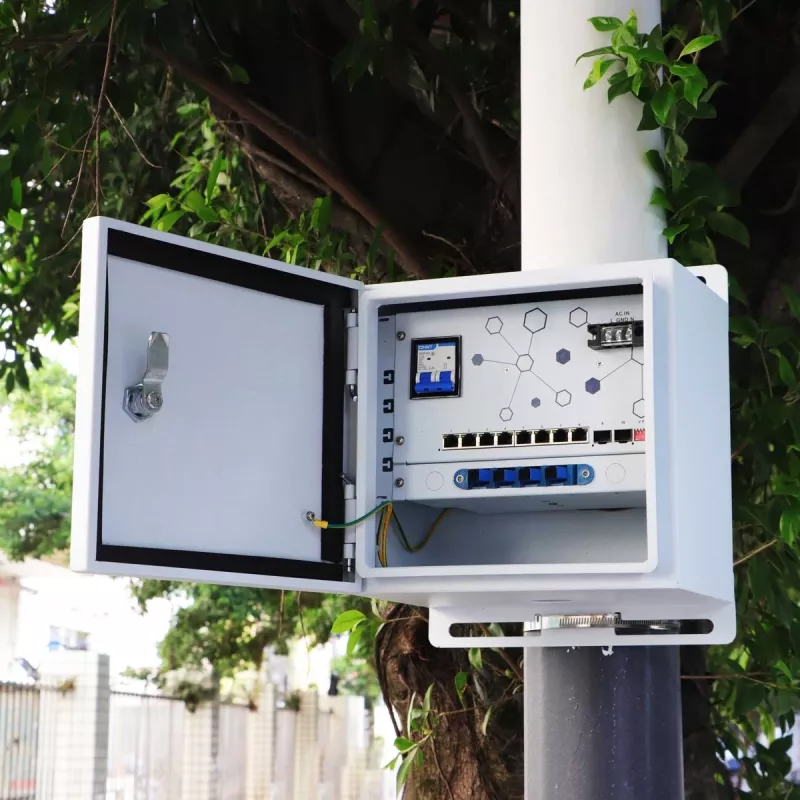

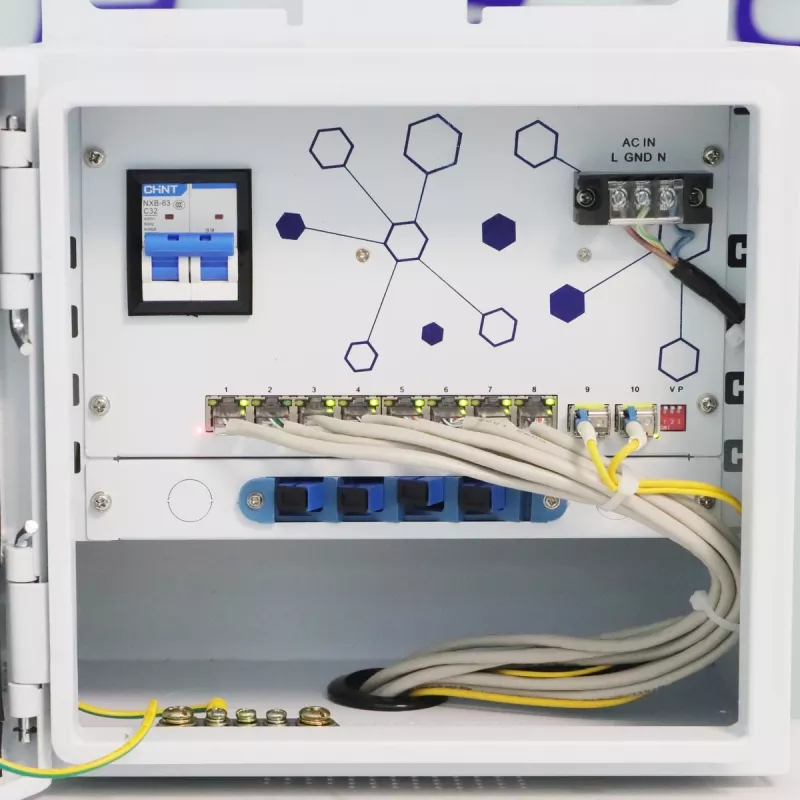

Mount the Extralink Atlas in a suitable outdoor location with adequate ventilation and secure grounding. Connect uplink(s) via the SFP ports to your backbone or router, then plug PoE-powered devices into the RJ-45 PoE ports. Configure device placement and cabling to respect the PoE budget (30W per port, 120W total). Use VLAN port isolation where required to restrict traffic between edge ports and allow communication only with uplinks. The PoE Auto-check feature runs automatically to monitor and restart unresponsive PoE devices.

Recommendations

For reliable long-term operation, use quality Cat5e or Cat6 cables and ensure the unit is installed with proper grounding and surge protection at the power source. Verify total PoE power consumption of connected devices to avoid exceeding the 120W budget, and place the switch where IP55 protection is sufficient—avoid full submersion or extremely corrosive environments.
