Unmanaged Switch Digitus 8-Port Gigabit + 2 Gigabit SFP

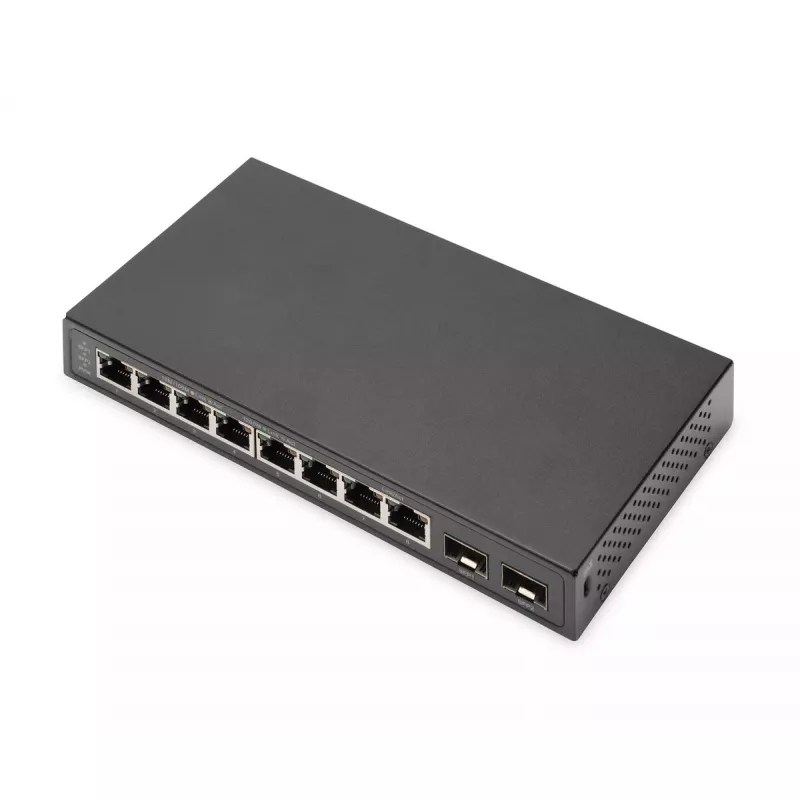

The Digitus Unmanaged Switch DN-80067 provides eight 10/100/1000 Mbps RJ45 ports and two Gigabit SFP slots in a compact, fanless metal enclosure. With a switching capacity of 20 Gbps and compliance with IEEE 802.3 family standards, this plug-and-play switch is intended for small and medium office or home networks that require reliable wired connectivity without configuration.

Advantages

This unmanaged switch offers gigabit performance on eight copper ports plus two SFP uplinks for fiber or long-reach connections. The fanless design ensures silent operation while the metal housing adds durability. Front-panel LEDs indicate link, activity and speed for easy status checks. The device supports desktop placement or wall mounting for flexible installation.

Suitable for

• Small office LAN expansion
• Home network gigabit connectivity
• Connecting switches, servers or NAS via SFP uplinks
• Workgroups requiring simple, unmanaged networking

Key specifications

• Ports: 8 x RJ45 10/100/1000 Mbps
• SFP: 2 x Gigabit SFP slots (100/1000 Mbps compatible)
• Switching capacity: 20 Gbps
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
• MAC address table: 4000 entries
• Power input: 5 V DC
• Enclosure: metal, fanless (airflow cooling)
• Indicators: LEDs for link/activity/speed
• Dimensions/weight: approx. 0.378 kg

How to use

Place the switch on a desktop or mount it on a wall, connect the power supply, then attach Ethernet cables from devices to the RJ45 ports. Install SFP modules into the SFP slots if fiber or other SFP-based links are required. The switch is unmanaged and operates automatically—LEDs on the front panel show link status and speed to assist with basic troubleshooting.

Recommendations

Install the switch in a well-ventilated area to ensure passive cooling, use category 5e or better Ethernet cables for gigabit links, and match SFP module types at both ends of fiber connections for compatibility.
