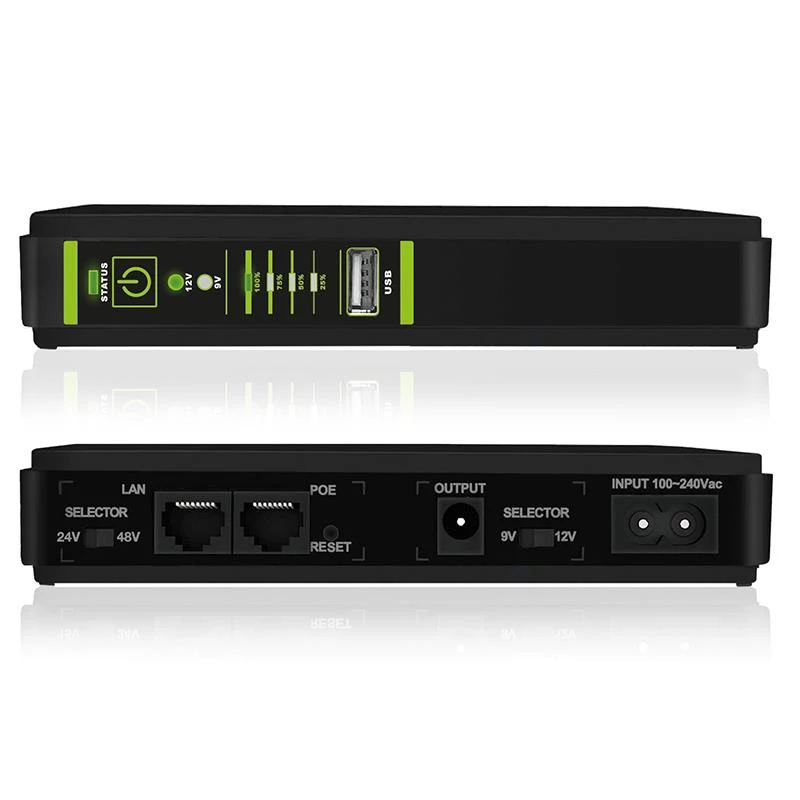

Uninterruptible Power Supply UPS Tecnoware FGCERAPLDC252 18 W Lithium-Ion

The Tecnoware FGCERAPLDC252 is a compact standby uninterruptible power supply (UPS) designed for DC-powered equipment and USB-charged devices. It integrates 8,800 mAh lithium‑ion batteries and delivers DC outputs for 9 V and 12 V devices, PoE outputs for 24 V and 48 V equipment, plus a 5 V USB port. The unit offers blackout protection and includes overvoltage and undervoltage protection. Its DC technology operates silently and the enclosure measures 160 x 28 x 105 mm with a weight of 0.5 kg.

Advantages

The UPS provides continuous power to networking and small electronic devices, combining multiple DC voltage outputs and a USB charging port in one compact unit. Built‑in protections guard connected equipment from voltage extremes, while the On/Off button with integrated multifunction LED gives a clear status indication. The lithium‑ion battery chemistry keeps the device lightweight and suitable for installation near routers, modems or cameras.

Suitable for

• Wi‑Fi access points and wireless routers
• Modems and home networking equipment
• VoIP adapters and small PBX devices
• Network cameras and surveillance modules
• Charging tablets, smartphones, Bluetooth headphones and smartwatches

Key specifications

• Model: Tecnoware FGCERAPLDC252
• Battery: 8,800 mAh Lithium‑Ion
• Output power: 18 W
• DC outputs: 9 VDC / 12 VDC
• PoE outputs: 24 VDC / 48 VDC
• USB output: 5 VDC
• Protection: blackout, overvoltage and undervoltage protection
• Dimensions (W×H×D): 160 × 28 × 105 mm
• Weight: 0.5 kg
• Product colour: Black
• IP rating: IP20

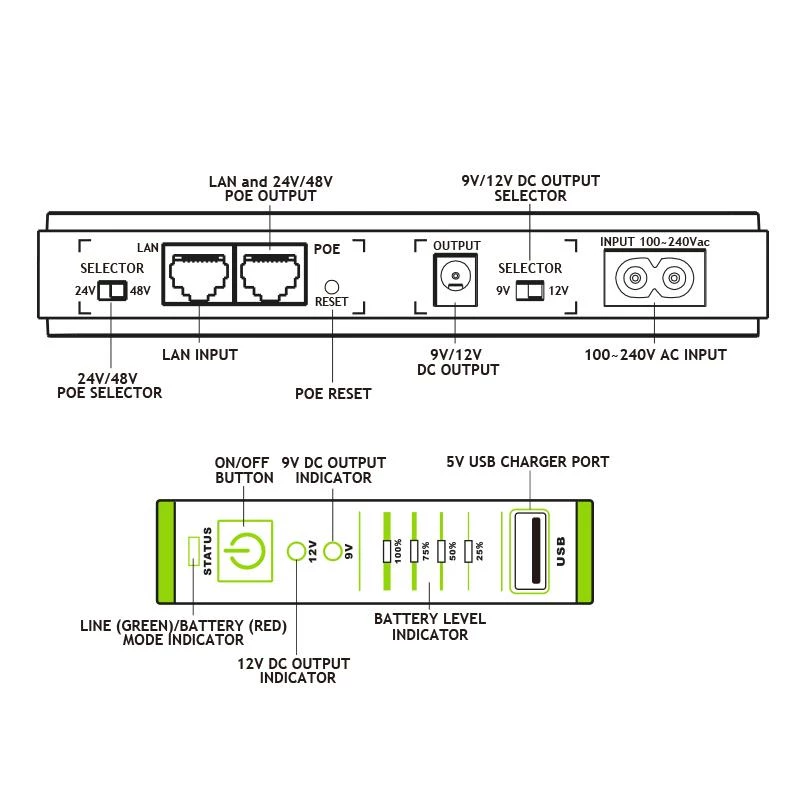

How to use

Connect the UPS input to a suitable DC supply following the manufacturer’s instructions. Plug the target device into the appropriate DC or PoE output, or use the 5 V USB port to charge mobile devices. Turn the unit on with the On/Off button; the integrated multifunction LED will indicate operating status and battery conditions. Ensure battery is charged before relying on backup operation.

Recommendations

Install the UPS in a dry, ventilated location away from direct heat sources. Use the specified output voltages for compatible devices only and check device power requirements before connection. Periodically verify battery charge and LED status to ensure reliable backup when needed.
