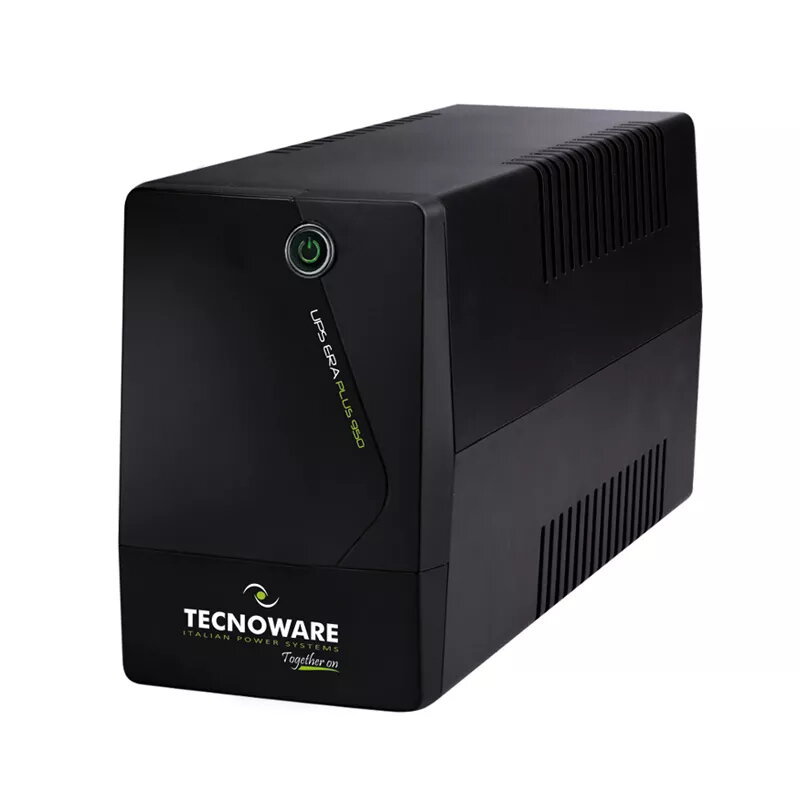

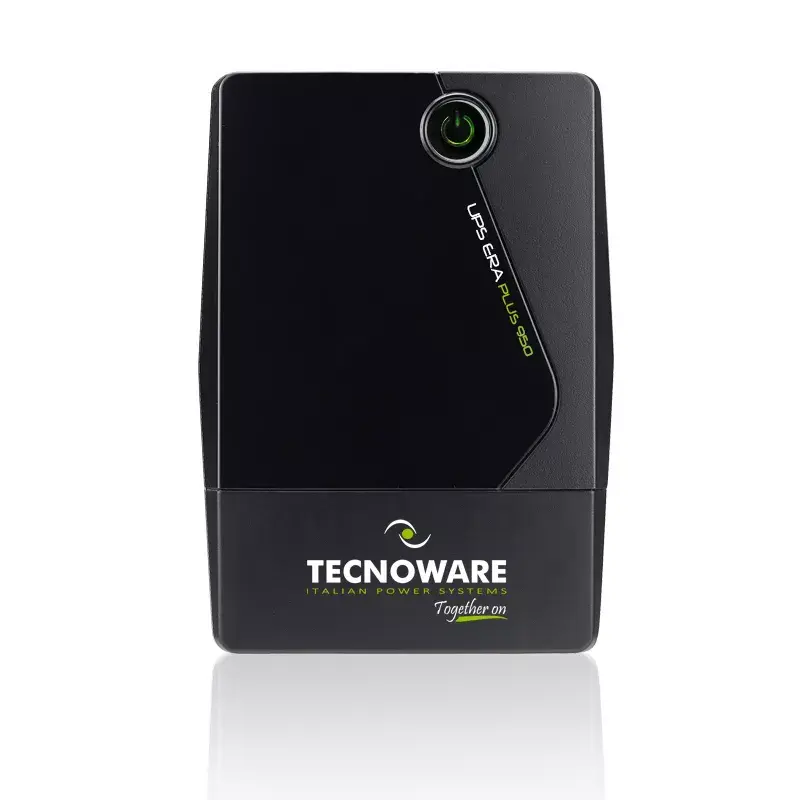

Uninterruptible Power Supply Tecnoware Era Plus 950 0.95 kVA 665 W 2 AC outlets

The Tecnoware Era Plus 950 is a Line-Interactive UPS providing 0.95 kVA (665 W) of output power with an internal sealed lead-acid (VRLA) 12 V 7 Ah battery. It is compact (10 x 14 x 28 cm), weighs 4.2 kg and offers two SCHUKO AC outputs protected against blackouts, overvoltages and undervoltages. The unit includes a fixed SCHUKO input cable, an On-Off button with integrated multifunction LED and an audible alarm that indicates the operating status. Designed for quiet operation, it is suitable for protecting PCs, office equipment, DVRs for video surveillance, ADSL/fiber modems and routers, and cash registers.

Advantages

The Line-Interactive Plus technology ensures voltage regulation and battery backup during mains disturbances while keeping a compact footprint. Built-in protection for overvoltage and undervoltage events plus two protected SCHUKO outlets provide reliable continuity for small office and home devices. The integrated LED and audible alarm allow quick status checks and fault indication. Compliance with CE and RoHS standards supports safety and environmental requirements.

Suitable for

• Desktop PC and office workstation protection
• DVRs and small video surveillance systems
• ADSL/Fiber modems and routers
• Cash registers and POS terminals

Key specifications

• Output power capacity: 0.95 kVA (665 W)
• Battery: 12 V, 7 Ah sealed lead-acid (VRLA)

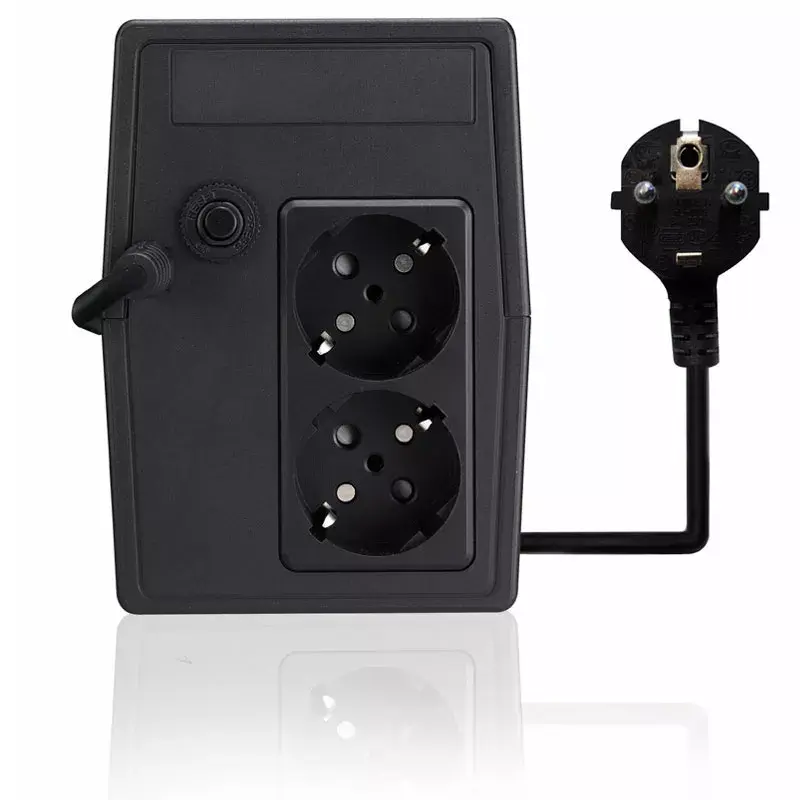

• AC outlets: 2 SCHUKO outputs
• Input: fixed SCHUKO cable
• Dimensions: 10 x 14 x 28 cm
• Weight: 4.2 kg
• Technology: Line-Interactive Plus
• Certifications: CE, RoHS

How to use

Place the UPS on a stable, flat surface in a dry, ventilated area and connect the fixed SCHUKO input cable to a properly grounded mains outlet. Plug equipment to be protected into the two SCHUKO outputs. Press the On-Off button to enable the unit; the multifunction LED and audible alarm will indicate mains presence, battery operation or fault conditions. For battery backup, ensure the internal 12 V 7 Ah battery is charged before an expected outage. Follow manufacturer instructions for battery replacement and disposal.

Recommendations

For optimal battery life, keep the UPS powered continuously so the battery remains charged, avoid exposing the unit to high temperatures, and periodically test the system by simulating a power loss. Do not overload the UPS—total connected load should not exceed 665 W.
