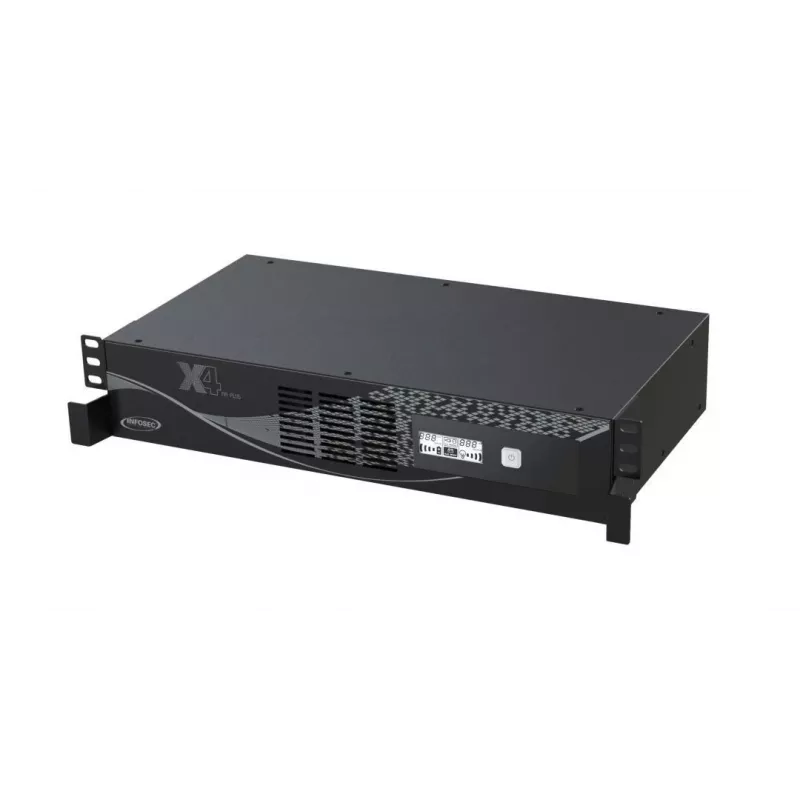

Uninterruptible Power Supply Infosec X4 600 RM Plus — 0.6 kVA (360 W), 6x Type F outlets, LCD, Rackmount

The Infosec X4 600 RM Plus is a Line-Interactive uninterruptible power supply (UPS) with 0.6 kVA (360 W) output capacity and rackmount form factor. It provides microprocessor-controlled voltage regulation and battery backup to protect connected equipment from power cuts and disturbances. The unit includes six AC outlets, a USB Type-B communication port, RJ45 protection for ADSL lines, an LCD display and an integrated sealed lead-acid battery (7 Ah) to maintain operation during outages.

Advantages

The X4 600 RM Plus delivers high-performance protection with Line-Interactive technology and microprocessor control, offering extended runtime of connected devices (up to approximately 65 minutes depending on load). Energy- and time-saving features include an integrated fast charger (reaching about 90% charge in 4 hours), automatic restart and cold-start capability, and automatic battery recharge when mains power returns. The combined functions reduce overall energy consumption compared with a conventional UPS while ensuring reliable backup and orderly shutdown via Infopower software over the USB port.

Suitable for

• Small servers and network equipment in rackmount environments
• Workstations and point-of-sale terminals requiring short-term backup
• Home office or small business ADSL routers and modems (RJ45 protected)
• Environments needing remote monitoring and automatic shutdown via USB/Infopower

Key specifications

• Output power: 360 W (0.6 kVA)

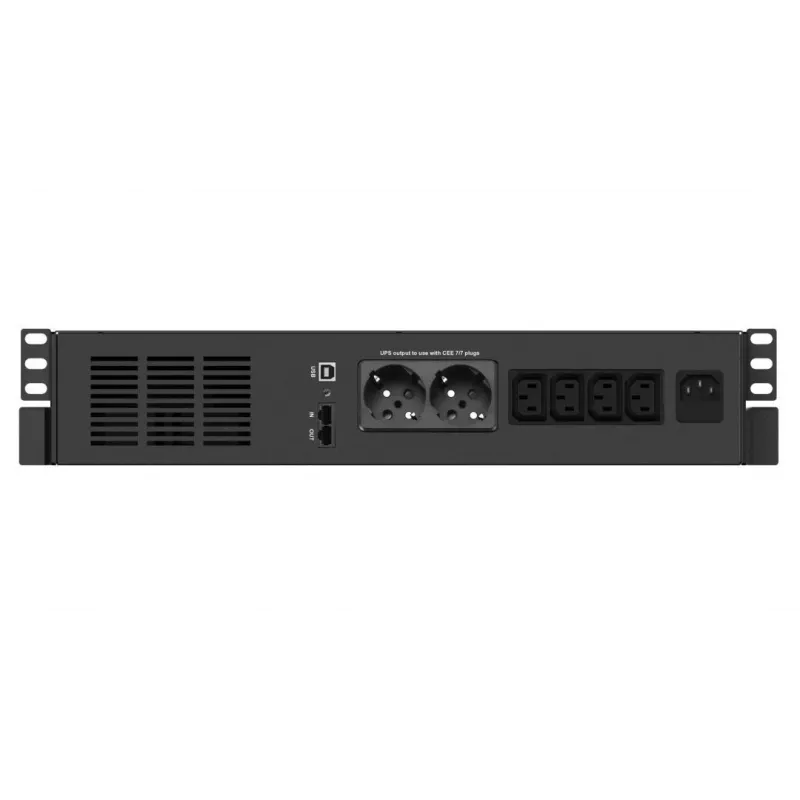

• AC outlets: 6 AC outlets (IEC and FR/SCHUKO-compatible)
• Battery type and capacity: sealed lead-acid, 7 Ah
• Communication: USB Type-B port; supported by Infopower software
• Protection: RJ45 ADSL line protection
• Form factor and weight: rackmount; 6.5 kg

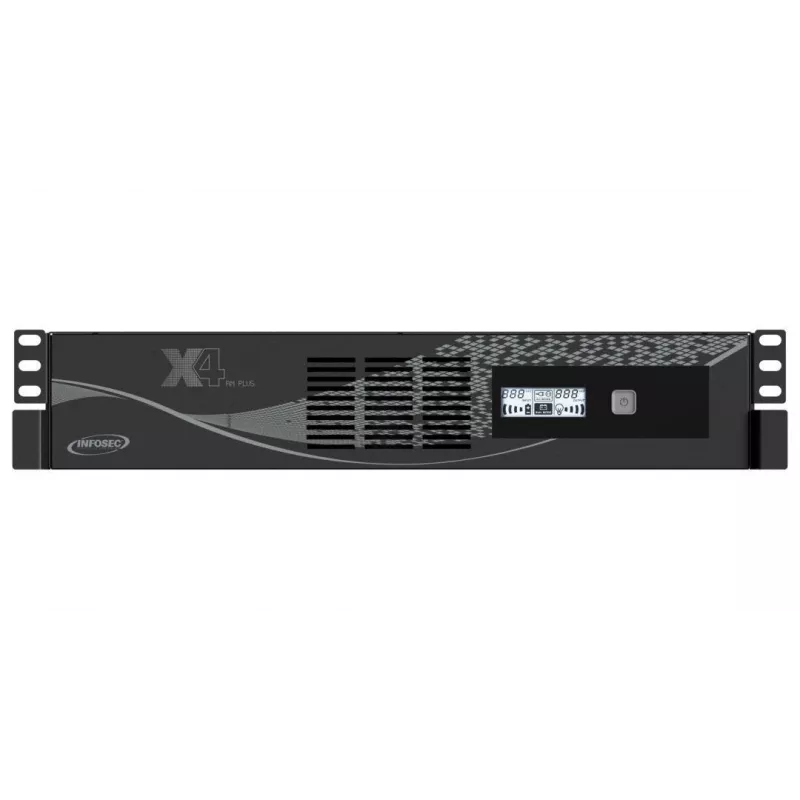

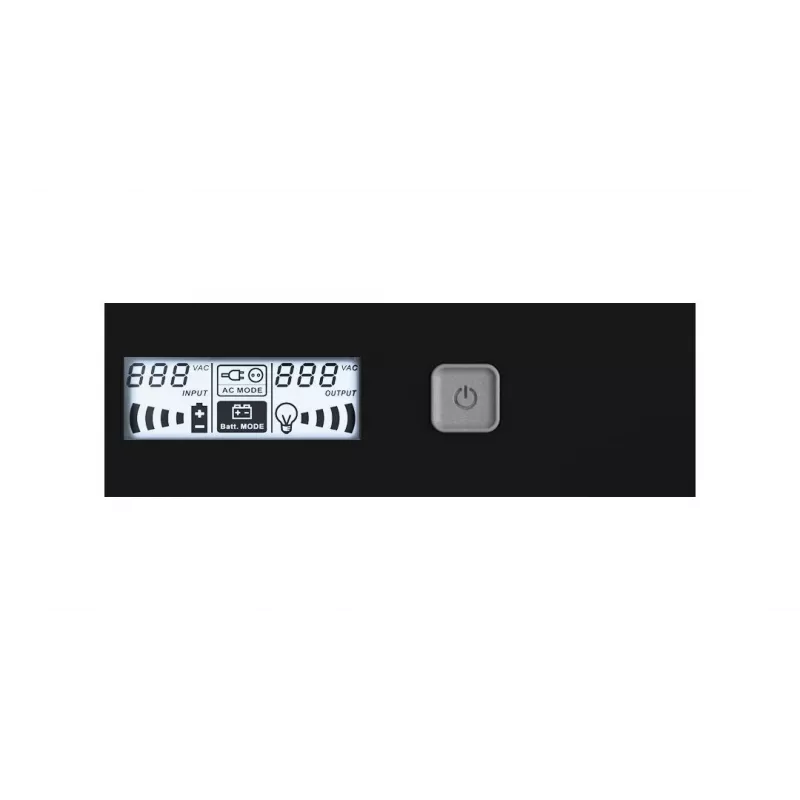

• Display and controls: LCD display and on/off switch
• Color: Black

How to use

Install the X4 600 RM Plus in a compatible 19-inch rack or place it on a stable surface following the manufacturer’s mounting instructions. Connect critical equipment to the six AC outlets and connect the UPS to the mains. Use the LCD display to monitor status and settings. For remote monitoring and automated shutdown, connect the USB Type-B port to a computer with the Infopower software installed and configure the shutdown parameters. When mains power is lost, the UPS will supply battery power; when power is restored the unit will automatically recharge the battery and can restart connected equipment if configured to do so.

Recommendations

Use the UPS in a well-ventilated indoor environment, avoid exposure to moisture and temperatures outside the manufacturer’s specified range, and ensure periodic battery checks. Test the automatic shutdown configuration with the Infopower software and allow the battery to fully recharge after a discharge to preserve battery life.
