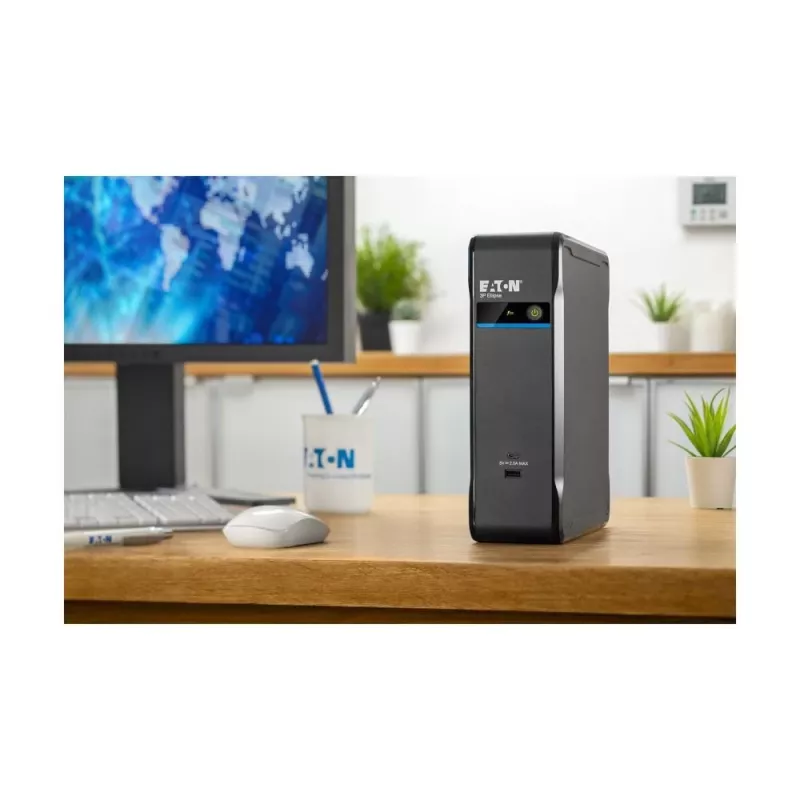

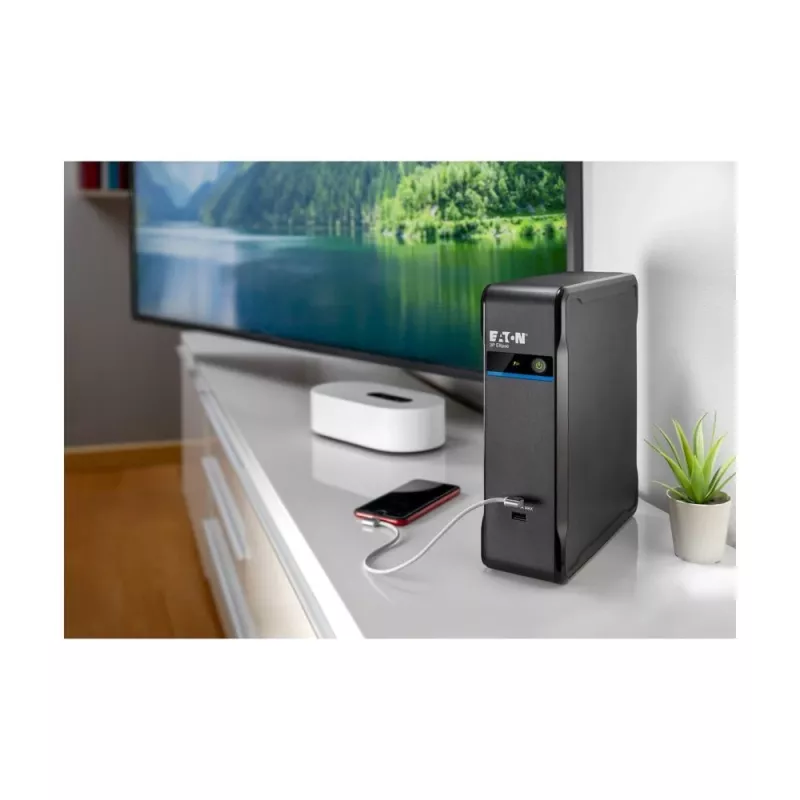

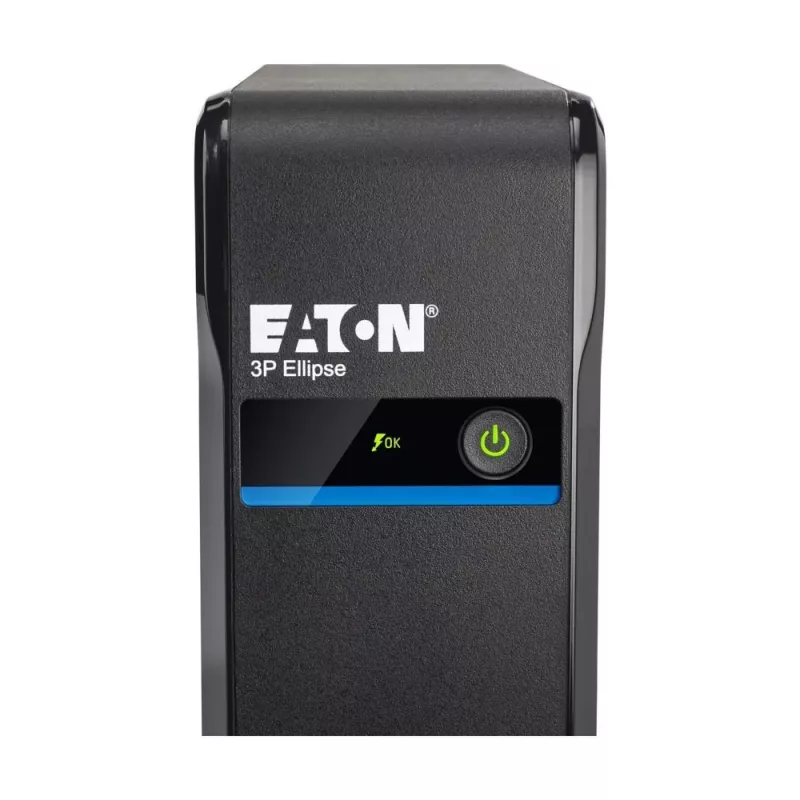

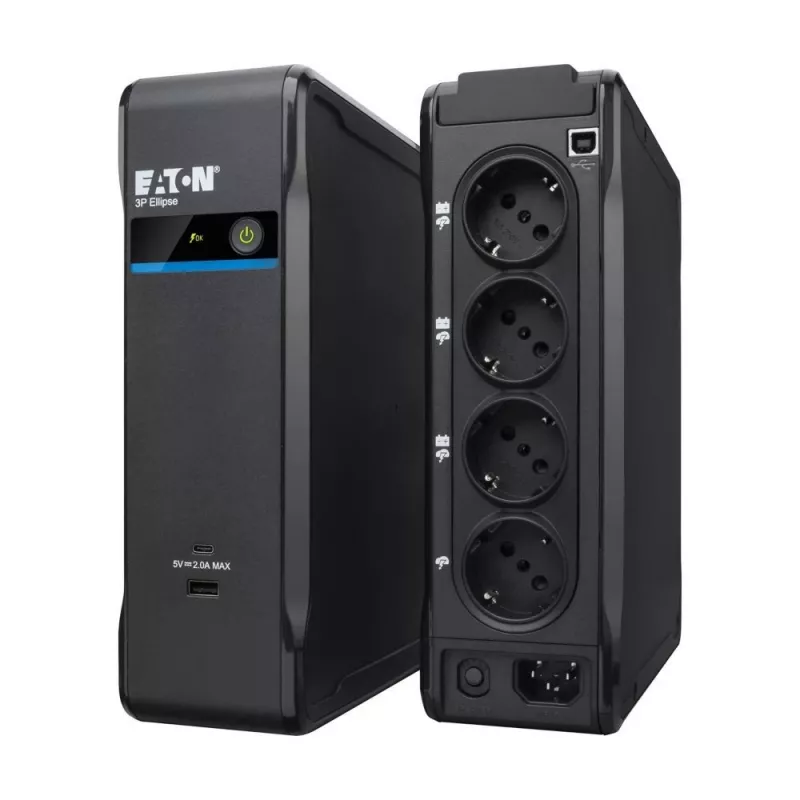

Uninterruptible Power Supply EATON 3P ELLIPSE 700 USB DIN 3P700UD 700VA 3-phase

EATON 3P ELLIPSE 700 USB DIN 3P700UD is a 700VA uninterruptible power supply designed for three-phase electrical systems. It provides short-term battery backup and voltage regulation to protect critical equipment from outages, sags, surges and other supply anomalies. Fitted with USB and DIN communication ports, the unit supports graceful shutdown and monitoring of connected devices in small commercial environments where three-phase power is present.

Advantages

The UPS offers reliable short-duration backup with automatic transfer to battery power during mains failure, plus built-in voltage regulation to smooth out minor fluctuations without switching to battery. Compact three-phase design makes it suitable for installations with limited space while still supporting multiple loads. Communication interfaces enable system integration and safe shutdown procedures for servers, network devices and telecom equipment.

Suitable for

• Small commercial installations with three-phase supply
• Network closets and edge server cabinets
• Telecom equipment and network devices requiring managed shutdown
• Point-of-sale systems and control equipment in industrial or retail sites

Key specifications

• Rated output power: 700 VA
• Input/output configuration: three-phase
• Communication ports: USB and DIN for monitoring and control
• Backup type: short-term battery backup for safe shutdown
• Voltage regulation: automatic voltage stabilization for minor fluctuations
• Form factor: compact unit designed for small equipment rooms

How to use

Install the UPS on a stable surface or mounting location in proximity to the protected equipment and to the three-phase supply. Connect input feed according to local wiring regulations and the equipment’s installation instructions, then connect critical loads to the UPS output. Use the USB or DIN port to link to a monitoring device or host system and configure automatic shutdown settings on connected equipment or management software. Regularly verify battery condition and run self-test procedures after installation to confirm correct operation.

Recommendations

Place the unit in a ventilated environment free from excessive dust, moisture and direct heat sources. Schedule periodic battery checks and allow the UPS to perform self-tests; replace batteries according to manufacturer guidance or when runtime no longer meets operational needs. Ensure the connected equipment’s power draw remains within the specified 700 VA rating to avoid overload and maintain expected backup time.
