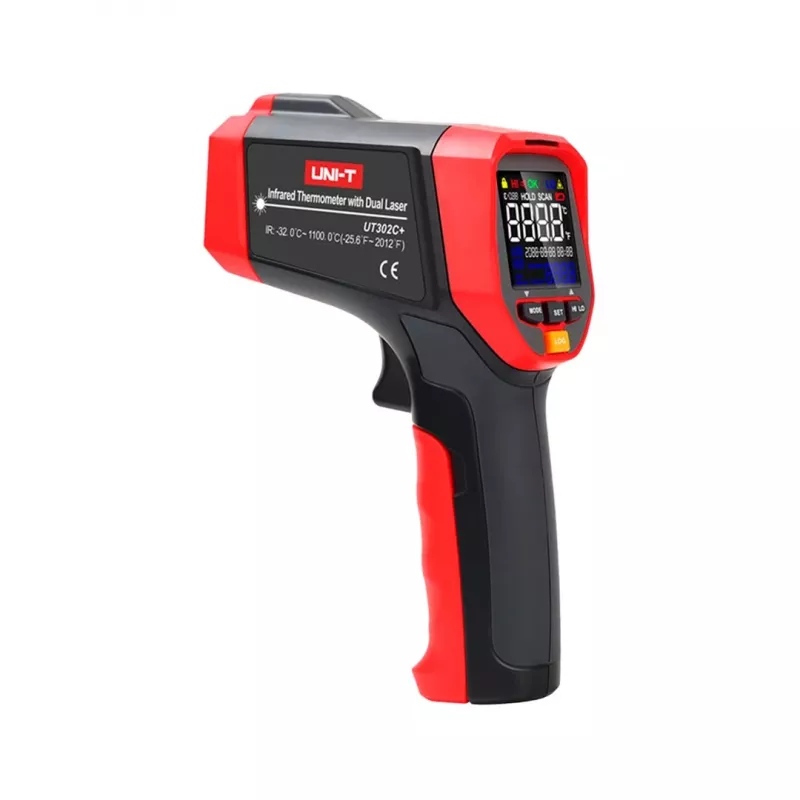

UNI-T UT302C+ Infrared Thermometer -32°C to 1050°C 20:1 D:S Laser

The UNI-T UT302C+ is a professional infrared thermometer designed for non-contact temperature measurement across a wide range of industrial and commercial applications. With a temperature range of -32°C to 1050°C and a 20:1 distance-to-spot ratio, it delivers accurate readings from a safe distance. The adjustable emissivity and fast response time make it ideal for troubleshooting electrical systems, HVAC, automotive diagnostics, and more.

Advantages

Non-contact measurement ensures safety when measuring hot, moving, or hard-to-reach objects. The built-in laser pointer helps target the exact spot, while the backlit LCD display ensures readability in low-light conditions. Data hold, max/min/avg/diff functions, and high/low alarms provide comprehensive analysis capabilities.

Suitable for

• Electrical maintenance and troubleshooting
• HVAC system diagnostics
• Automotive engine and exhaust temperature checks
• Industrial process monitoring
• Food safety and surface temperature verification

Key specifications

• Temperature range: -32°C to 1050°C (-25.6°F to 1922°F)
• Accuracy: ±1.8°C or ±1.8% (whichever greater, >0°C); ±(1.8°C + 0.1°C/°C) for <0°C
• Distance to spot ratio (D:S): 20:1
• Emissivity: Adjustable 0.10 to 1.00
• Response time: <250ms
• Spectral response: 8μm to 14μm
• Laser: Class 2, single laser pointer
• Display: Backlit LCD
• Measurement units: Celsius and Fahrenheit
• Functions: Data hold, max/min/avg/diff, high/low alarm, auto power off
• Power supply: 9V battery (6F22)
• Operating temperature: 0°C to 50°C (32°F to 122°F)
• Humidity: <90% RH non-condensing
• Drop test: 1m
• Tripod mount: Yes

Recommendations

For best results, ensure the target surface is clean and within the specified distance. Adjust emissivity for reflective surfaces. Always use the laser pointer safely and avoid direct eye exposure. The UT302C+ is a reliable tool for professionals seeking precise non-contact temperature measurement.
