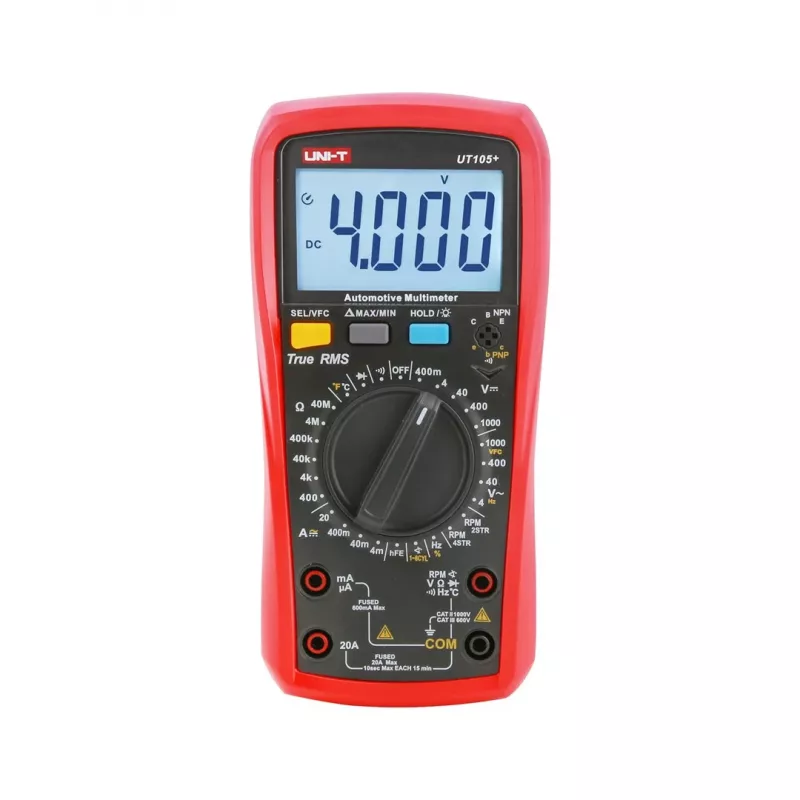

UNI-T UT105+ Automotive Digital Multimeter with True RMS, 6000 Counts, CAT III 600V

UNI-T UT105+ Automotive Digital Multimeter with True RMS, 6000 Counts, CAT III 600V
UNI-T UT105+ Automotive Digital Multimeter with True RMS, 6000 Counts, CAT III 600V
R773
The UNI-T UT105+ is a professional-grade digital multimeter engineered for automotive diagnostics and general electronics, delivering True RMS accuracy across a 6000-count display. With a CAT III 600V safety rating and a wide array of measurement functions including RPM, dwell angle, and pulse width... Read More
Stock 30 Code 3358372 Brand UNI-T Model MIE0465 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The UNI-T UT105+ is a professional-grade digital multimeter engineered for automotive diagnostics and general electronics, delivering True RMS accuracy across a 6000-count display. With a CAT III 600V safety rating and a wide array of measurement functions including RPM, dwell angle, and pulse width, it is an indispensable tool for technicians and serious hobbyists.

Overview

Built on UNI-T's legacy of reliable test instruments, the UT105+ combines robust construction with advanced functionality. It measures AC/DC voltage up to 1000V/750V, AC/DC current up to 10A, resistance up to 60MΩ, capacitance up to 100mF, frequency up to 10MHz, and temperature from -40°C to 1000°C. Auto ranging and a clear backlit display ensure ease of use in any environment.

What stands out

  • True RMS for accurate readings on non-sinusoidal waveforms
  • Special automotive functions: RPM, dwell angle, and pulse width
  • CAT III 600V and CAT II 1000V safety ratings
  • 6000-count display with backlight for low-light conditions
  • Data hold, diode test, and continuity buzzer

Technical details

  • Display count: 6000
  • DC voltage: 1000V
  • AC voltage: 750V
  • DC current: 10A
  • AC current: 10A
  • Resistance: 60MΩ
  • Capacitance: 100mF
  • Frequency: 10MHz
  • Temperature: -40°C to 1000°C (-40°F to 1832°F)
  • Power: 9V battery (6F22)
  • Dimensions: 190mm x 90mm x 50mm (approx.)
  • Weight: 350g (approx.)

Our verdict

The UNI-T UT105+ delivers exceptional value for automotive professionals and electronics enthusiasts alike. Its specialized automotive functions and high safety ratings make it a versatile and reliable companion for demanding diagnostic tasks.

Specifications
AC current range
10A
AC voltage range
750V
Backlight
Yes
Battery type
9V
Battery voltage
9V
Brand
UNI-T
Capacitance range
100mF
Category
Multimeter
DC current range
10A
DC voltage range
1000V
Diode test
Yes
Display
Digital
EAN
5901890077972
Frequency range
10MHz
Measuring category
CAT III 600V, CAT II 1000V
Model
UT105+
MPN
MIE0465
Number of batteries supported
1
Power source
Battery
Product type
Digital multimeter
Resistance range
60MΩ
Temperature measurement range
-40°C to 1000°C
Weight
0.52 kg
Price history over the last 6 months
UNI-T UT105+ Automotive Digital Multimeter with True RMS, 6000 Counts, CAT III 600V
Current
R773
Lowest
R701
Highest
R773
Change 24H
+R66   +9%
Week
+R72   +10%
Month
—
