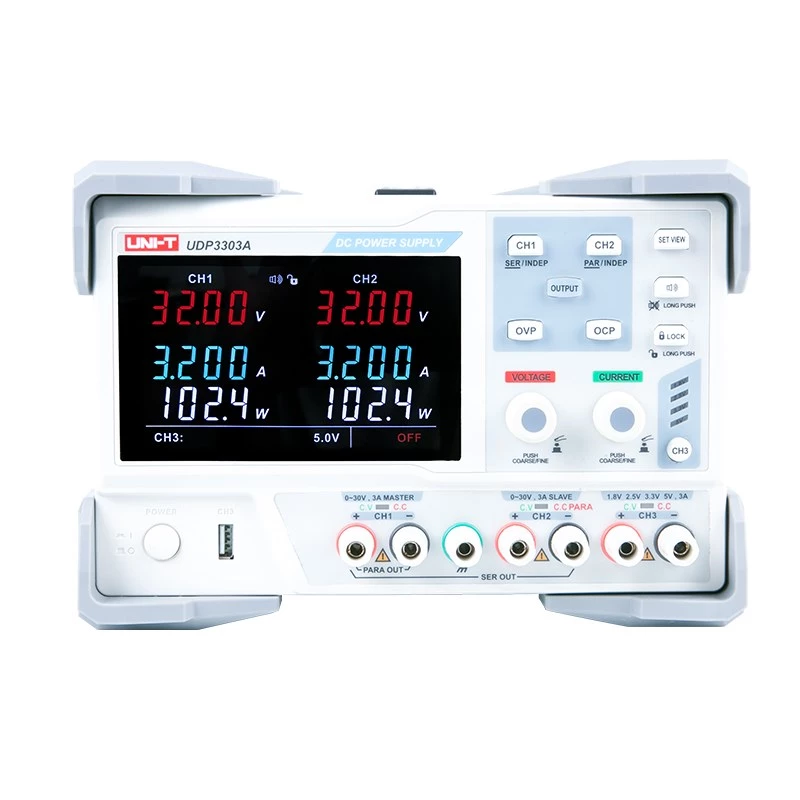

UNI-T UDP3303A Programmable DC Power Supply 3-Channel 195W

The UNI-T UDP3303A is a high-precision programmable DC power supply featuring three independent output channels (two adjustable 0-30V/0-3A and one fixed 2.5V/3.3V/5V/3A). With a total power of 195W, it is ideal for laboratory, educational, and industrial applications requiring stable and accurate voltage/current sourcing.

Advantages

Equipped with a 4.3-inch TFT LCD display for clear readouts, the UDP3303A offers excellent load regulation (≤0.01%+3mV for voltage, ≤0.1%+3mA for current) and low ripple/noise (≤1mVrms voltage, ≤3mArms current). It includes comprehensive protection features (OVP, OCP, OTP) and supports remote sensing, list mode, timer functions, and output ON/OFF control. The unit can be programmed via USB or LAN (GPIB optional).

Suitable for

• Laboratory testing and development
• Educational electronics labs
• Service and repair workshops
• Battery charging and simulation

Key specifications

• Number of Channels: 3 (2 adjustable, 1 fixed)
• Adjustable Output Voltage (CH1/CH2): 0-30V
• Adjustable Output Current (CH1/CH2): 0-3A
• Fixed Output Voltage (CH3): 2.5V / 3.3V / 5V (selectable)
• Fixed Output Current (CH3): 3A
• Total Output Power: 195W
• Display: 4.3-inch TFT LCD
• Voltage Resolution: 10mV
• Current Resolution: 1mA
• Programming Accuracy (Voltage): ≤0.03%+10mV
• Programming Accuracy (Current): ≤0.1%+5mA
• Ripple & Noise (Voltage): ≤1mVrms
• Ripple & Noise (Current): ≤3mArms
• Protection: OVP, OCP, OTP
• Interface: USB Host, USB Device, LAN (optional GPIB)
• Input Voltage: AC 100-230V ±10%, 50/60Hz
• Operating Temperature: 0°C to 40°C

Recommendations

For optimal performance, use with appropriate test leads and ensure proper ventilation. The UDP3303A is a reliable choice for precise power supply needs in professional environments.
