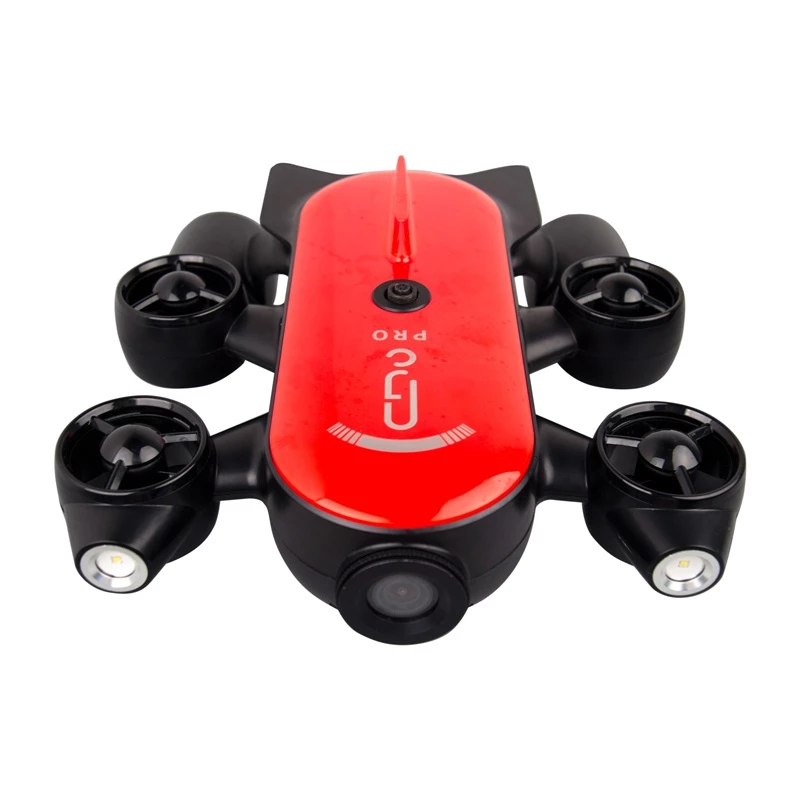

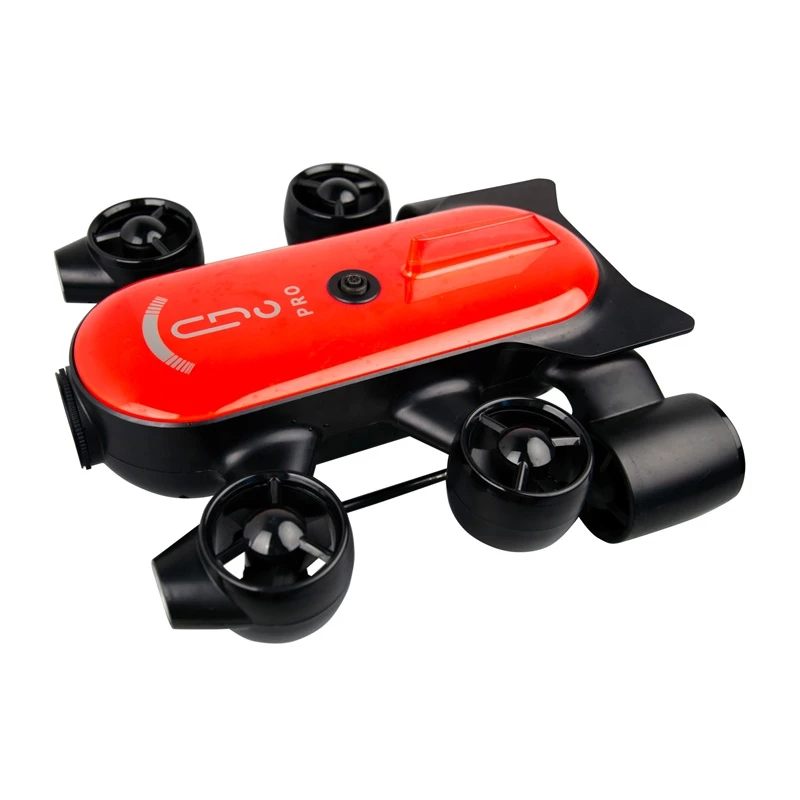

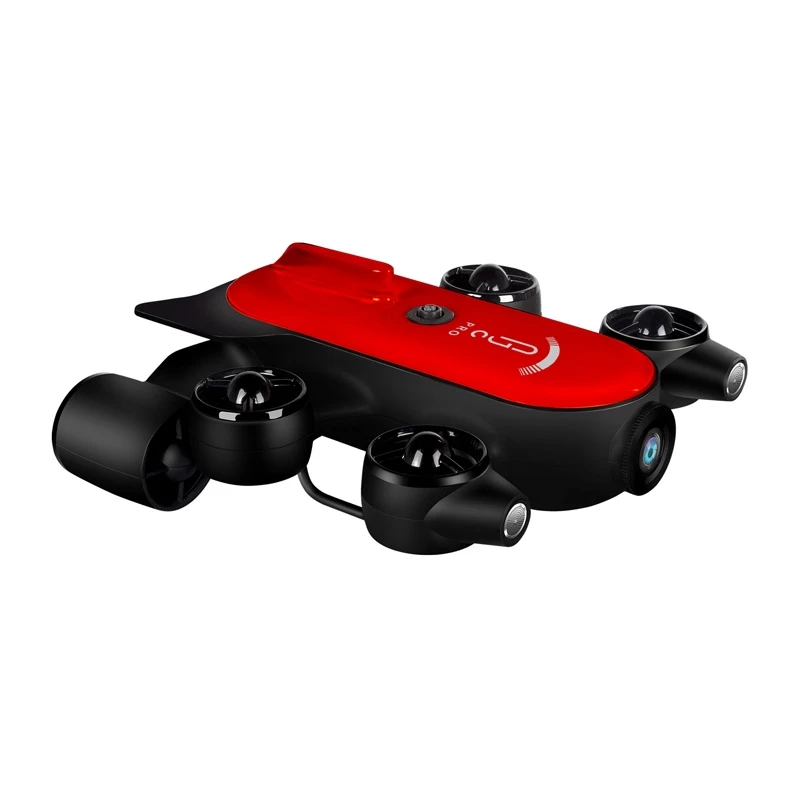

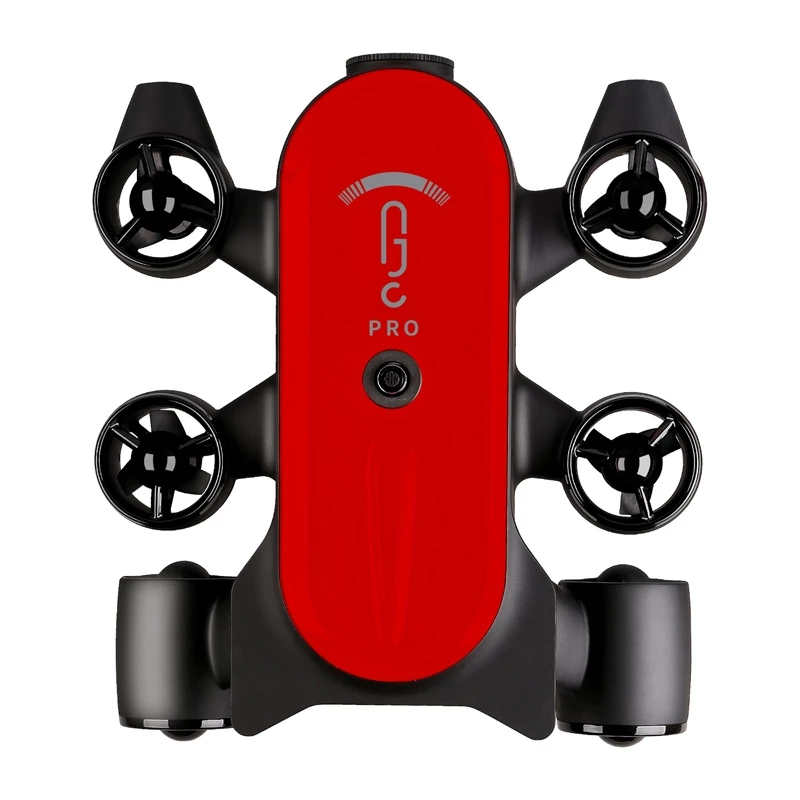

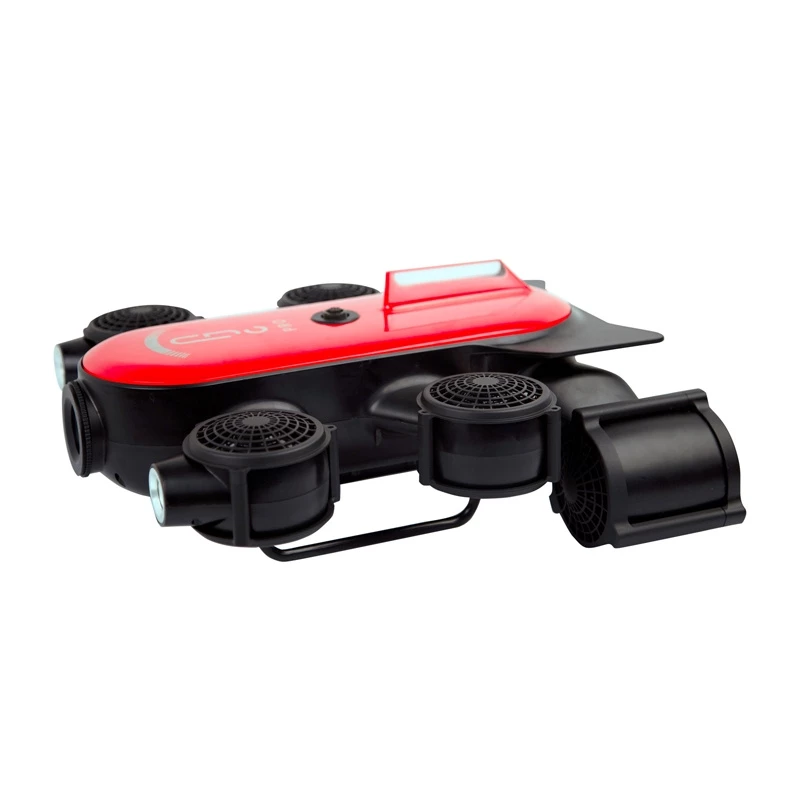

Underwater drone Geneinno T1‑Pro 150m 4K UHD — professional ROV with 150 m depth rating and 4K camera

Geneinno T1‑Pro 150m 4K UHD underwater drone — professional ROV with 150 m depth rating and 4K camera. The Geneinno T1‑Pro is a remotely operated underwater vehicle designed for professional inspection, research and filming tasks. It is rated for dives to 150 m, features a 4K UHD camera with wide 160° field of view and EIS anti‑shake, and includes sensors and controls for stable, precise maneuvering even in currents up to 4 knots. Note: any grapple shown in photos is not included.

Advantages

The T1‑Pro combines a 4K SONY‑based sensor (12 MP photos, 4000×3000 at 30 fps) with EIS anti‑shake and RAW/DNG support for advanced post‑processing. It provides precise navigation using a 6‑axis IMU and 3‑axis compass, a depth sensor with ±0.05 m accuracy and a temperature sensor with ±0.5 °C precision. Two 1500‑lumen LEDs (4500 K) ensure natural colour reproduction, and a robust 4.5 mm cable with 200 m standard length and 100 kg working strength supports extended operations. The 9000 mAh battery delivers up to 4 hours of continuous operation and charges in about 3 hours.

Suitable for

• Hull and propeller inspections
• Wreck and structure surveys
• Aquaculture and fish farm monitoring
• Scientific seabed and habitat research
• Underwater filming and content capture

Key specifications

• Manufacturer: Geneinno; Model: T1‑Pro‑150M
• Maximum depth: 150 m
• Weight: 5 kg; Dimensions: 380 × 348 × 168 mm
• Camera: 1/2.3" SONY CMOS (6.17 × 4.55 mm), F2.5, 160° FOV; Photo: 12 MP (4000×3000); Video: 4K 30 fps; FHD 1080p 60 fps; formats: JPEG/RAW/DNG, MP4 (H.264/H.265)
• Memory: 128 GB; Recording time: 4–8 hours
• Battery: 9000 mAh / 97.2 Wh; Maximum dive time: up to 4 hours; Charging time: ~3 hours
• Maximum cruising speed: 2 m/s; Ascent/descent speed: 1.5 m/s; Max tilt angle: +60°
• Flow resistance: up to 4 kn; Degrees of freedom: 5 DOF (forward/back, ascent/descent, yaw, roll, tilt)
• Lights: 2 × 1500 lm, 60° beam, 4500 K
• Cable: 4.5 mm diameter, working strength 220 lb (≈100 kg), standard length 200 m
• Wireless relay: 5 GHz + 2.4 GHz Wi‑Fi, max wireless range 50 m, relay operating time >10 h, IP57
• Sensors: IMU (6‑axis gyro + accelerometer) + 3‑axis compass; depth precision ±0.05 m; temperature ±0.5 °C; tilt ±1°; yaw ±1.5°

How to use

Charge the main battery and wireless relay before deployment (approx. 3 hours). Connect the drone to the reel and cable, power on the controller and the Geneinno App on a compatible iOS/Android device, then establish Wi‑Fi connection or use the wireless relay. Use the 2.4 GHz controller or the app to pilot the ROV, monitor live video in up to 1080p and record to the onboard 128 GB memory. Monitor depth, battery level and sensor readouts during the dive. After operation, retrieve the drone using the cable reel, power down devices, and store the unit and accessories in the supplied hard case.

Recommendations

Check local regulations and sea conditions before deployment. Avoid exceeding the 150 m depth rating and verify battery and cable integrity prior to each dive. Use the provided ballast modules to adjust buoyancy and secure the reel during retrieval to prevent shock loads on the cable.
