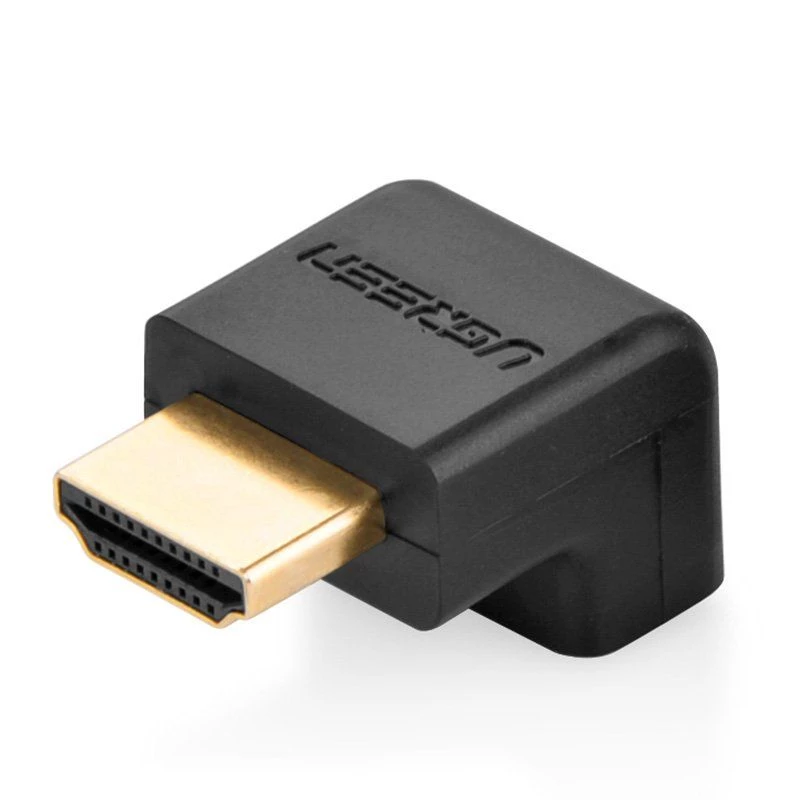

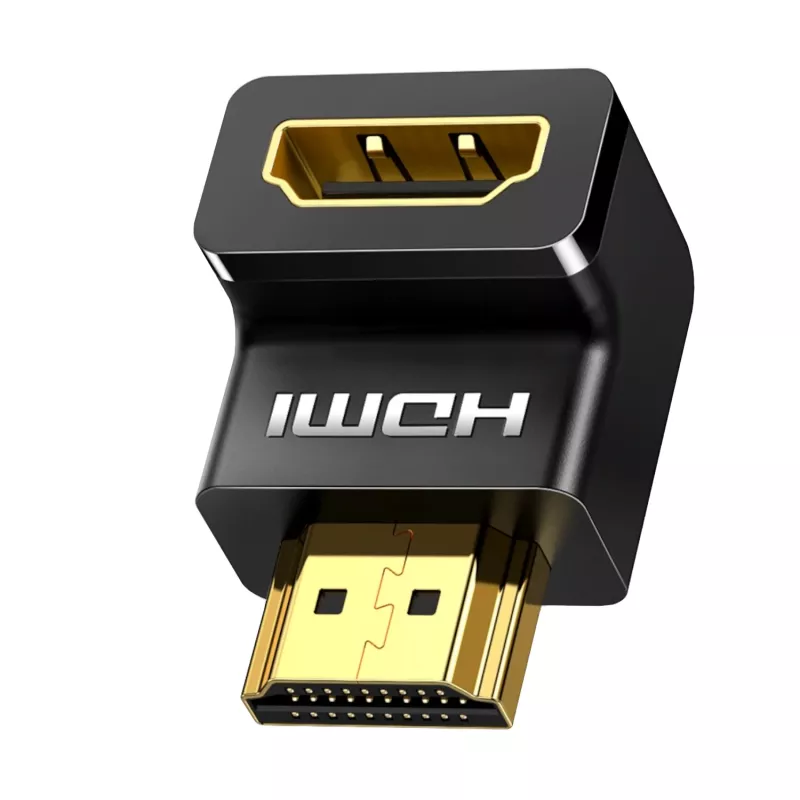

UGREEN HDMI 90 Degree Angle Adapter 4K 60Hz Downward Male to Female HD112 Black

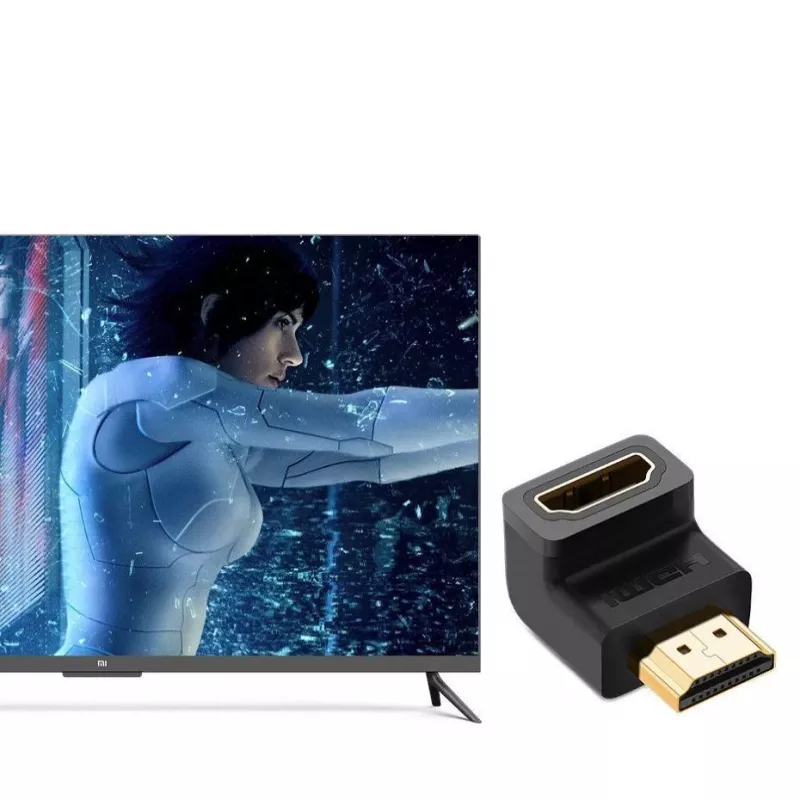

This HDMI angle adapter provides a 90-degree downward connection to solve tight-space connectivity behind wall-mounted TVs, in AV racks, and media cabinets. It supports 4K@60Hz video with 18Gbps bandwidth for flawless high-definition transmission, making it an essential accessory for modern home theater and gaming setups.

Advantages

Gold-plated connectors resist corrosion and ensure stable signal transfer. The compact PVC housing protects against interference while maintaining flexibility for tight installations. HDMI 2.0 compliance delivers 4K resolution at 60Hz, 3D video, HDR, and HDCP 2.2 for premium content protection. Audio Return Channel (ARC) and HDMI Ethernet Channel (HEC) add versatility for modern home theater setups.

Suitable for

• Wall-mounted TVs with limited clearance behind the panel
• Monitors and projectors in cramped AV racks
• Game consoles and Blu-ray players in media cabinets
• PCs and laptops requiring a right-angle HDMI connection

Key specifications

• Connector 1: HDMI Male (Type A)
• Connector 2: HDMI Female (Type A)
• Angle orientation: 90° downward (bottom exit)
• HDMI version: 2.0
• Max resolution: 4K (3840x2160) @ 60Hz
• Data transfer rate: 18 Gbps
• 3D support: Yes
• HDR support: Yes
• HDCP version: 2.2
• ARC: Yes
• HEC: Yes
• CEC: Yes
• Connector plating: Gold
• Housing material: PVC
• Colour: Black

Recommendations

For installers and home users needing a reliable right-angle HDMI solution, this adapter's downward orientation is ideal for TVs mounted close to the wall. Pair with a high-speed HDMI cable to fully utilise 4K HDR content.
