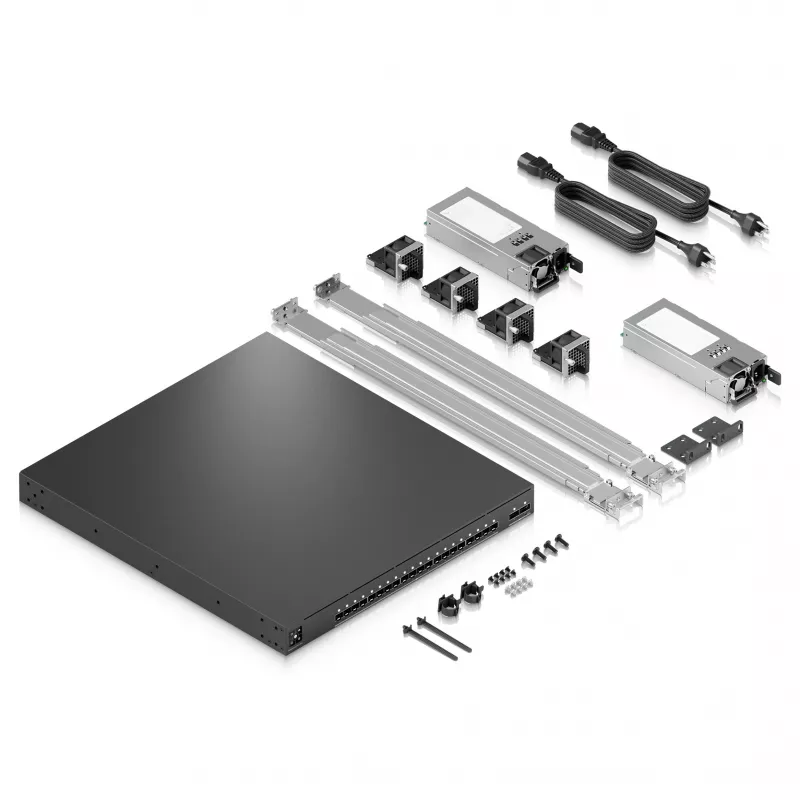

Ubiquiti UniFi EAV-Fiber 22-Port Fully Managed Layer 3 10G/100G Aggregation Switch

With a 600 Gbps switching capacity and 446.4 Mpps forwarding rate, the Ubiquiti UniFi EAV-Fiber is a high-performance aggregation switch built for demanding enterprise and AV-over-IP environments. This fully managed Layer 3 switch offers 20x 10G SFP+ ports and 2x 100G QSFP28 uplinks in a compact 1U rackmount form factor, delivering exceptional throughput for bandwidth-intensive applications.

Overview

The EAV-Fiber combines powerful hardware with advanced software features. Its dual-core ARM Cortex-A57 processor and 4 GB DDR4 memory ensure smooth operation even under heavy load. The 1.3" LCM color touchscreen provides intuitive local management, while the internal 100W AC/DC power supply supports universal AC input (100-240V). With support for static routing, OSPF, BGP, VRRP, and DHCP server, this switch is ready for complex network topologies.

What stands out

• 20x 10G SFP+ ports for high-density fiber connectivity
• 2x 100G QSFP28 ports for ultra-fast uplinks or stacking
• Full Layer 3 routing capabilities including OSPF and BGP
• 1.3" LCM color touchscreen for easy status monitoring and configuration
• Robust ESD/EMP protection (±16 kV air, ±12 kV contact)
• Jumbo frame support up to 9000 bytes for efficient large data transfers
• Dual cooling fans ensure reliable operation in temperatures from -5 to 40°C

Technical details

• Switch type: Fully Managed Layer 3
• Total ports: 22 (20x SFP+ 10G, 2x QSFP28 100G)
• Switching capacity: 600 Gbps
• Forwarding rate: 446.4 Mpps
• Form factor: 1U rackmount
• Display: 1.3" LCM color touchscreen
• Max power consumption: 70W (excluding modules)
• Power method: Universal AC input 100-240V AC
• Power supply: Internal 100W AC/DC
• Layer 3 features: Static routing, OSPF, BGP, VRRP, DHCP server
• VLAN support: 802.1Q
• Jumbo frames: Up to 9000 bytes
• Processor: ARM Cortex-A57 dual-core 1.2 GHz
• Memory: 4 GB DDR4
• Operating temperature: -5 to 40°C (23 to 104°F)
• Cooling: 2x fans
• ESD/EMP protection: Air ±16 kV, Contact ±12 kV

Our verdict

The Ubiquiti UniFi EAV-Fiber is an outstanding choice for network architects seeking a high-capacity, feature-rich aggregation switch. Its blend of 10G and 100G ports, advanced Layer 3 routing, and robust build quality makes it ideal for enterprise cores, data centers, and professional AV installations.
