Twisted pair Cable Extralink CAT6 UTP V2 Indoor 305M

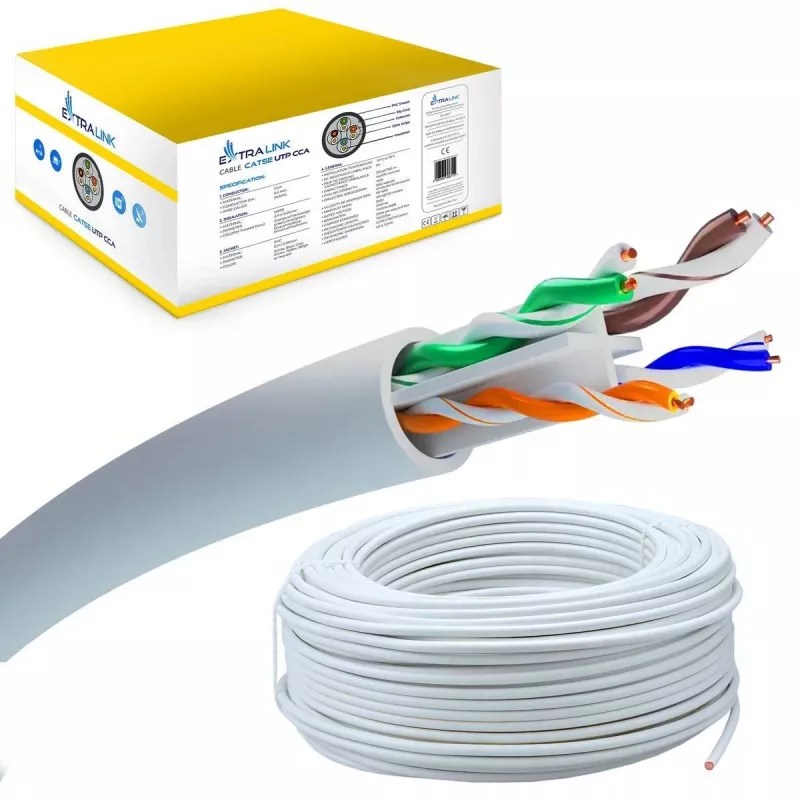

UTP Cat.6 network cable, 305 m spool. The Extralink CAT6 UTP V2 Indoor cable is a 305-meter, grey twisted-pair cable designed for indoor networking. Conductors are made of pure copper and each core is insulated with HDPE (outer conductor diameter 0.92 ± 0.03 mm). The cable also has an outer PVC sheath with a thickness of 0.50 ± 0.05 mm. The cable conforms to the Cat6 standard and uses U/UTP topology to provide high-speed data transmission with minimal interference.

Advantages

The cable uses pure copper conductors for stable signal transmission and HDPE insulation for consistent electrical performance. A PVC outer sheath increases mechanical protection for indoor installations. The product is supplied on a self-retracting roller for safer, tangle-free unwinding and easier handling during installation.

Suitable for

• Structured cabling in offices
• Home network installations
• LAN connections for computers, routers and switches
• Indoor data cabling projects requiring Cat6 performance

Key specifications

• Length: 305 m
• Category: Cat6 (UTP / U/UTP)
• Conductor material: pure copper
• Core insulation: HDPE, diameter 0.92 ± 0.03 mm
• Outer sheath: PVC, thickness 0.50 ± 0.05 mm
• Colour: Grey
• Connectors: None (bulk cable)

How to use

Measure and cut the required length from the 305 m spool. Strip the outer PVC sheath and core insulation according to connector or termination specifications, then terminate to RJ45 plugs or patch panels following Cat6 wiring standards. Use cable management accessories and the self-retracting roller to unwind the cable smoothly and avoid kinks during installation.

Recommendations

The cable is intended for indoor use only; avoid exposure to outdoor weather conditions and direct sunlight. For best performance, follow Cat6 installation practices: maintain proper bend radius, separate power and data cables where possible, and test links after termination.
