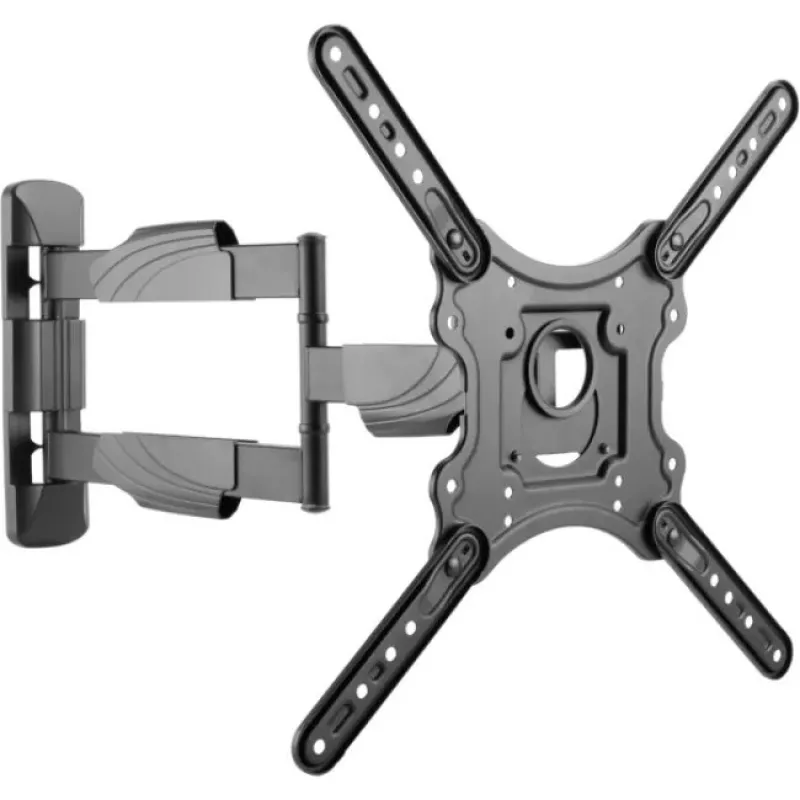

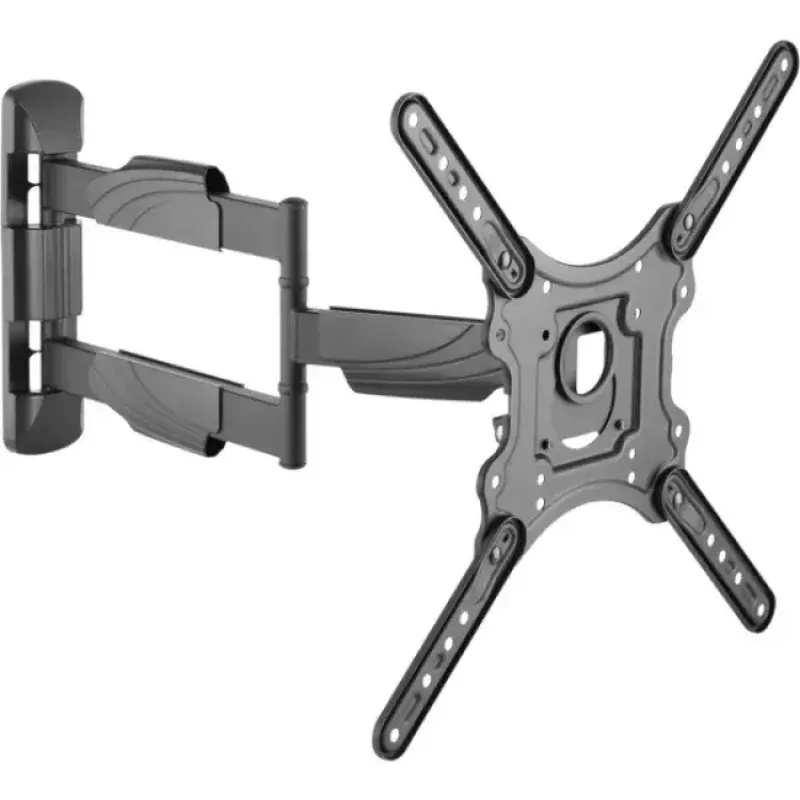

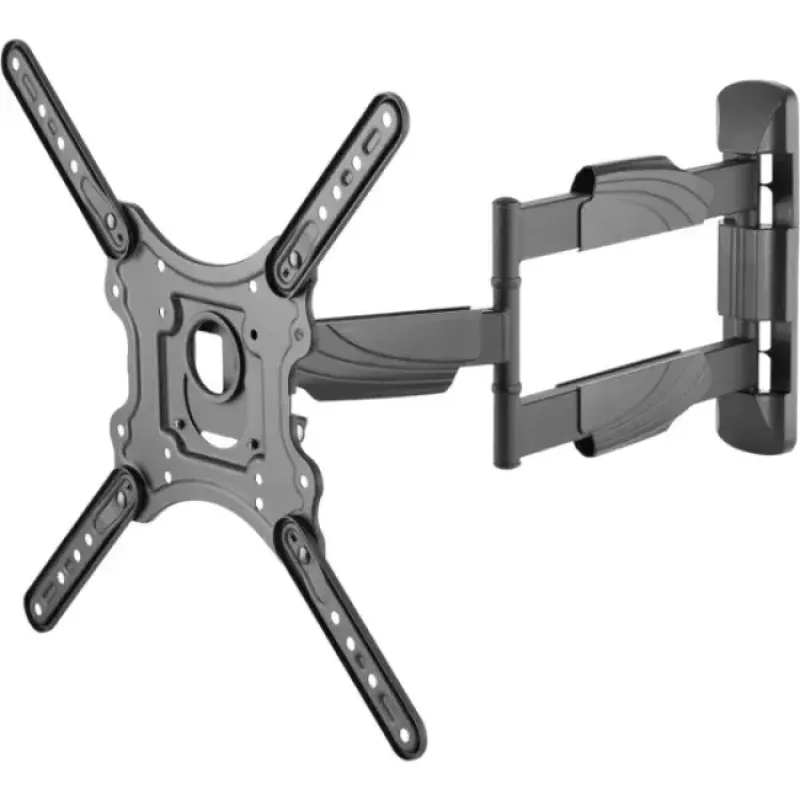

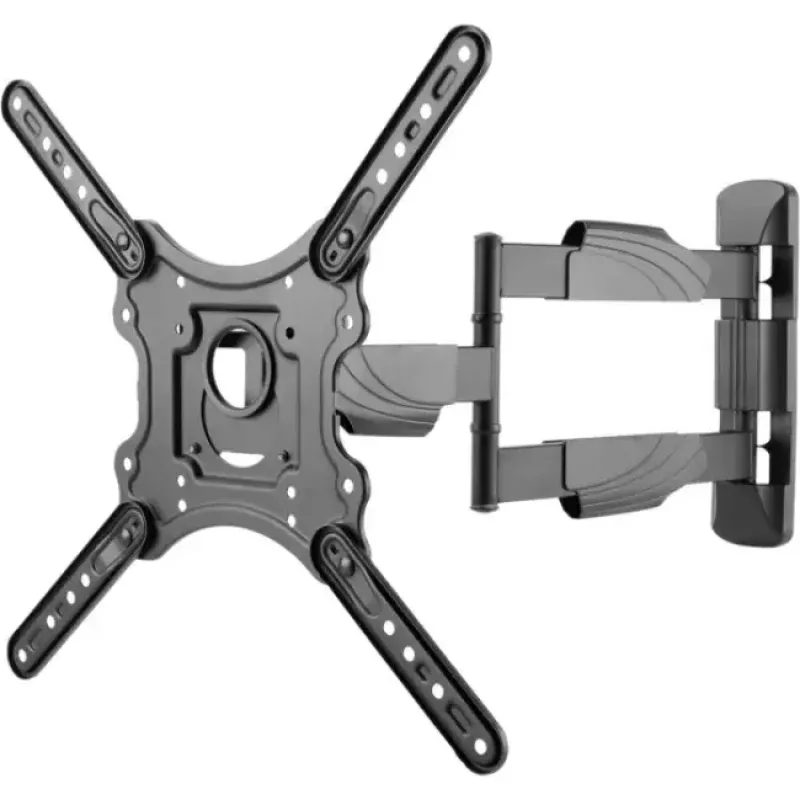

TV Wall Mount Schwaiger LWH35535 513 Black

The SCHWAIGER TV wall mount LWH35535 513 is designed for mounting a single flat-screen TV with VESA patterns from 100 x 100 mm up to 400 x 300 mm. It supports a maximum weight of 35 kg and has an adjustable arm that lets you set the distance from the wall between 5.8 cm and 61.4 cm. The mount is finished in black and includes an integrated cable guide for concealed cable routing.

Advantages

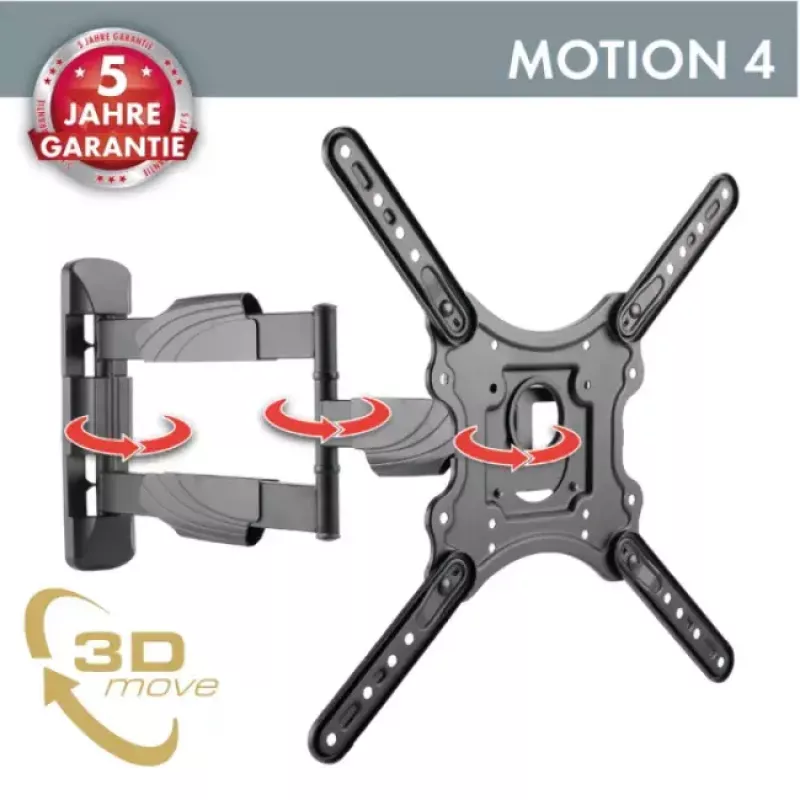

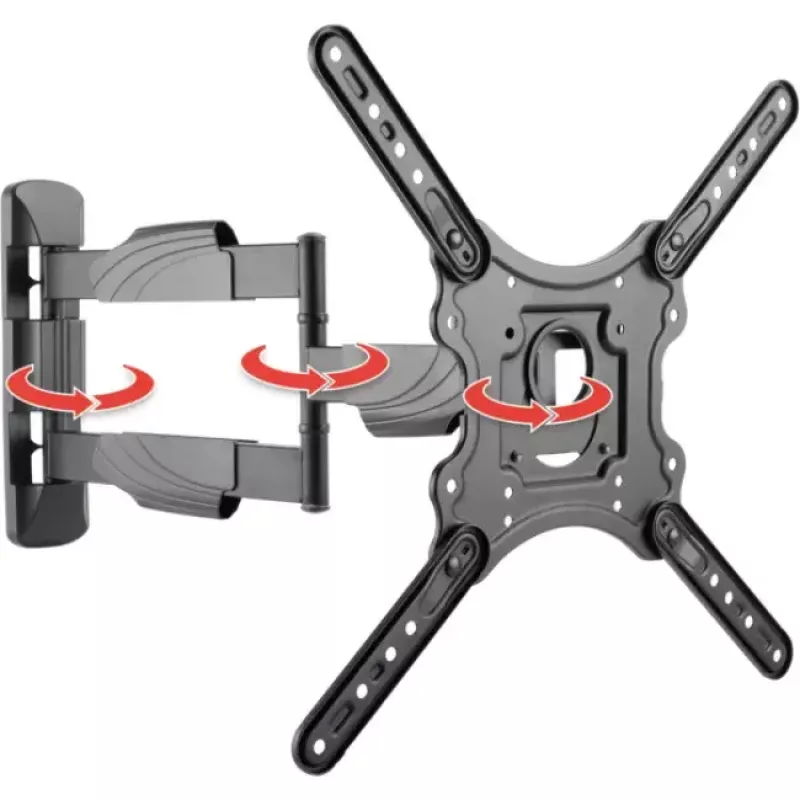

The bracket offers tilt adjustment from +5° to -8° and swivel capability to each side, with axial rotation for fine alignment. Hinges are adjustable in strength to suit different TV weights, and the extendable arm enables both low-profile and pulled-out positions. Integrated cable management keeps connections tidy behind the screen.

Suitable for

• Mounting a single flat-screen TV with VESA 100 x 100 to 400 x 300 mm
• Rooms where adjustable viewing angle is needed (living room, bedroom, office)
• Installations requiring concealed cable routing

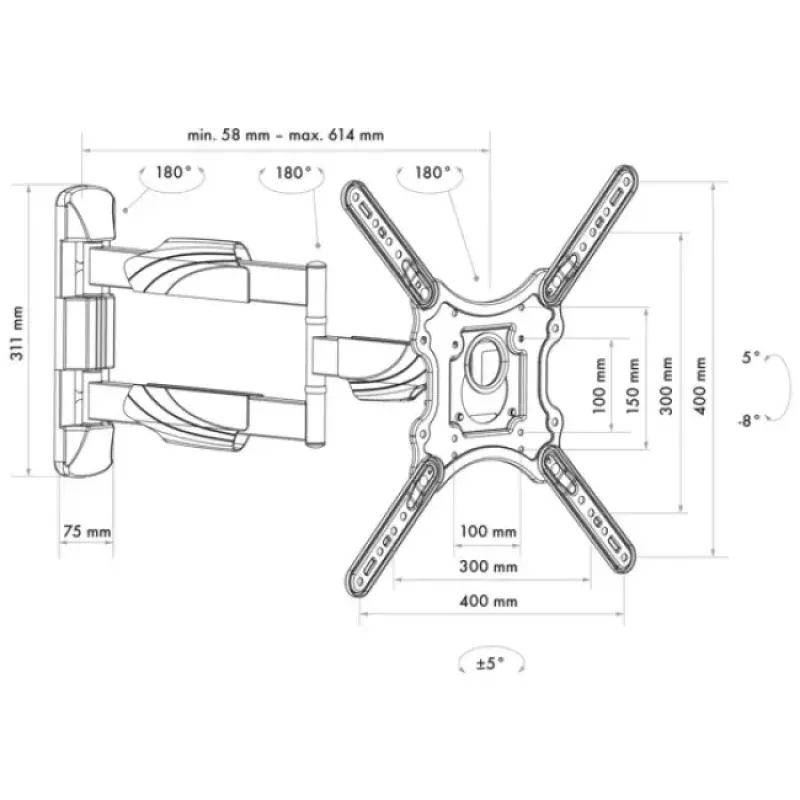

Key specifications

• Maximum weight capacity: 35 kg
• Supported VESA patterns: 100 x 100 mm to 400 x 300 mm
• Distance from wall: adjustable from 5.8 cm to 61.4 cm
• Tilt range: +5° to -8°
• Swivel range: ±5° (approx. 5° to the right and 5° to the left)
• Product colour: Black
• Weight of mount: 3.5 kg

How to use

Attach the wall plate to a suitable load-bearing wall following the included mounting template and hardware appropriate for your wall type. Fasten the mount to the TV using the matching VESA holes and compatible screws. Use the arm to set the desired extension from the wall, then tilt and swivel the screen to the preferred viewing angle. Adjust the hinge tension if needed so the TV holds position without sagging.

Recommendations

Verify that the wall and fixings can support the combined weight of the mount and TV (max 35 kg). Use correct screws and anchors for your wall material, and follow the manufacturer's installation instructions. For heavy TVs or uncertain mounting conditions, consider professional installation.
