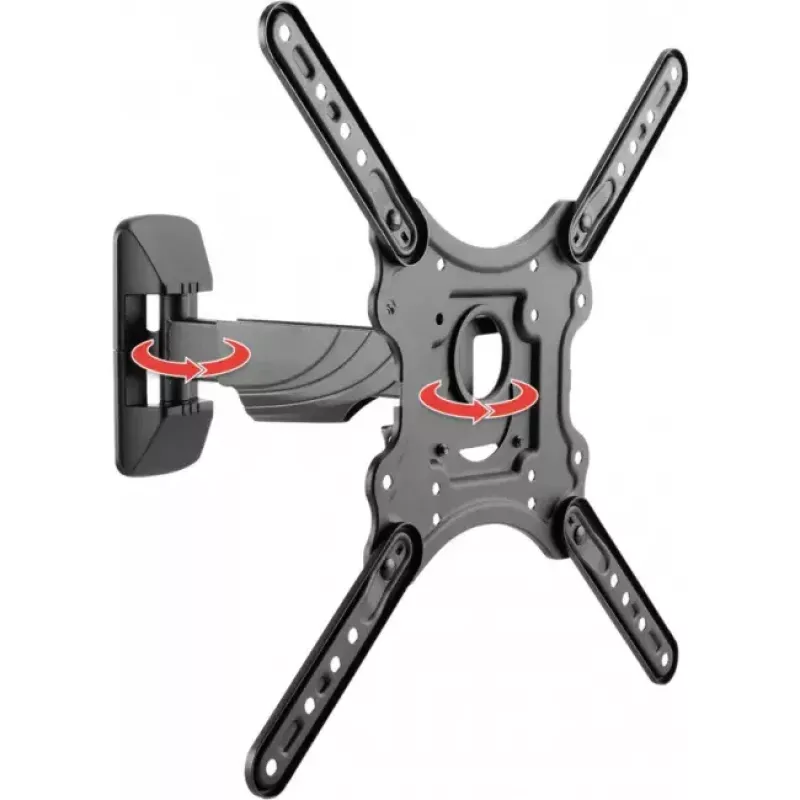

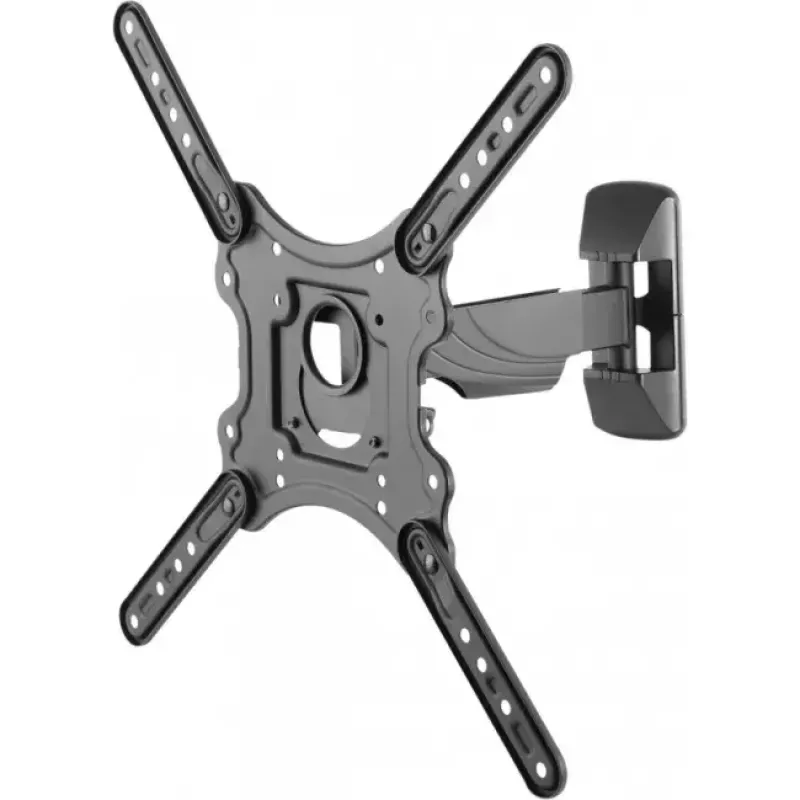

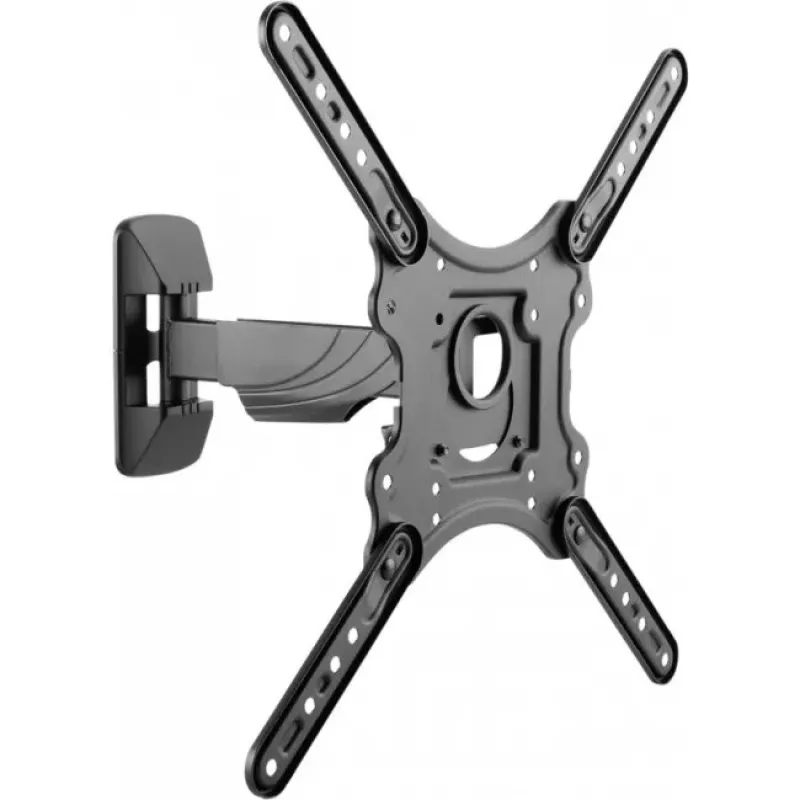

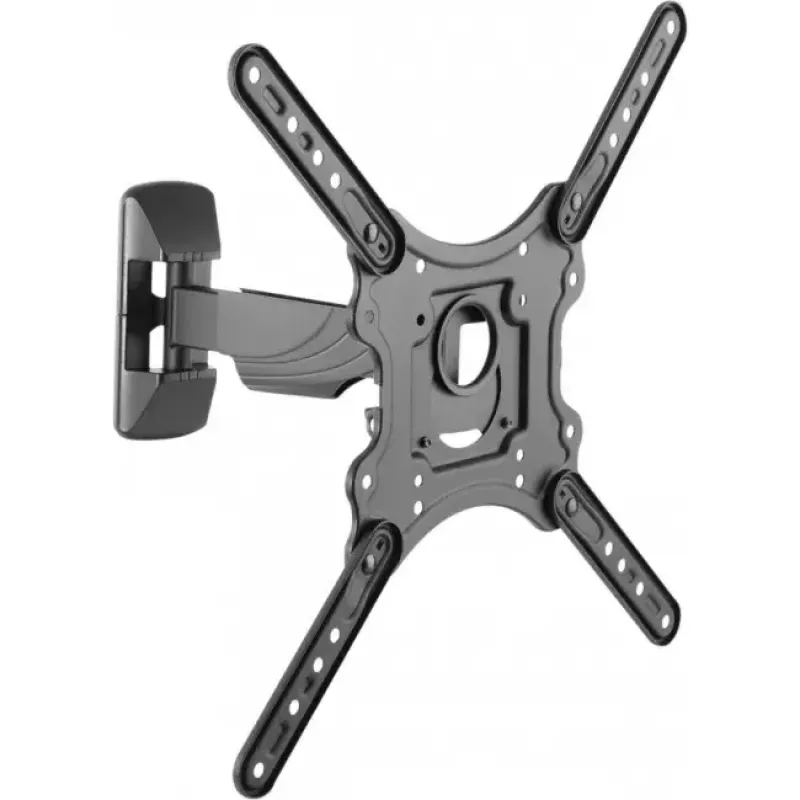

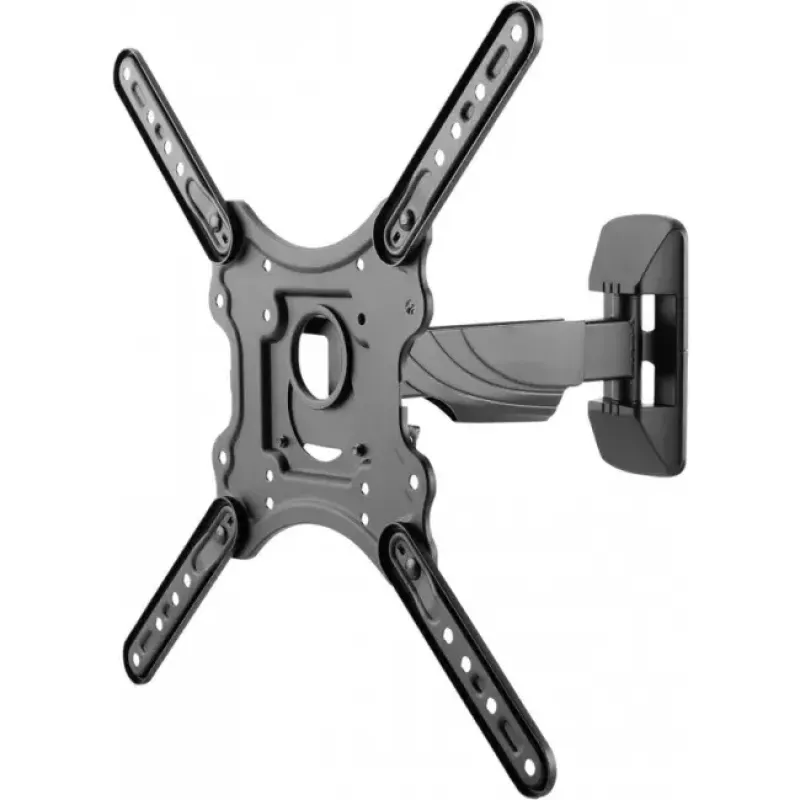

TV Wall Mount Schwaiger LWH25535 513 Black

The Schwaiger LWH25535 513 Black TV wall mount is a compact and functional mounting solution for flat-panel TVs and monitors. Designed to support a single display with a maximum load of 35 kg, it accommodates VESA patterns from 100 x 100 mm up to 400 x 400 mm. The mount offers adjustable tilt from -8° to 5° and limited swivel of -5° to 5°, while extending from 5.8 cm to 28.2 cm from the wall to provide flexible placement in living rooms, offices or public areas. Its black finish provides a discreet, minimalist appearance that integrates with most interior styles.

Advantages

The mount combines a relatively high weight capacity with broad VESA compatibility, allowing use with a wide range of mid-size TVs. Adjustable tilt and swivel enable refinement of viewing angle to minimise glare and improve comfort. The variable extension range provides options for flush mounting or pulling the screen forward for access to rear connectors. The black coating resists visual distraction and complements typical television bezels.

Suitable for

• Wall-mounting a single flat-screen TV in living rooms or bedrooms
• Mounting screens in small offices, meeting rooms or reception areas
• Installing displays where occasional angle adjustment is needed to reduce reflections
• Situations requiring a compact mount that can be extended for connector access

Key specifications

• Supported VESA patterns: 100 x 100 mm up to 400 x 400 mm
• Maximum load capacity: 35 kg
• Number of displays supported: 1
• Tilt range: -8° to 5°
• Swivel range: -5° to 5°
• Extension from wall: 5.8 cm to 28.2 cm
• Finish: black

How to use

Choose a suitable mounting location on a load-bearing wall and verify that the wall material and fixings can support the combined weight of the mount and display. Align the mount plate with the desired height, mark drill points and secure the wall bracket using appropriate anchors and bolts for the wall type. Attach the mounting interface to the TV following the VESA pattern, then lift the display and hang it on the wall bracket. Adjust tilt and swivel to obtain the preferred viewing angle and extend the mount as needed to access rear connectors. Tighten all adjustment points once final positioning is achieved.

Recommendations

Use appropriate wall anchors for concrete, brick or timber stud construction and confirm that the combined weight of the TV and mount does not exceed 35 kg. If unsure about wall strength or installation, consult a qualified installer. Regularly check mounting hardware and adjustment screws for secure fastening, especially after moving the display or adjusting angle frequently.
