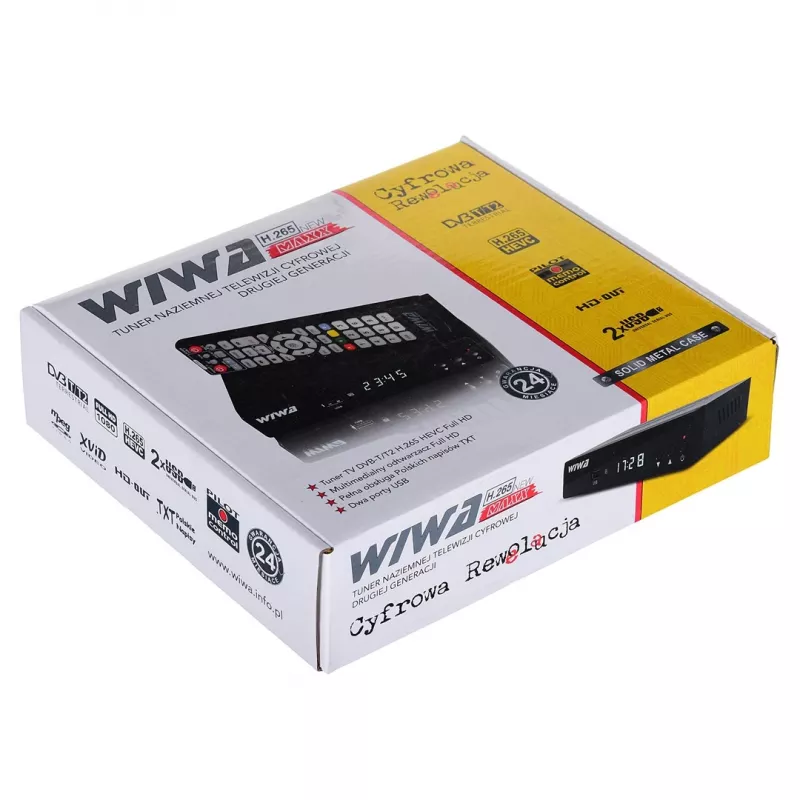

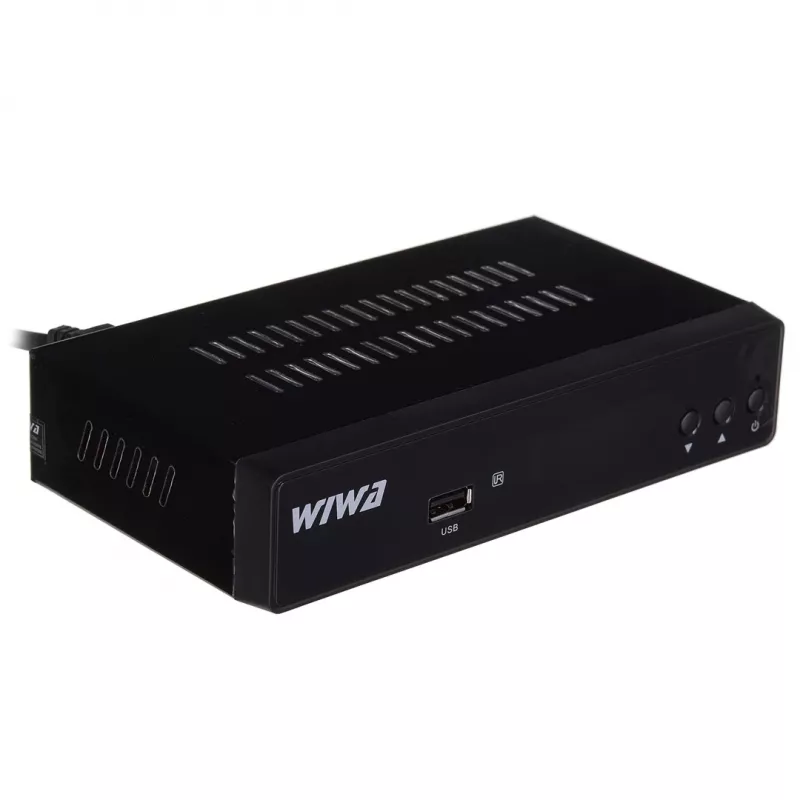

TV tuner WIWA H.265 LITE — DVB-T / DVB-T2 tuner with H.265 support, Full HD, HDMI, USB, SCART

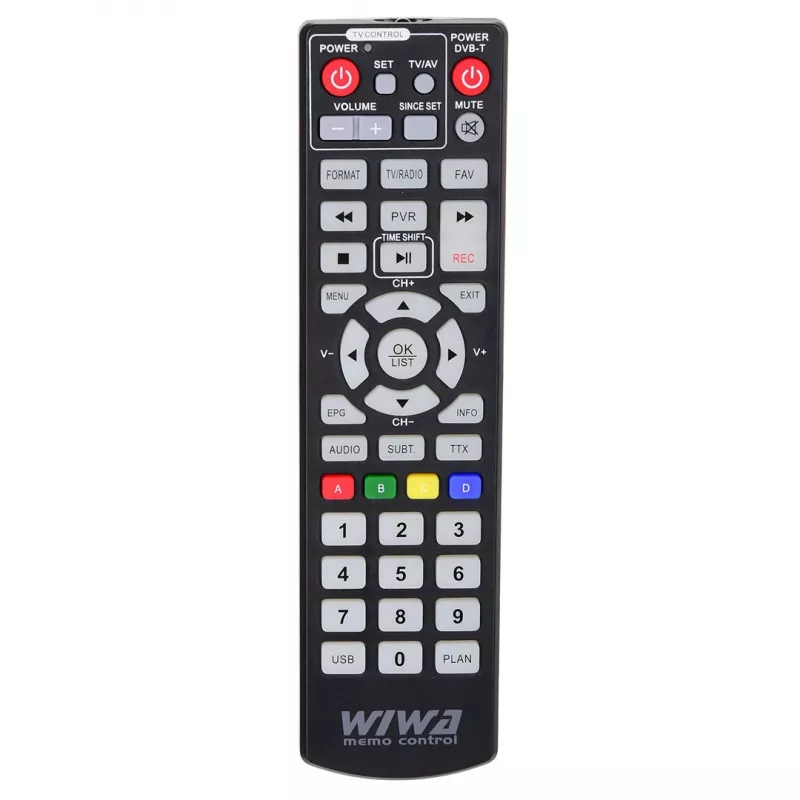

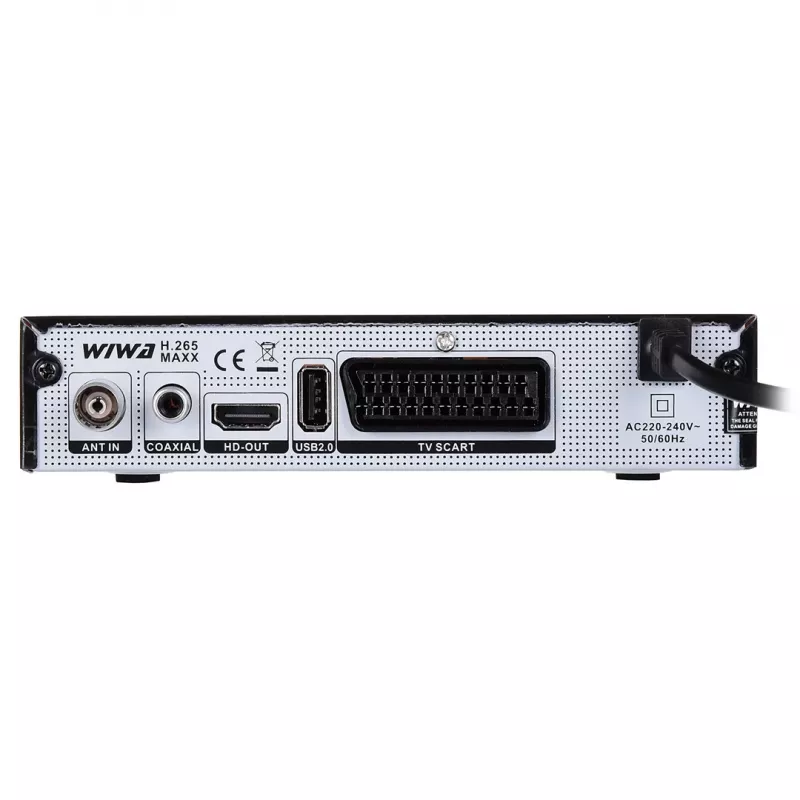

Compact WIWA H.265 LITE DVB-T / DVB-T2 TV tuner with H.265 (HEVC) decoding provides Full HD (1080p) output and supports recording and video playback. The single-tuner device includes HDMI 1.3, SCART and coaxial digital audio outputs, one USB 2.0 port for recording and media playback, RF input and DC-in jack. The unit is energy-efficient with typical power consumption of 7.5 W and 0.35 W in standby, and comes with a remote control and quick start guide.

Advantages

The tuner decodes H.265 (HEVC) for efficient reception of DVB-T and DVB-T2 broadcasts and delivers Full HD 1080p video via HDMI. A single USB 2.0 port enables recording of broadcasts and playback of common media files. Multiple output interfaces including HDMI, SCART and coaxial digital audio provide compatibility with a wide range of TVs and audio systems while the compact and lightweight design facilitates easy placement.

Suitable for

• Receiving digital terrestrial TV (DVB-T / DVB-T2)
• Recording TV programs to USB storage
• Playback of recorded video and common media files
• Connecting to TVs without built-in DVB-T2 or modern inputs

Key specifications

• Supported broadcast systems: DVB-T, DVB-T2
• Video decoding: H.265 (HEVC)
• Maximum video resolution: Full HD 1080p
• HDMI version: 1.3
• USB: 1 × USB 2.0 port for recording/playback
• Analog/video output: SCART
• Digital audio output: 1 × coaxial
• RF input: 1
• Power input: AC 220–240 V, 50/60 Hz; DC-in jack
• Power consumption (typical/standby): 7.5 W / 0.35 W
• Physical dimensions (W×H×D): 145 × 32 × 90 mm
• Weight: 190 g

How to use

Connect the RF antenna to the RF input, attach the HDMI or SCART cable to your TV, and connect the coaxial audio to an external audio system if required. Plug the power adapter into the DC-in jack and the mains outlet. Use the on-screen setup guided by the included remote control to scan for DVB-T / DVB-T2 channels. Insert a USB storage device into the USB 2.0 port to enable recording and media playback features.

Recommendations

Use a well-positioned external antenna for reliable DVB-T/DVB-T2 reception; format USB storage to a compatible file system before first use and ensure sufficient free space for recordings. For best video output, connect via HDMI to a Full HD display.
