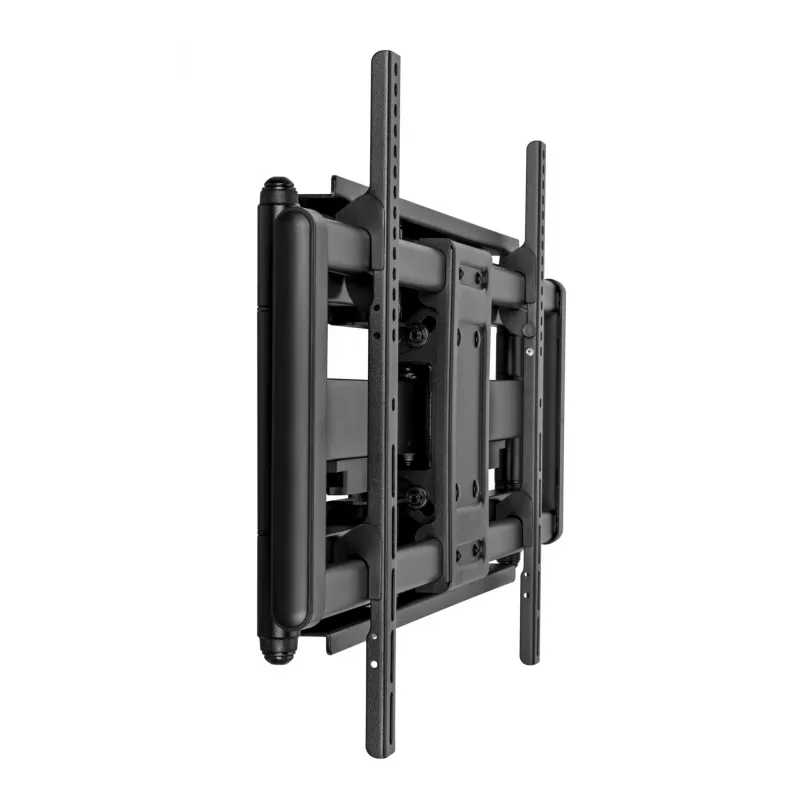

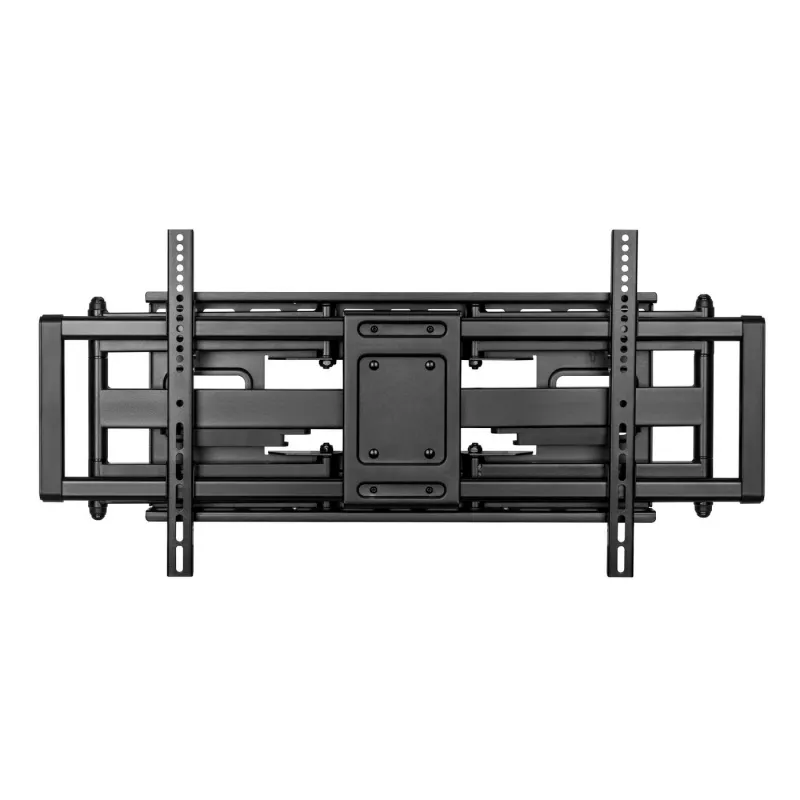

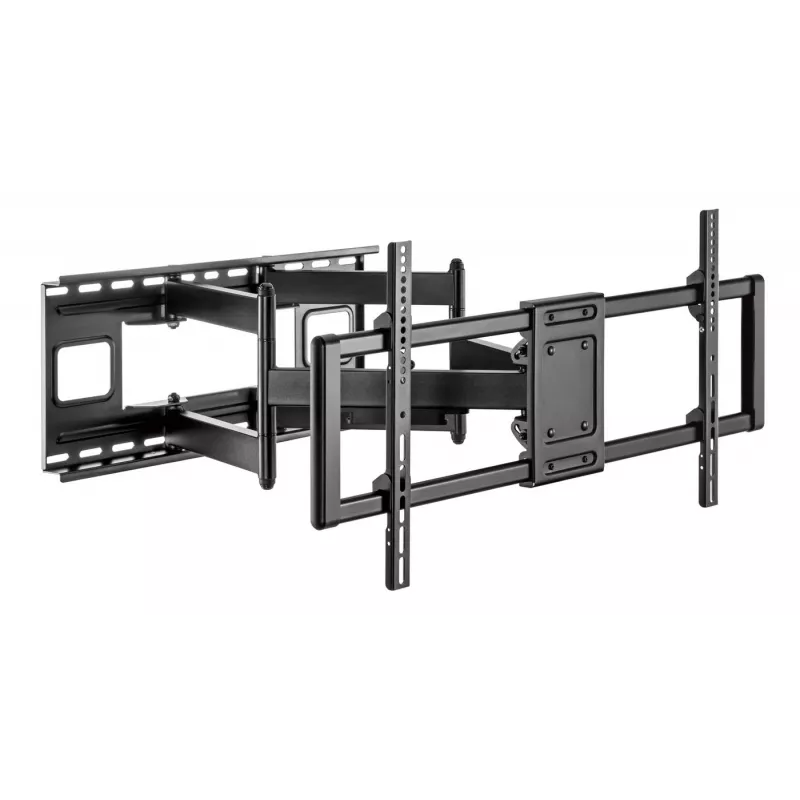

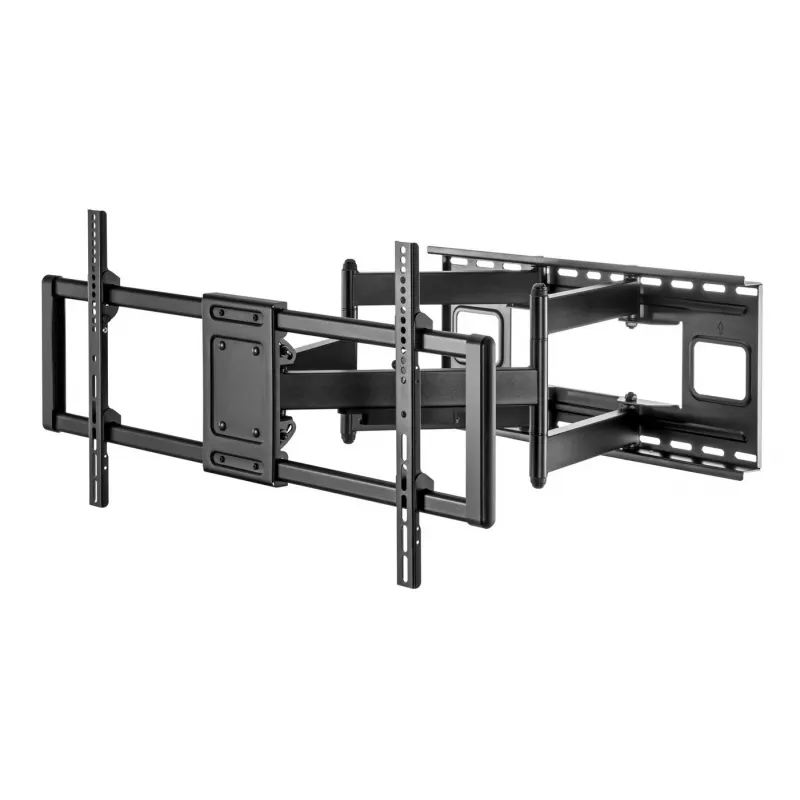

TV mount Vivolink VLMW60120A 2.29 m Black 70 kg capacity

The Vivolink VLMW60120A is a full-motion TV mount designed for large displays. Built from steel and aluminium with a black finish, it supports screens from 43 to 90 inches and can carry up to 70 kg. The mount provides tilt and swivel adjustments and an adjustable extension from the wall, allowing flexible positioning for meeting rooms, offices, hotels, restaurants or living rooms.

Advantages

The VLMW60120A offers a solid steel/aluminium construction for durability, a wide VESA compatibility (200 x 200 up to 800 x 400 mm) and a high load capacity of 70 kg. Its adjustable wall distance from 6.9 cm to 66.1 cm and tilt range of -5° to 10° enable precise viewing angle optimisation. The black design integrates discreetly into professional and domestic interiors.

Suitable for

• Mounting large TVs (43"–90") in meeting rooms
• Wall-installation in offices and hotels
• Restaurant and public area displays
• Home living rooms where full-motion adjustment is required

Key specifications

• Maximum screen size: 90"
• Maximum weight capacity: 70 kg
• VESA compatibility: 200 x 200 mm up to 800 x 400 mm
• Tilt range: -5° to 10°
• Adjustable wall distance: 6.9 cm – 66.1 cm
• Product colour: Black
• Product weight: 15.3 kg

How to use

Attach the mounting plate to the TV using the correct VESA holes and compatible bolts. Secure the wall bracket to a suitable load-bearing wall following local building rules and using appropriate anchors. Hang the TV on the wall bracket and adjust the extension, swivel and tilt to achieve the desired viewing angle. Verify that all fasteners are tightened and that the installation supports the TV weight before regular use.

Recommendations

Ensure the wall structure can support the combined weight of the mount (15.3 kg) and the TV (up to 70 kg). Use recommended wall anchors for the wall type and, if needed, consult a professional installer for concrete or stud-wall mounting. Periodically check fasteners and adjustment points for security.
