TV mount TechniSat 2020/2761 139.7 cm (55 inch) Black

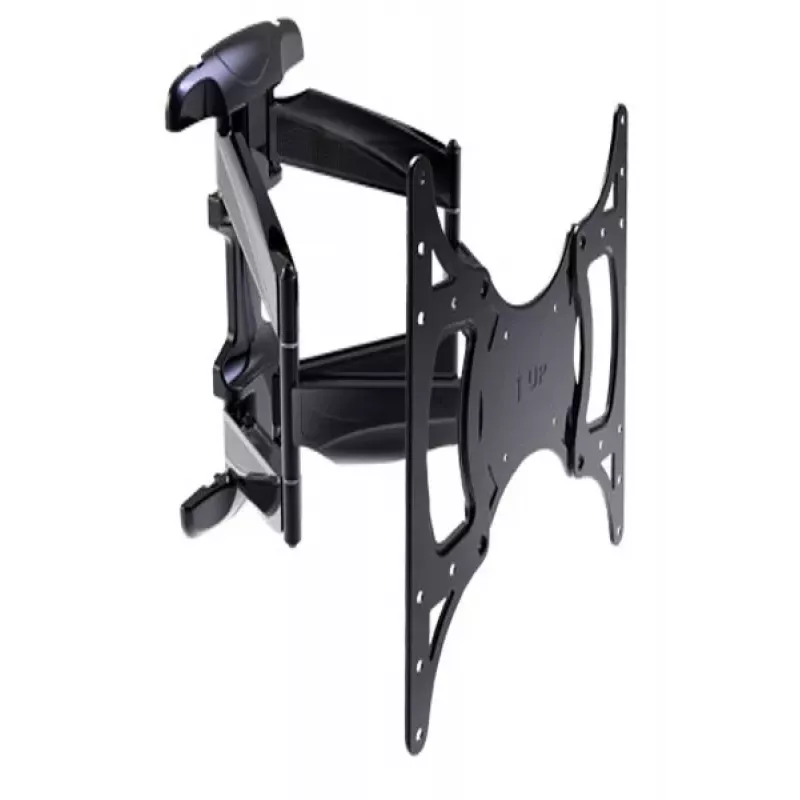

TechniSat 2020/2761 (Flex) is a full-motion wall mount for 66 cm (26") to 139.7 cm (55") LED/LCD/PDP televisions, supporting displays up to 45 kg. Constructed from robust steel with a black finish, the mount provides VESA compatibility from 100 x 100 mm to 400 x 400 mm and a wall distance range of 47 mm to 486 mm. Tilt is adjustable from -2° to 12° and lateral swivel and rotation range depend on screen size for flexible viewing angle control. The bracket is shipped preassembled and includes a bubble level for simplified installation.

Advantages

The mount offers a dual articulated cantilever design that combines stability with wide extension, allowing the screen to be positioned close to the wall or pulled out and angled. Its steel construction and black surface ensure durability and a discreet appearance. Preassembly and the included bubble level reduce installation time and complexity.

Suitable for

• Home living rooms and bedrooms for wall-mounted TVs
• Offices and meeting rooms requiring adjustable screen positioning
• Public waiting areas or small commercial displays

Key specifications

• Screen size compatibility: 66 cm (26") to 139.7 cm (55")
• Maximum load: 45 kg
• VESA compatibility: 100 x 100 mm up to 400 x 400 mm
• Tilt angle: -2° to 12°
• Wall distance: 47 mm (min) to 486 mm (max)
• Finish: black steel
• Brand / MPN / EAN: TECHNISAT / 2020/2761 / 4019588227613

How to use

Mount the bracket to a suitable load-bearing wall following the supplied drilling template and local building regulations. Attach the compatible VESA plate to the TV, lift the display onto the wall arm and secure it per the included hardware. Adjust tilt and swivel to achieve the desired viewing angle; use the supplied bubble level during installation to ensure the mount is aligned correctly.

Recommendations

Ensure the wall material and fixings are rated for the combined weight of the mount and television (up to 45 kg). For heavy or large displays, mount into studs or use appropriate anchors; if unsure, consult a professional installer.
