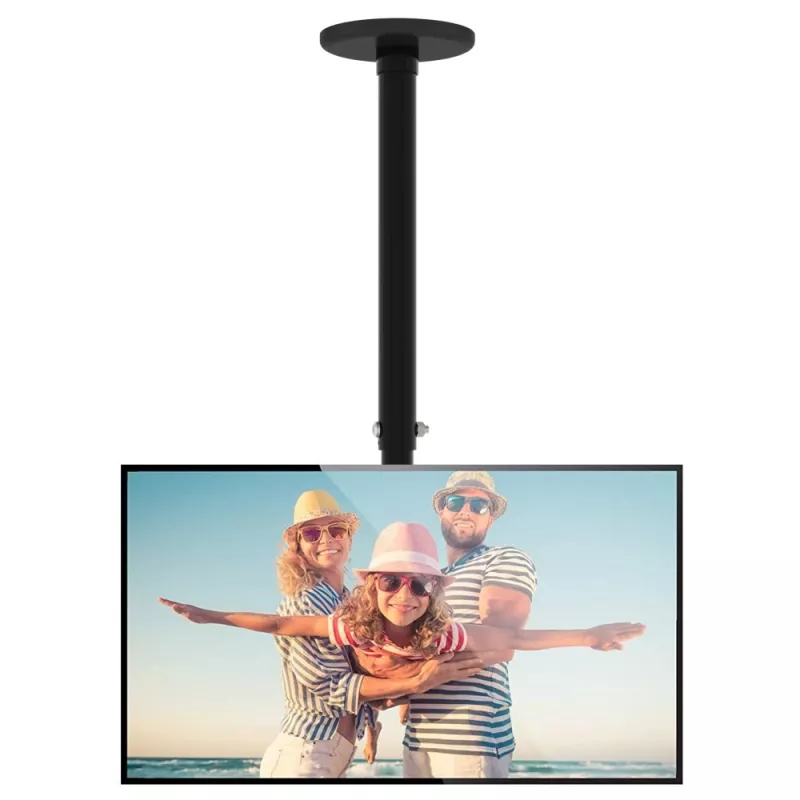

TV Mount Techly ICACPLB906 94 cm (37 inch) Black

ICA-CPLB 906 is a telescopic full-motion ceiling TV mount designed for LED/LCD displays from 23" to 37". Constructed from cold rolled steel with a black finish, the mount supports a single display and is suitable for both flat and sloping ceilings. It includes an integrated duct for cable management to keep cables hidden and organized.

Advantages

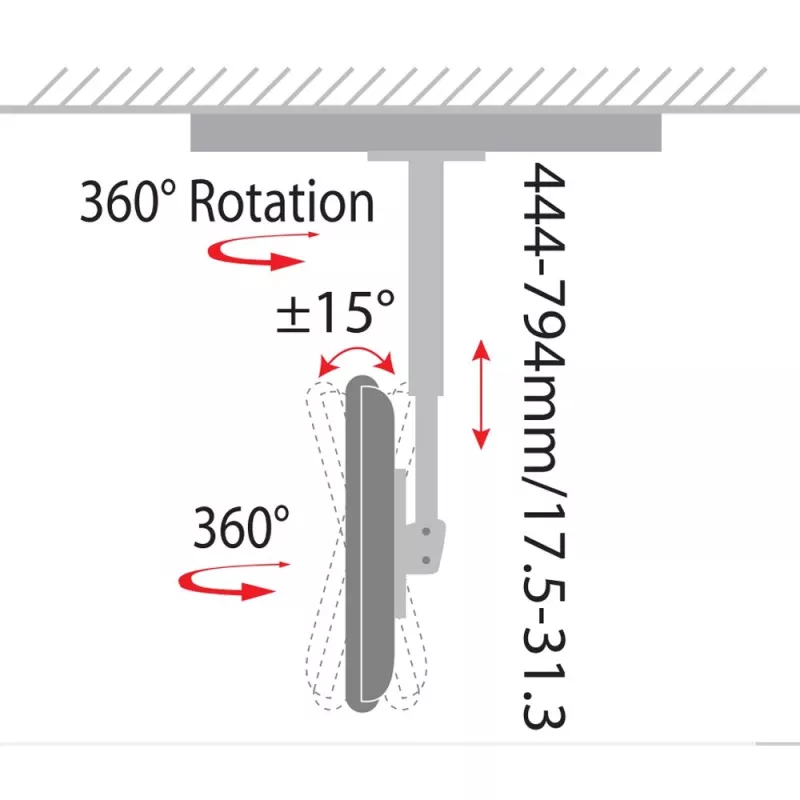

The mount offers adjustable height and full-motion functionality, including a tilt range of -15° to 15° and 360° swivel around the pole, enabling flexible positioning. It supports VESA patterns from 75 x 75 mm up to 200 x 200 mm and a maximum load of 45 kg. The steel construction provides stability while the black finish ensures a discreet appearance.

Suitable for

• Home and office rooms where ceiling mounting is required
• Rooms with flat or sloping ceilings
• Installing a single 23"–37" LED or LCD screen
• Environments that require hidden cable routing

Key specifications

• Compatible screen size: 23"–37" (max 37")

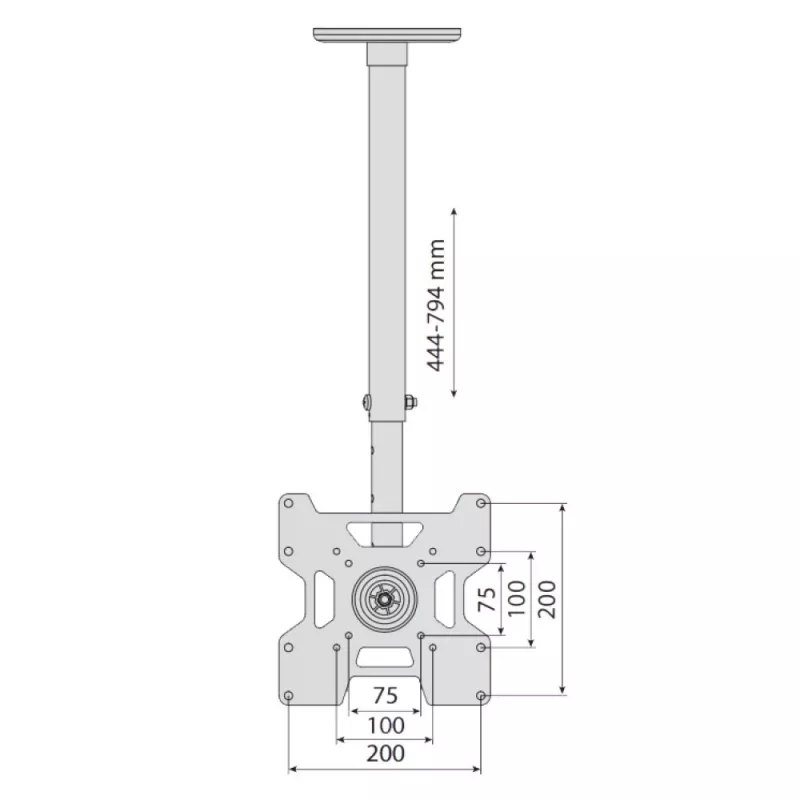

• VESA compatibility: 75 x 75 mm to 200 x 200 mm
• Maximum load capacity: 45 kg
• Tilt: -15° to 15°
• Swivel: 360° around pole
• Material: cold rolled steel
• Colour: Black
• Product weight: 3.132 kg
• Number of displays supported: 1

How to use

Fix the ceiling plate to a suitable load-bearing surface following the mounting instructions and local regulations. Attach the telescopic pole and adjust the height to the desired position. Mount the TV bracket to the display using the appropriate VESA holes, then hook or secure the bracket to the pole assembly. Adjust tilt and swivel to achieve the required viewing angle and route cables through the integrated duct to keep them concealed.

Recommendations

Verify the ceiling structure can support the combined weight of the mount and the display (maximum 45 kg). Use appropriate fasteners for the ceiling material and follow the manufacturer's installation guide. For safety and optimal performance, consider professional installation if unsure about mounting requirements.
