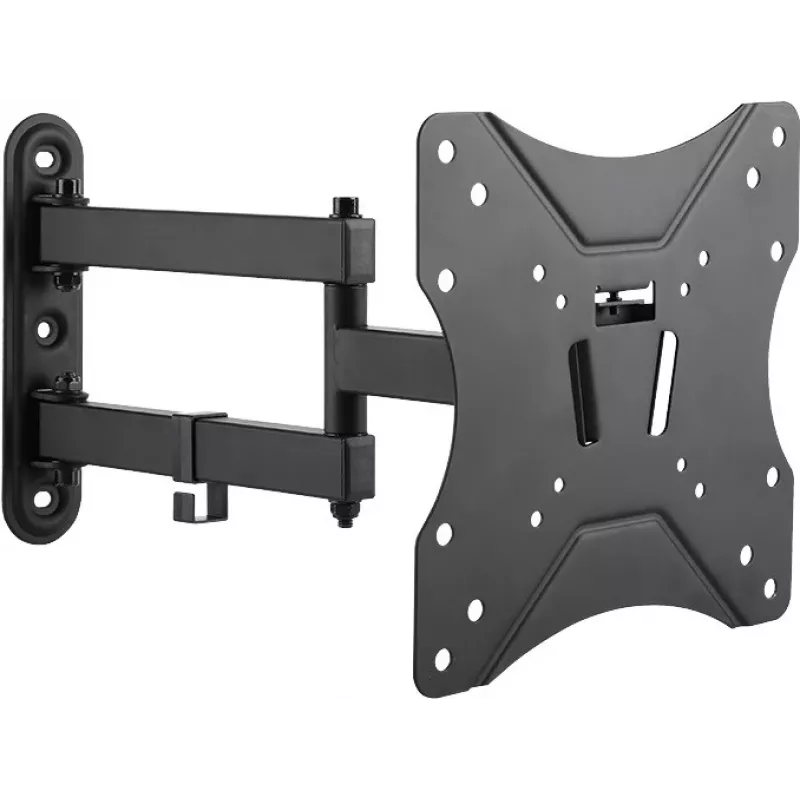

TV mount LogiLink BP0008 106.7 cm (42 inch) Black

The LogiLink BP0008 TV mount is designed for flat screens from 23" to 42" (maximum VESA 200 x 200) and supports up to 25 kg. The mount offers a slim black design and allows placement between 7.2 cm and 40.3 cm from the wall. Its fully movable screen mounts enable panning and tilting to achieve suitable viewing angles for office or home environments.

Advantages

The mount supports a wide range of VESA patterns (75 x 75 to 200 x 200) and a maximum load of 25 kg, providing reliable compatibility with most 23"–42" screens. The adjustable tilt from -7.5° to +7.5° and the variable mounting depth deliver flexibility in positioning and viewing. Its compact black finish integrates unobtrusively with different interiors and helps conserve desk or wall space.

Suitable for

• Mounting a single TV or monitor up to 42" in offices
• Home media rooms and living areas
• Workstations requiring flexible tilt and pan adjustment

Key specifications

• Compatible screen size: 23"–42"
• Maximum VESA: 200 x 200 mm (supports 75 x 75 to 200 x 200)
• Maximum load: 25 kg
• Tilt range: -7.5° to +7.5°
• Distance from wall: 7.2 cm – 40.3 cm
• Colour: Black
• Number of displays: 1

How to use

Attach the mount to a suitable wall following the included drilling template and local building regulations. Fix the bracket to the wall at the chosen height, then secure the screen to the VESA plate using the appropriate screws for your display. Adjust the distance from the wall between 7.2 cm and 40.3 cm and set the tilt between -7.5° and +7.5° until you achieve the desired viewing angle. Verify that all fasteners are tightened and that the screen is stable before regular use.

Recommendations

Check your display's VESA pattern and weight before installation. Use appropriate wall anchors for the wall material and, if necessary, consult a professional installer to ensure safe mounting at the required height.
