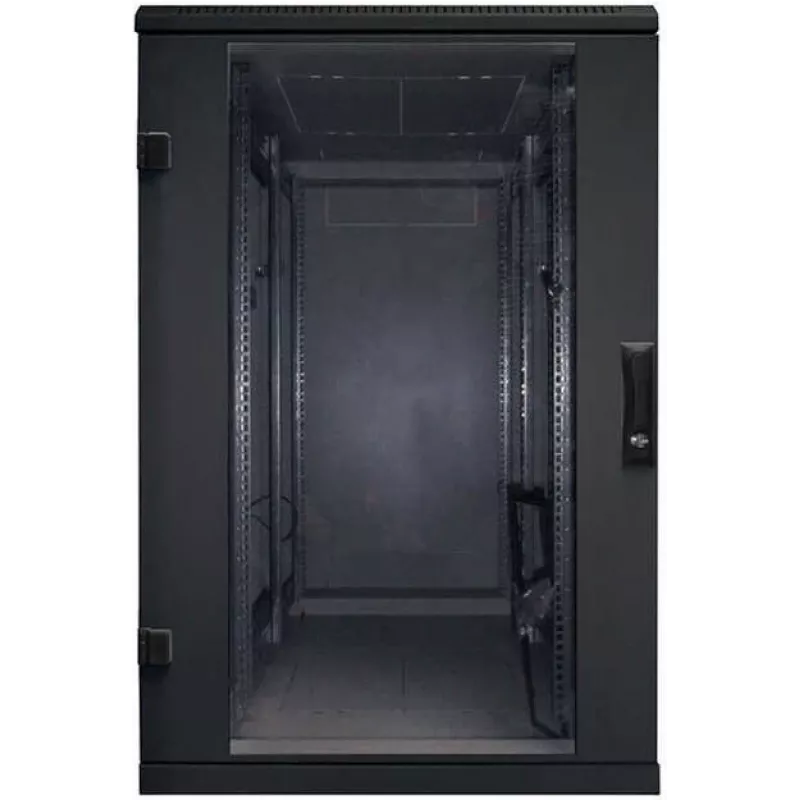

TRITON RMA-22-A68-BAX-N1 22U 600x800mm Welded Floor-Standing Distribution Cabinet, Black, 800 kg Load Capacity

Data centers and industrial facilities needing a robust, secure enclosure for 19-inch equipment will find the TRITON RMA-22-A68-BAX-N1 an ideal solution. This welded floor-standing cabinet offers 22U of rack space in a compact 600mm width and 800mm depth, supporting up to 800 kg of static load. The double doors open nearly 180° and are easily removable, while the side and rear panels detach for convenient access during installation and maintenance. Adjustable vertical mounting rails slide to accommodate various equipment depths, and the included leveling feet and castors ensure stable positioning. With a black RAL 9005 finish and IP20 protection, it suits indoor IT environments.

Key specifications

• 22U rack capacity, 600 mm width, 800 mm depth, 1166 mm height
• Welded steel frame with removable, lockable side and rear panels
• Perforated front and rear doors (80% perforation) for passive ventilation
• Static load capacity: 800 kg
• Adjustable 19-inch vertical mounting rails (two pairs)
• Keyed alike locks for doors and panels; Triton lever handles
• Top and bottom cable entry with brush strips
• IP20 protection rating; black RAL 9005 finish
• Includes 4 leveling feet, 4 castors, 2 keys, 20 cage nuts M6

Why choose it

The RMA series combines high load capacity with flexible configuration. Its welded construction ensures long-term stability, while removable panels and reversible doors simplify installation and maintenance. The adjustable rails allow precise equipment placement, and the perforated doors support natural airflow, reducing cooling costs. The cabinet is compatible with optional fan units and can be fitted with a semi-cylindrical lock cylinder for enhanced security.

Ideal use cases

• Server rooms and data centers requiring secure, high-capacity enclosures
• Industrial environments needing durable, lockable equipment storage
• Network installations where cable management and accessibility are priorities
• IT closets with limited floor space but heavy equipment loads

Good to know

The cabinet ships with all necessary hardware for assembly and leveling. The side and rear panels are keyed alike, and the front and rear doors can be swapped for left or right opening. Optional solid doors are available for mounting ventilation units. The IP20 rating means it is intended for indoor use in clean, dry environments.
