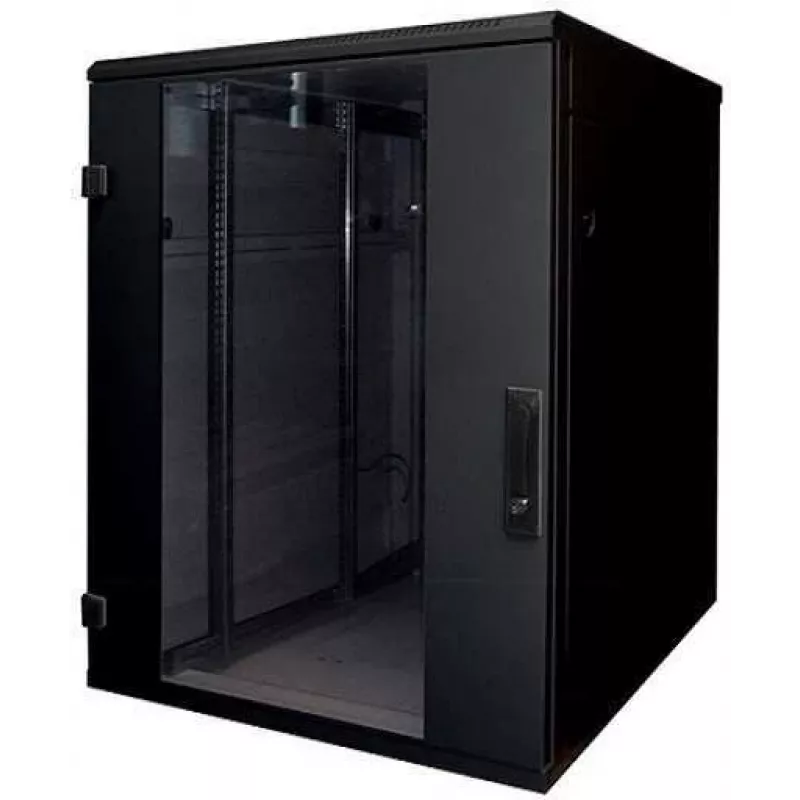

Triton RMA-18-A68-BAX-N1 18U 19 inch Floor-Standing Network Cabinet, 600x800 mm, Glass Door, Black

The Triton RMA-18-A68-BAX-N1 is a welded floor-standing 19" network cabinet engineered for exceptional load capacity, supporting up to 800 kg of equipment. Its robust steel frame with removable side and rear panels ensures secure, organized installation of servers, networking gear, and AV components in demanding IT environments.

Advantages

The cabinet's innovative frame construction delivers an outstanding 800 kg static load rating without compromising structural integrity. Double doors with plug-in hinges open nearly 180° and can be easily removed or re-hinged for flexible access. Adjustable vertical 19" rails provide infinite depth positioning, simplifying component installation and cable management. Removable side and rear panels are secured with keyed-alike locks, while the tempered glass front door offers visibility and security. The cabinet is prepared for optional ventilation units, ensuring thermal management for high-density deployments.

Suitable for

• Server rooms and data centers requiring high-capacity 19" rack enclosures
• Network infrastructure for enterprises, educational institutions, and industrial facilities
• AV and broadcast installations needing secure, lockable equipment storage
• IT closets with heavy equipment such as UPS systems and storage arrays

Key specifications

• Rack capacity: 18U, 19" standard
• External dimensions: 600 mm width, 800 mm depth, 900 mm height
• Maximum static load capacity: 800 kg
• Front door: tempered glass, lockable; rear door: solid steel, lockable
• Removable side panels with key lock
• Material: steel, black (RAL 9005), IP20 protection
• Adjustable mounting rails, cable entry top and bottom
• Included: 2 keys, 4 leveling feet, 4 castors, 20 cage nuts M6

Recommendations

For optimal airflow, consider adding a RAx-CH-X0x-X3 ventilation unit. Use the included castors for easy repositioning during setup, then level with the feet for permanent installation. The keyed-alike locks simplify access management across multiple cabinets.
