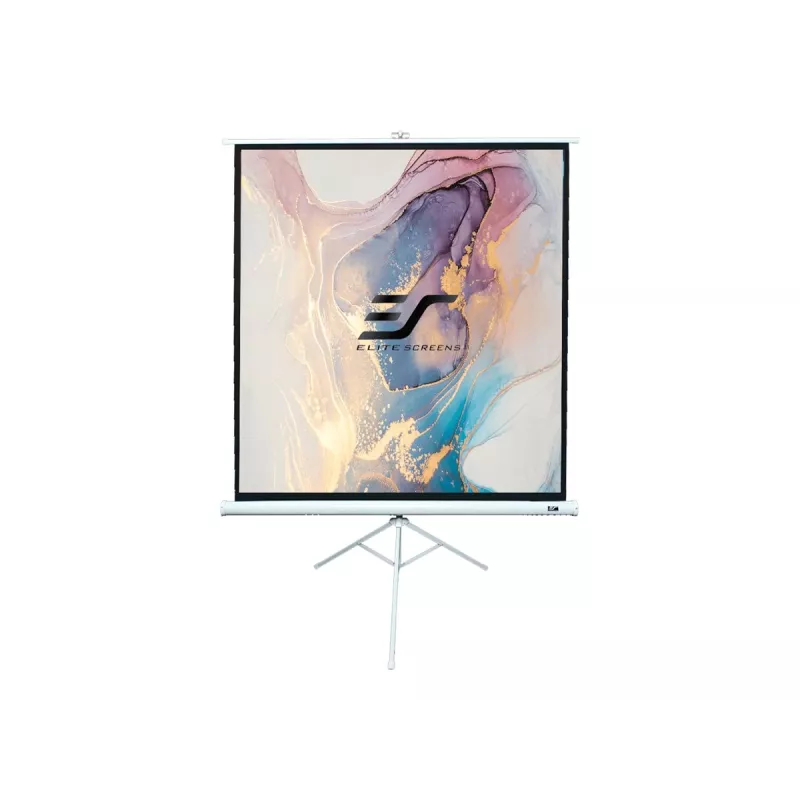

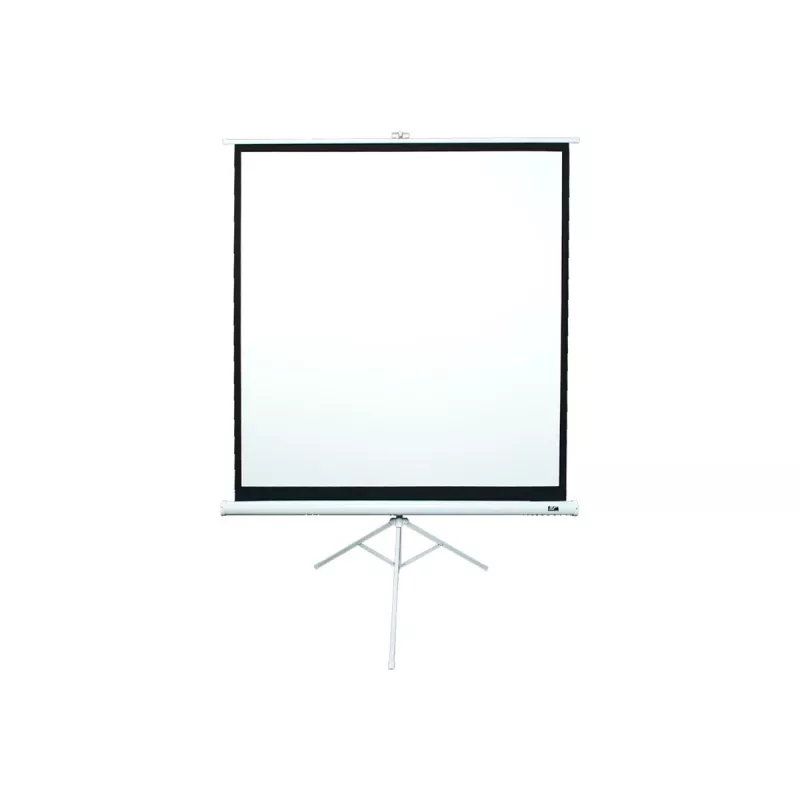

Tripod projection screen Elite Screens T99NWS1 2.51 m 1:1

The Elite Screens Tripod Portable Projection Screen T99NWS1 is a portable manual tripod screen with a 2.51 m (99") diagonal and a 1:1 aspect ratio. The viewable area measures 177.8 x 177.8 cm, making it suitable for presentations and events in indoor or outdoor small to large venues. The screen uses MaxWhite 1.1 gain material, is 4K Ultra HD ready and comes with four-sided black masking. The unit is designed for frequent setup and takedown and includes a heavy-duty metal casing and rugged construction for daily use.

Advantages

The tripod design provides quick setup and portability while an adjustable locking ring allows for easy height adjustment. A built-in keystone eliminator simplifies projector aiming and calibration. Four-sided black masking reduces unwanted light overspill, and the MaxWhite 1.1 gain surface offers a wide 180° viewing angle and is easy to clean. The screen is GREENGUARD and GREENGUARD Gold certified and is available with optional carrying accessories.

Suitable for

• Business presentations and training sessions
• Classroom and lecture use
• Portable cinema and movie nights
• Events and temporary installations in small to large venues

Key specifications

• Model: Elite Screens T99NWS1
• Diagonal: 2.51 m (99")
• Aspect ratio: 1:1 (square)
• Viewable area: 177.8 x 177.8 cm
• Screen material: MaxWhite, 1.1 gain
• Viewing angle: 180°
• Drive type: Manual tripod
• Weight: 7.4 kg
• Resolution support: 4K Ultra HD ready
• Casing: Heavy-duty metal (black or white options on most models)

How to use

Place the tripod on a level surface and extend the legs until stable. Unlock the adjustable ring to raise the screen to the desired height and then secure the ring. Pull the screen up from the casing to the needed viewing height and use the built-in keystone eliminator to align the projection. After use, retract the screen into the casing, collapse the tripod legs and store in a protective case if available.

Recommendations

Position the projector perpendicular to the center of the screen when possible and avoid extreme off-axis projection to reduce keystone distortion. Clean the MaxWhite surface with a soft, damp cloth and avoid abrasive cleaners. For outdoor use, protect the unit from strong wind and moisture and use a carrying case for transport.
