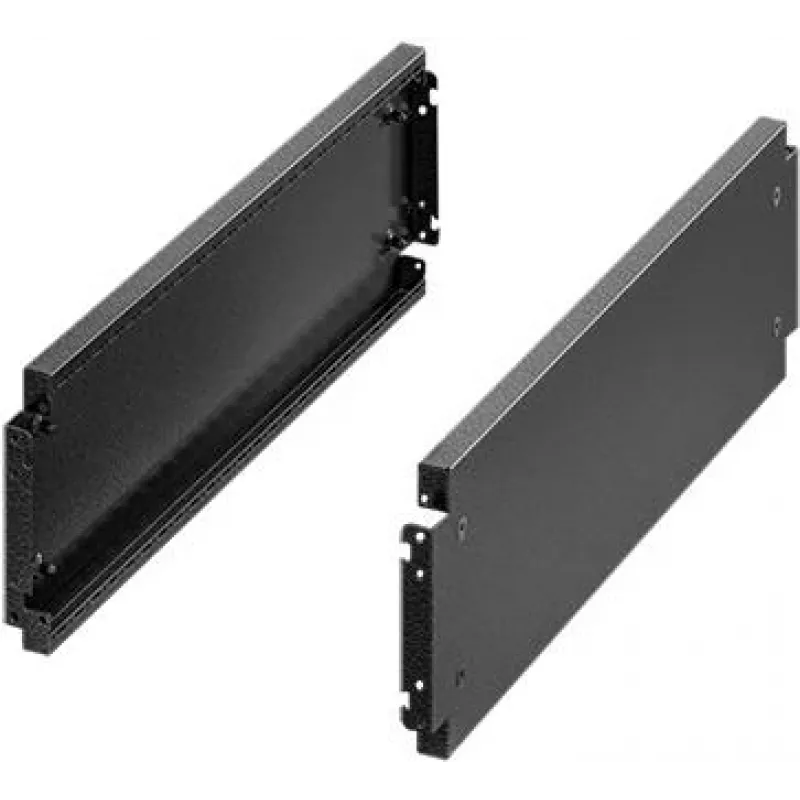

Trim panel Rittal VX 8660.044 Black Steel 800mm Depth 200mm Height

The Rittal VX 8660.044 trim panel is a black steel finishing panel sized 800 mm depth by 200 mm height, intended to finish the sides of base/plinth units and to add stability or enable interior configuration of bayed base/plinths. It is sold in packs of two and is suitable for use with 200 mm high base/plinths where one 200 mm panel or two 100 mm panels may be fitted.

Advantages

This steel trim panel offers a durable, corrosion-resistant finish for enclosure bases and plinths, providing mechanical stability and a neat exterior appearance. Its dimensions and weight make it compatible with standard VX 200 mm base/plinth systems, and the black finish ensures a consistent look across installations.

Suitable for

Key specifications

How to use

Position the trim panel at the side of the 200 mm high base/plinth and secure it according to the enclosure manufacturer’s mounting instructions. For a 200 mm high base you may fit one 200 mm trim panel or alternatively two 100 mm panels if available. Ensure alignment with adjacent bayed units to maintain stability and a continuous exterior surface.

Recommendations

Install panels on level, compatible base/plinth frames and follow Rittal mounting guidelines. Use appropriate fasteners and check for correct grounding where required by the enclosure system.
