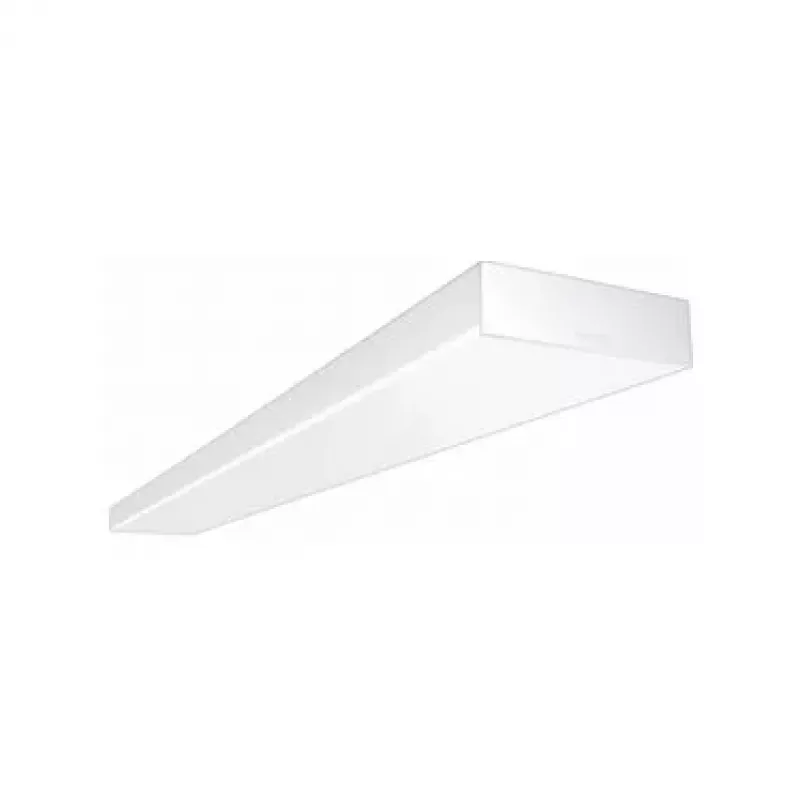

TRILUX Opendo D2-L PW19 20-47/5/ML-840 ET 01 LED Linear Luminaire 1408x161mm Prismatic White

The TRILUX Opendo D2-L PW19 20-47/5/ML-840 ET 01 is a high-performance LED linear luminaire designed for professional lighting applications. With a prismatic diffuser and neutral white light (4000 K), it delivers excellent illumination for offices, corridors, and commercial spaces. The luminaire is part of the Opendo light line system, offering flexible mounting options including surface-mounted, suspended, or integrated into a continuous row.

Advantages

Energy-efficient LED technology with a luminous efficacy of 142 lm/W, reducing operating costs. The prismatic diffuser ensures uniform light distribution and reduced glare. Long rated lifetime of >50,000 hours (L80B50) minimizes maintenance. Robust construction with sheet steel housing and IK02 impact resistance.

Suitable for

• Office environments
• Corridors and hallways
• Retail spaces
• Educational facilities
• Light line systems in commercial buildings

Key specifications

• Product Type: LED Linear Luminaire
• Light Source: LED
• Luminous Flux: 4700 lm
• Color Temperature: 4000 K (Neutral White)
• Color Rendering Index (CRI): Ra > 80
• Rated Power: 33 W
• Luminous Efficacy: 142 lm/W
• Control Gear: Electronic (ET), Non-dimmable
• Diffuser Type: Prismatic
• Beam Angle: Wide (Medium Light Distribution)
• Housing Material: Sheet steel, powder-coated
• Housing Color: White
• Protection Class: IP20
• Impact Resistance: IK02
• Rated Lifetime (L80B50): > 50,000 h
• Operating Voltage: 220-240 V AC, 50/60 Hz
• Mounting Type: Surface-mounted / Suspended / Light line system
• Ambient Temperature Range: +10 to +35 °C
• Dimensions: 1408 x 161 mm

Recommendations

For optimal performance, pair with compatible TRILUX mounting accessories and control systems. Suitable for use in continuous row configurations to create seamless lighting lines.
