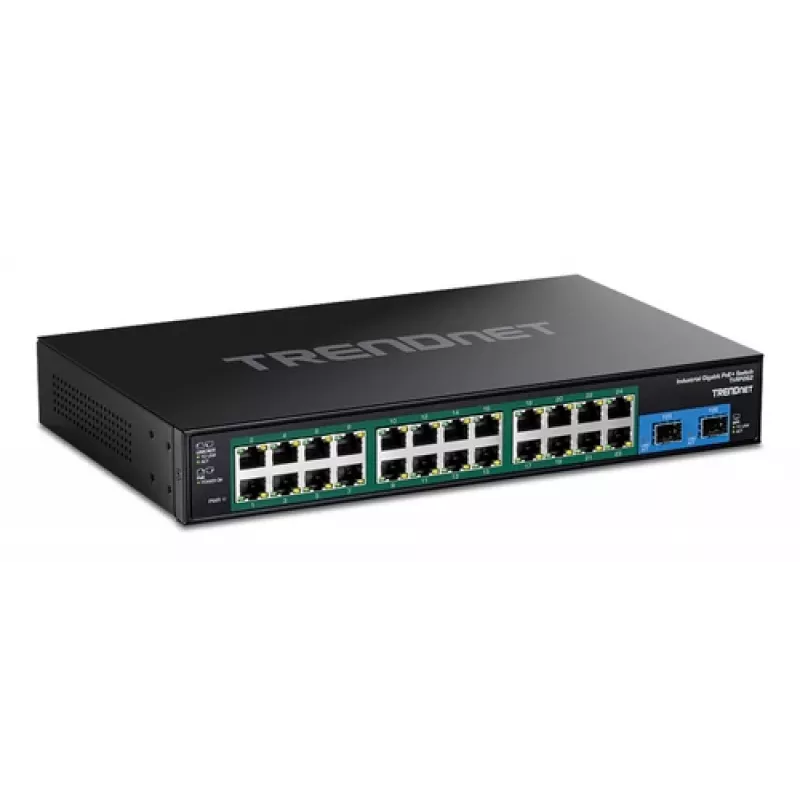

TRENDnet 26-Port Hardened Industrial Gigabit PoE+ Managed Switch with 24x PoE+ and 2x SFP

Industrial networking reaches a new level of resilience with this 26-port hardened managed switch. It powers 24 Gigabit PoE+ devices with a substantial 480 W budget while delivering non-blocking performance through a 52 Gbps switching fabric. Built for extreme environments, it operates fanless in temperatures from -40 to 75 °C within an IP30 metal enclosure.

Advantages

Dual redundant 48–56 V DC inputs ensure continuous uptime, and the Layer 2 management suite—Web GUI, CLI, and SNMP—provides granular control. Surge protection up to 6 kV and ESD protection of 8 kV (air) safeguard connected equipment. DIN-rail and wall-mount options simplify installation in space-constrained cabinets.

Suitable for

• Industrial Ethernet networks in manufacturing, transportation, and utilities
• IP surveillance systems requiring PoE+ for PTZ cameras and outdoor enclosures
• Wireless backhaul and access points in harsh environments
• Process automation and control systems needing reliable switching

Key specifications

• 26 ports: 24 x 10/100/1000 Mbps PoE+ (802.3at/af) + 2 x Gigabit SFP
• PoE power budget: 480 W
• Switching capacity: 52 Gbps; forwarding rate: 38.69 Mpps
• MAC address table: 8K entries; jumbo frame support: 10 KB
• Operating temperature: -40 to 75 °C; IP30-rated metal enclosure, fanless
• Dual redundant DC power inputs (48–56 V)

Recommendations

This switch is an excellent choice for mission-critical industrial networks where reliability, PoE+ density, and environmental resilience are non-negotiable.
