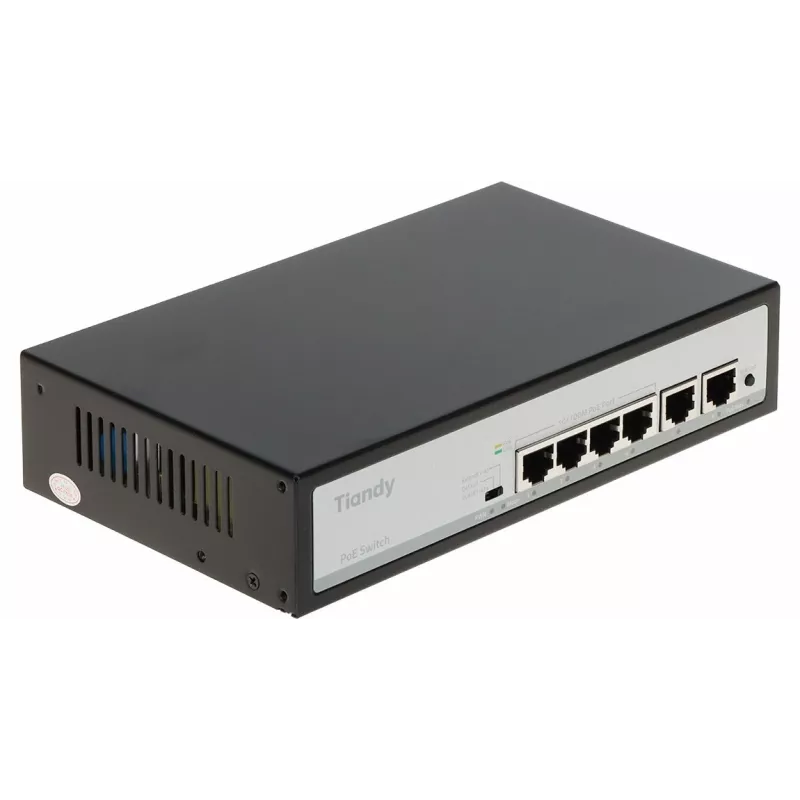

Tiandy TC-P3S06 4-Port PoE Switch with 2 Uplink Ports, 65W Budget, IEEE 802.3af/at, Unmanaged, Desktop/Wall Mount

Running low on power outlets and network ports for your IP cameras or access points? The Tiandy TC-P3S06 unmanaged PoE switch solves that by delivering both data and power over a single Ethernet cable to up to four PoE devices, eliminating the need for separate power injectors or nearby AC sockets. With a total power budget of 65W and support for IEEE 802.3af/at, it can handle a mix of standard PoE and PoE+ devices, each drawing up to 30W per port. The two additional uplink ports connect to your router or NVR, making this switch an ideal backbone for small surveillance or office networks.

Who is it for

This switch is perfect for small business owners, home users, and installers who need a simple, reliable way to power and connect IP cameras, VoIP phones, wireless access points, or other PoE-enabled endpoints. Its plug-and-play nature means no configuration is required, so even non-technical users can set it up in minutes. The compact metal housing and included wall-mount option make it suitable for desktop placement or discreet installation in wiring closets, garages, or under desks.

Main features

• 4 PoE ports (10/100 Mbps) with IEEE 802.3af/at support, up to 30W per port
• 2 uplink ports (10/100 Mbps) for connection to router, NVR, or additional switches
• Total PoE power budget of 65W, enough for multiple cameras or access points
• Unmanaged operation: true plug-and-play, no software or configuration needed
• Switching capacity of 1.2 Gbps and packet forwarding rate of 0.89 Mpps ensure smooth data flow
• Compact metal housing with desktop and wall-mount options for flexible installation
• LED indicators for power, link/activity, and PoE status for easy monitoring

Specifications

• PoE Ports: 4 x 10/100Mbps RJ45, IEEE 802.3af/at, up to 30W per port
• Uplink Ports: 2 x 10/100Mbps RJ45
• Total PoE Power Budget: 65W
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.89 Mpps
• MAC Address Table: 1K entries
• Jumbo Frame Support: 1536 Bytes
• Network Protocols: IEEE 802.3, 802.3u, 802.3x, 802.3af, 802.3at
• Power Supply: External DC 52V/1.25A
• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• LED Indicators: Power, Link/Act, PoE Status
• Mounting: Desktop, Wall-mount
• Housing Material: Metal

Tips

To get the most out of this switch, ensure your PoE devices are within 100 meters of the switch for reliable power and data. Use Cat5e or better Ethernet cables for optimal performance. When mounting on a wall, place the switch in a well-ventilated area to prevent overheating. If you need to power more than four devices, consider cascading another switch via the uplink ports.
