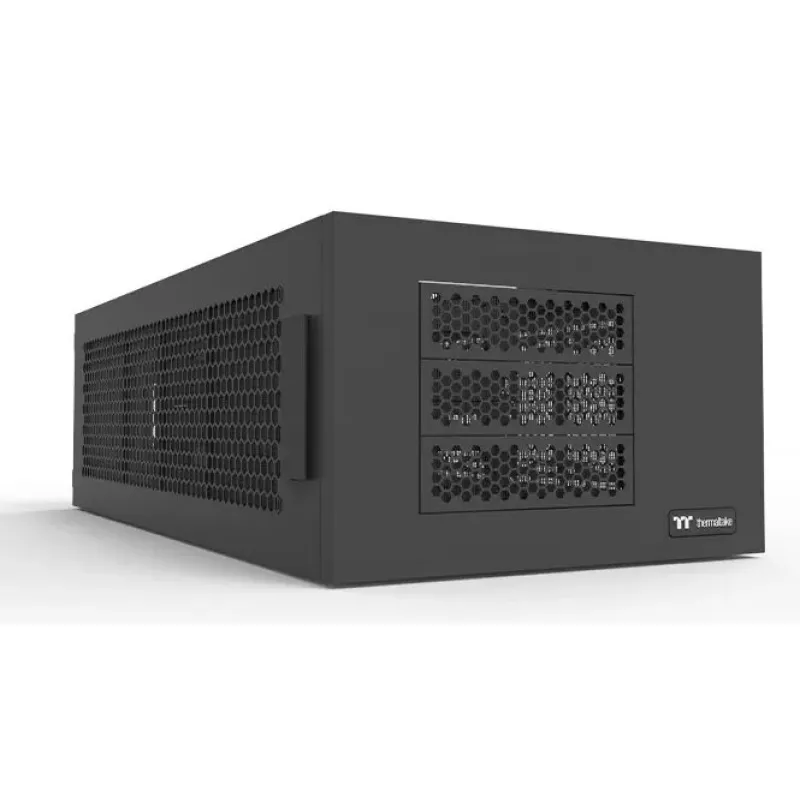

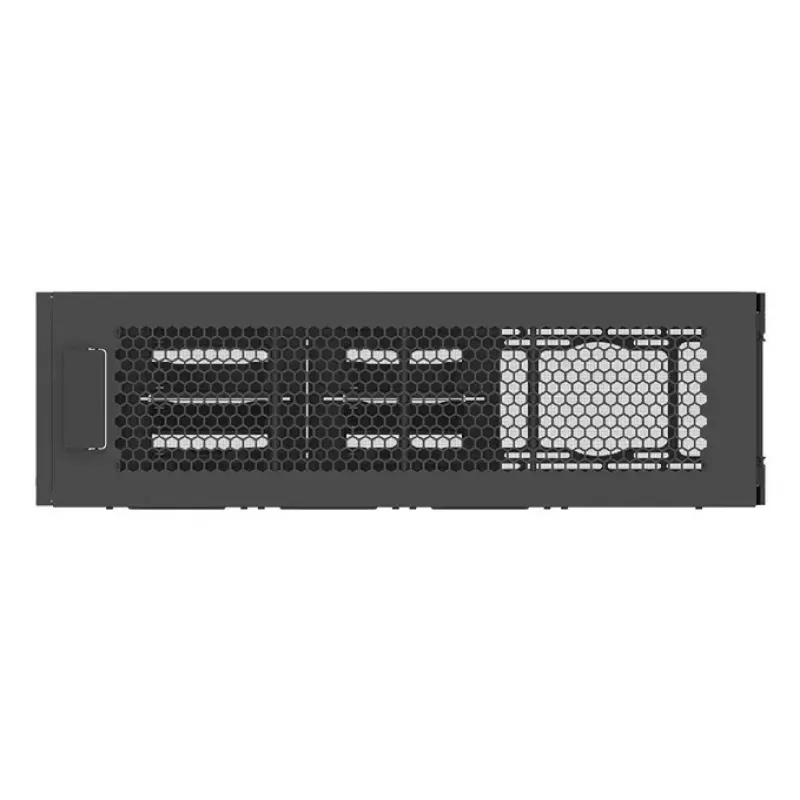

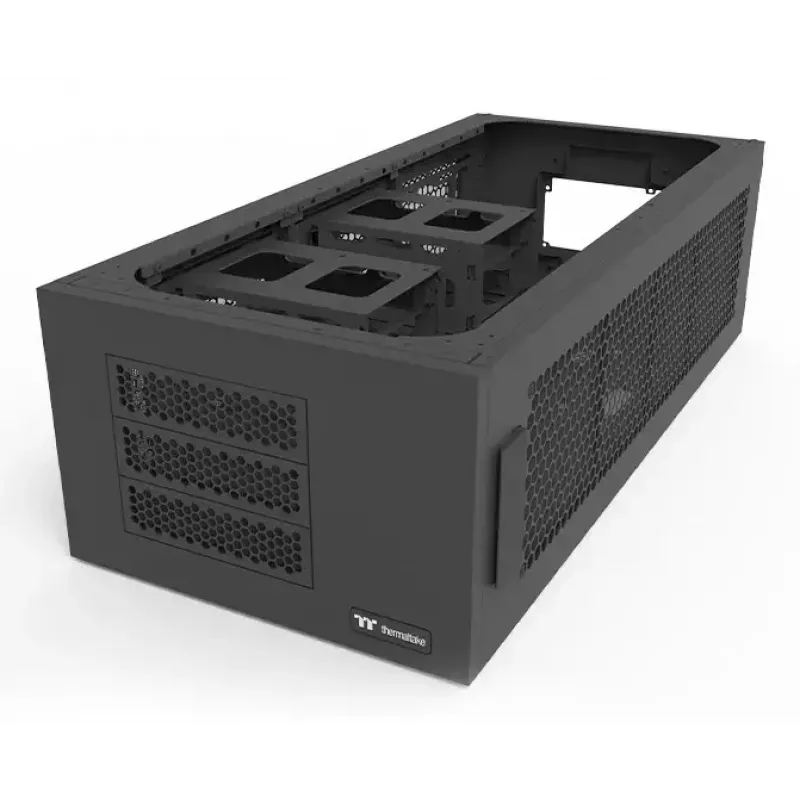

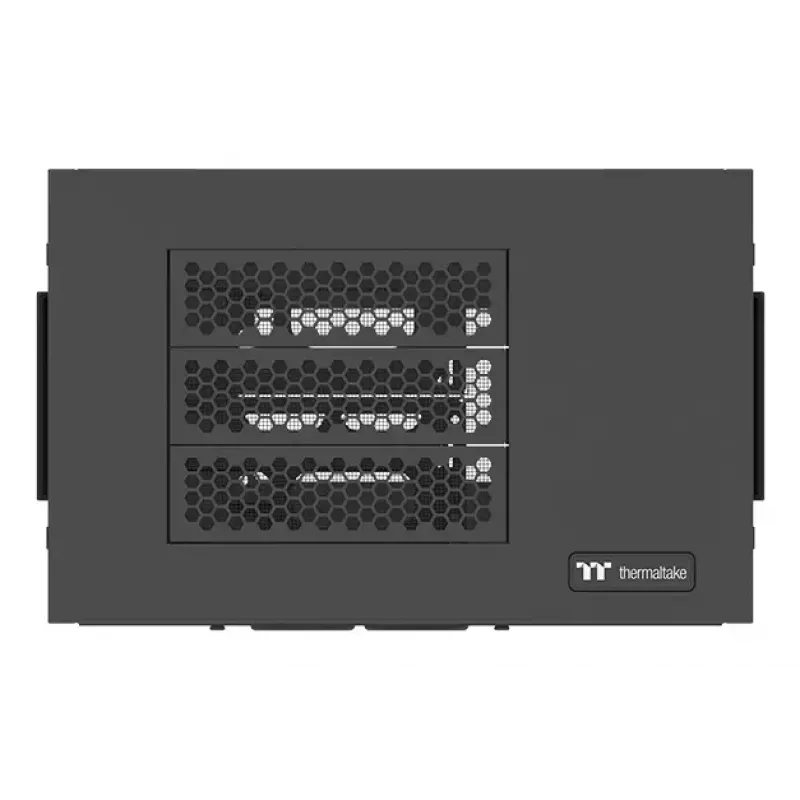

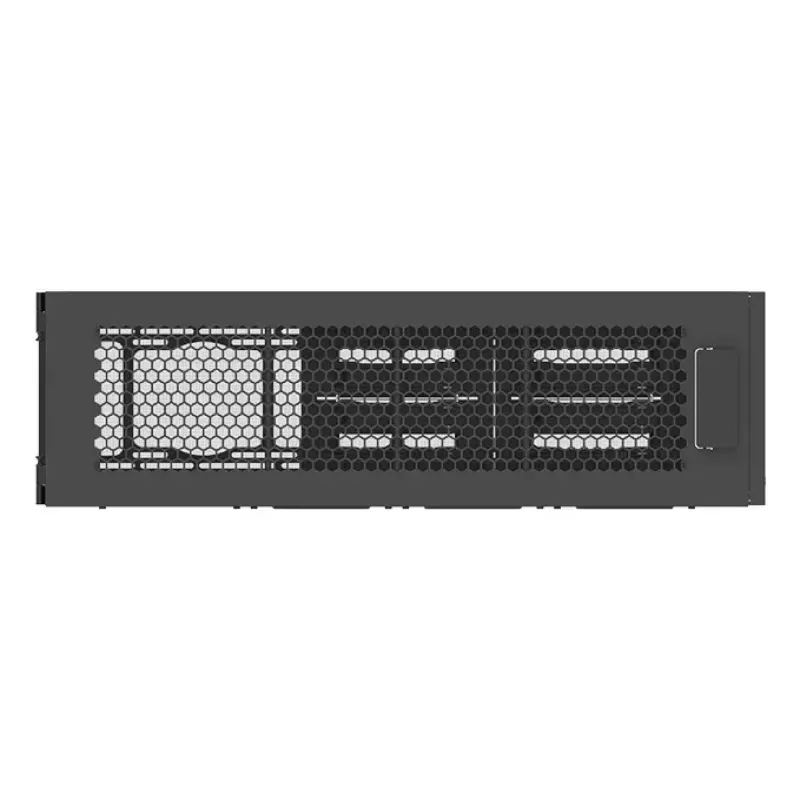

Thermaltake AX100 Black Full Tower Pedestal Expansion for AX700, 8x 2.5 inch/3.5 inch Bays, Dual 560mm Radiator Support, SPCC & Tempered Glass

The Thermaltake AX100 is a full-tower pedestal expansion engineered to multiply the storage, cooling, and power capabilities of the AX700 super tower chassis. Its strongest asset is the dual 560 mm radiator support on both sides, enabling extreme liquid cooling loops for high-performance workstations or server-style builds.

Advantages

The AX100 pedestal increases expandability of the AX700 chassis, enabling stacked configurations (top, bottom or both) for greater storage, improved liquid cooling or dual-system setups. Its support for multiple fan sizes and large radiators enables flexible cooling layouts, while integrated dust filters help protect internal components. The dismantlable modular design reduces installation complexity and access to internal mounting points.

Suitable for

• High-capacity storage builds using multiple 2.5" SSDs or 3.5" HDDs
• Advanced liquid cooling setups requiring large radiators and multiple fans
• Stacked chassis configurations for dual systems or extended expandability
• Workstation or server-style rack PC installations

Key specifications

• Supported drive sizes: 2.5" and 3.5"
• Number of 2.5" bays: 8
• Number of 3.5" bays: 8
• Fan support: up to eight 120 mm or 140 mm fans
• Radiator support: dual 560 mm radiators (both sides)
• Power supply: standard PS2 (ATX)
• Material: SPCC, Tempered Glass
• Side panel: 3 x 4mm Tempered Glass
• Motherboard support: E-ATX, ATX, Micro-ATX, Mini-ITX
• Expansion slots: 8
• Front I/O: USB 3.0 x 2, USB 2.0 x 2, USB 3.1 Gen 2 Type-C x 1, HD Audio x 1
• Max CPU cooler height: 180 mm
• Max GPU length: 440 mm (without reservoir), 320 mm (with reservoir)
• Max PSU length: 200 mm
• Dust filters: Top, Front, Bottom, Right Side

Recommendations

Pair the AX100 with the Thermaltake AX700 chassis to unlock its full potential. For silent operation, combine with high-static-pressure fans and a PWM fan hub. Use modular cables for a clean build and consider additional dust filters for dusty environments.
