Thermalright AXP90-X36 Black Low Profile CPU Cooler, 92mm PWM Fan, ITX, Intel & AMD

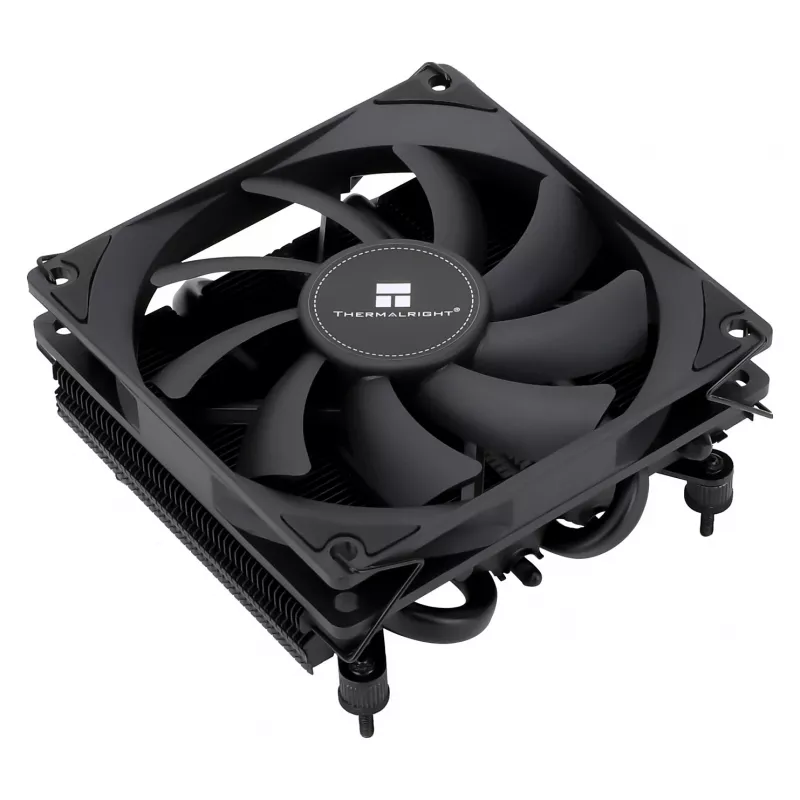

The Thermalright AXP90-X36 Black is a compact CPU cooler built for small form factor (ITX) systems, offering a blend of performance and low-profile design. Its 36mm height makes it ideal for tight cases, while the 92mm PWM fan and four copper heatpipes ensure efficient heat dissipation for mainstream processors.

Highlights

• Extremely low profile (36mm) for ITX and HTPC builds

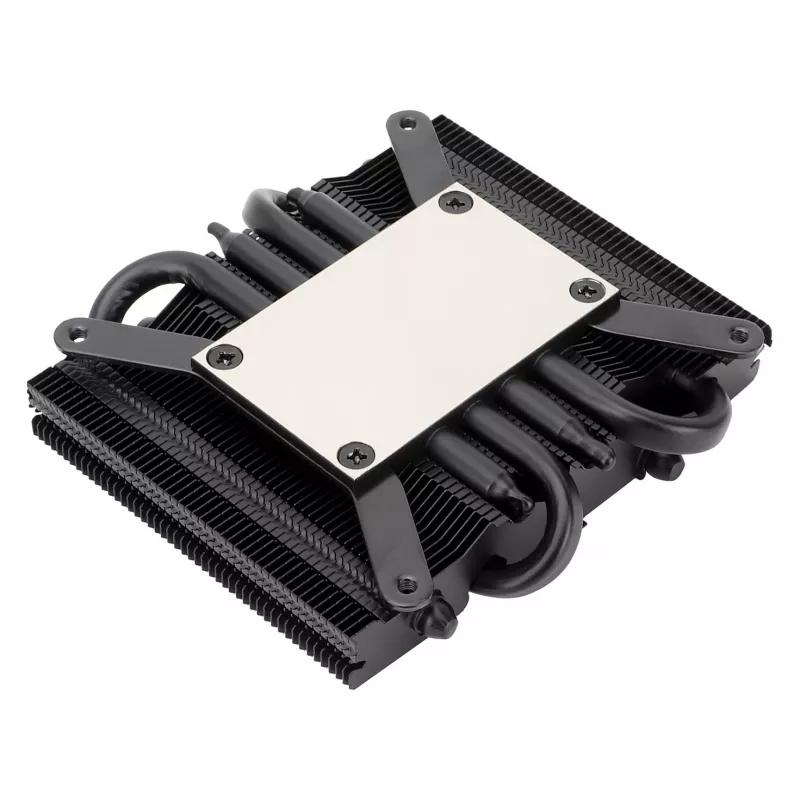

• 4 x 6mm copper heatpipes with nickel-plated copper base
• 92mm S-FDB bearing fan with PWM control (2700 RPM max)
• Supports Intel LGA115x/1200/1700 and AMD AM4/AM5 sockets

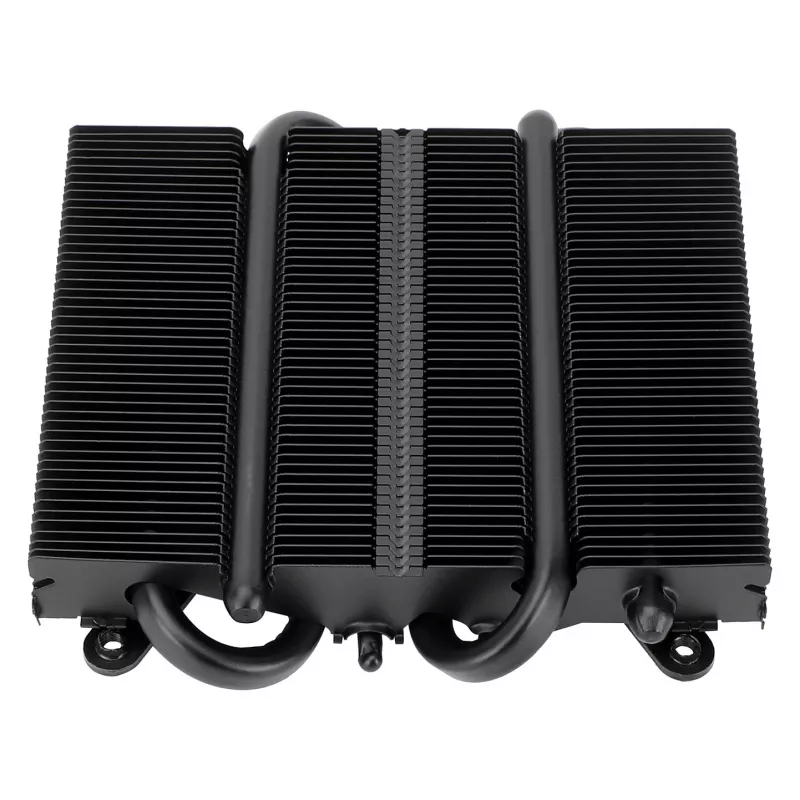

• Black anodized aluminum fins for corrosion resistance

In Daily Use

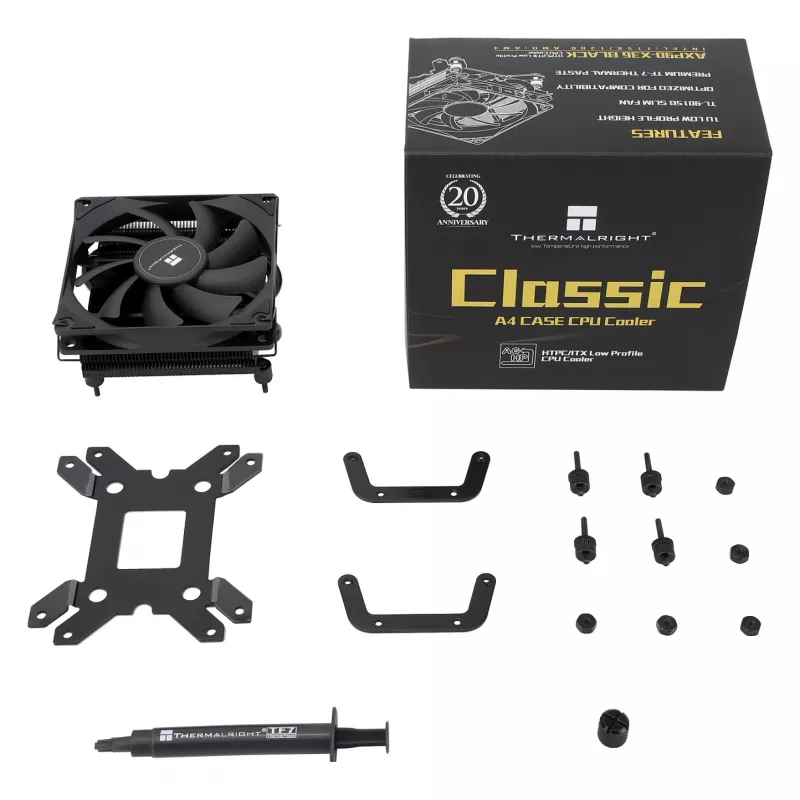

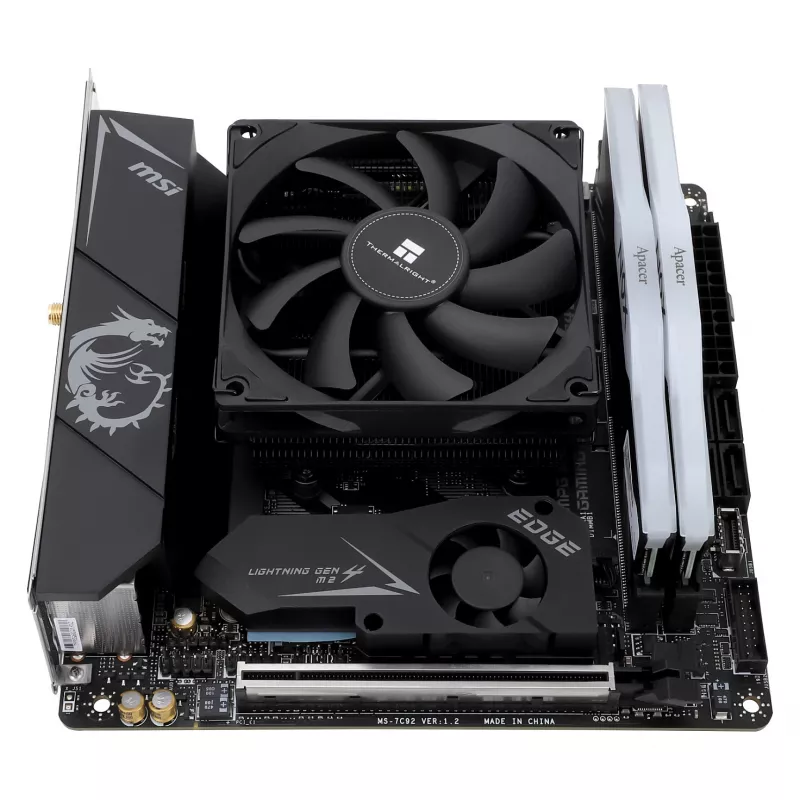

Installing the AXP90-X36 is straightforward thanks to the included mounting kit for both Intel and AMD platforms. The low profile allows it to fit under most side panels or in HTPC cases without clearance issues. The PWM fan adjusts speeds based on CPU temperature, keeping noise levels low during everyday tasks and ramping up only when needed. With a TDP rating of up to 130W, it's suitable for mainstream CPUs from Intel Core i5/i7 and AMD Ryzen 5/7 series.

Full Specifications

• Cooler Type: Air Cooler
• Overall Dimensions (with fan): 94.5mm x 95mm x 36mm
• Heatsink Dimensions: 94.5mm x 95mm x 21mm
• Fan Model: Thermalright TL-9015B
• Fan Dimensions: 92mm x 92mm x 15mm
• Fan Speed: 2700 RPM ±10%
• Maximum Airflow: 42.58 CFM
• Maximum Air Pressure: 1.33 mmH2O
• Noise Level: ≤22.4 dBA
• Bearing Type: S-FDB
• Fan Connector: 4-Pin PWM
• PWM Support: Yes
• Heatpipes: 4 x 6mm Copper
• Base Material: C1100 Pure Copper (Nickel Plated)
• Fin Material: Aluminum
• Socket Compatibility: Intel LGA1150/1151/1155/1156/1200/1700, AMD AM4/AM5

Final Note

The AXP90-X36 Black is a solid choice for users who prioritize case compatibility without sacrificing thermal performance. Its robust construction and proven design make it a reliable addition to any small form factor build.
