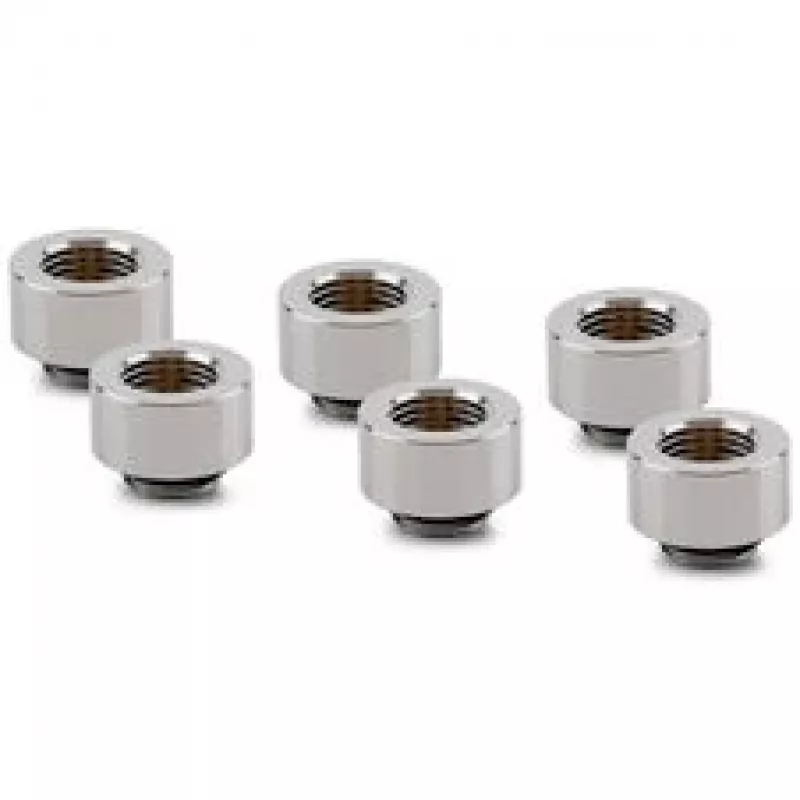

Thermal Grizzly DeltaMate Extender Fitting MF10, Gloss Nickel, 6-Pack

Clearance without compromise: the DeltaMate MF10 adds exactly 10 mm of male-to-female extension in a single, solid-brass fitting. Unlike stacking multiple adapters, this one-piece design keeps your loop clean and leak-resistant while solving tight port spacing on blocks, radiators, and distribution plates.

Highlights

• G1/4" male-to-female extender fitting with 10 mm added height
• Solid brass construction with high-gloss nickel plating for corrosion resistance
• Pre-installed O-ring on the male thread for leak-free installation
• Compatible with all standard PC water cooling components using G1/4" ports
• Six fittings per pack – ideal for multi-port builds or future upgrades
• 18 mm outer diameter fits recessed ports and tight clusters

In daily use

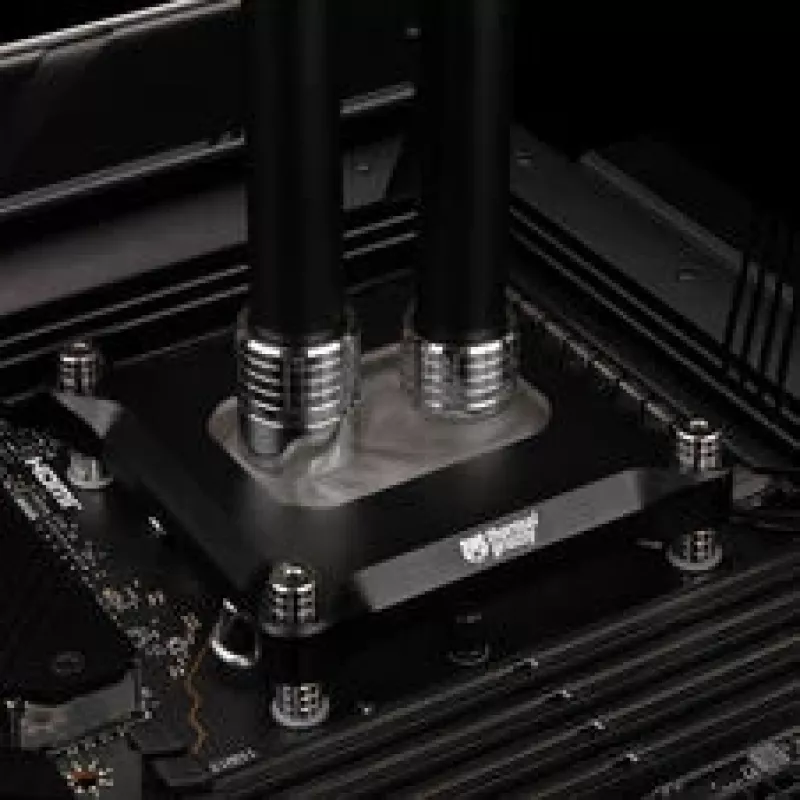

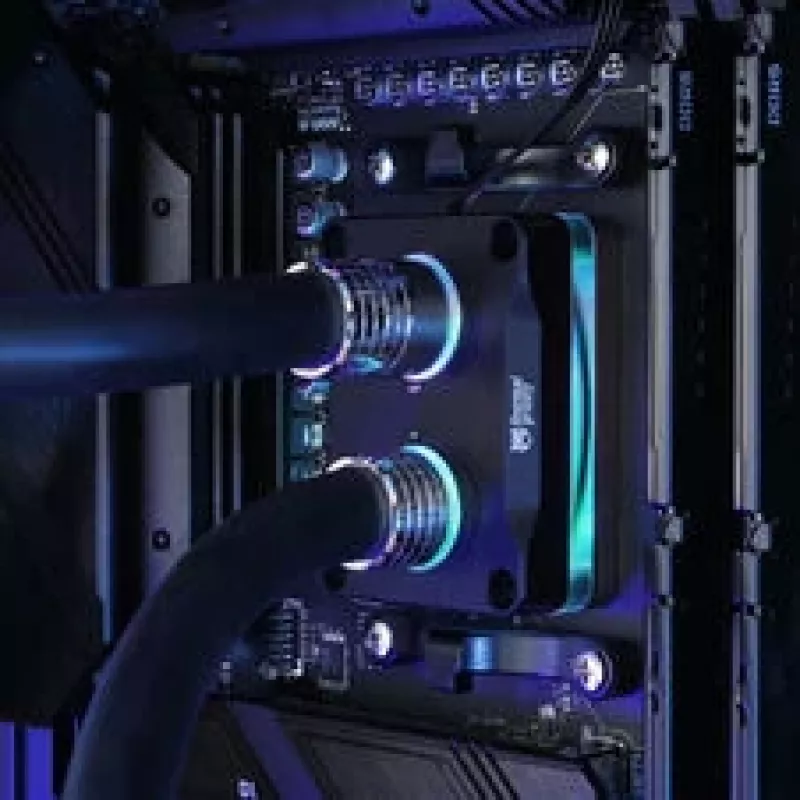

Lift a fitting above a pump top, space a temperature sensor, or create a cleaner tube run without adding multiple adapters. The female side accepts any standard G1/4" male fitting, while the male side threads directly into blocks, radiators, reservoirs, or distribution plates. The nickel finish resists tarnishing and matches other nickel-plated components, keeping your loop visually cohesive. With only 10 mm of extension, flow restriction is minimal, and the pre-installed O-ring ensures a reliable seal from the first turn.

Full specifications

• Product Type: Extender Fitting
• Fitting Series: DeltaMate
• Thread Size: G1/4"
• Thread Type: Male to Female (MF)
• Extension Length: 10 mm
• Material: Brass
• Surface Finish: Nickel Plated
• Color: Gloss Nickel
• Pack Quantity: 6 Fittings
• Compatibility: PC Water Cooling Systems
• Seal Type: Pre-installed O-ring
• Outer Diameter (per fitting): 18 mm
• Overall Height (per fitting): 10 mm
• Thread Length (Male): 5 mm
• Thread Length (Female): 5 mm
• Corrosion Resistance: High
• Application: Creating clearance, extending ports
• Fluid Compatibility: Water, Glycol-based coolants

Final note

For builders who demand both clearance and confidence, the DeltaMate MF10 delivers a mirror-like finish and a reliable seal in every fitting.
