Tenda TEF1109P-8-102W 9-Port Desktop PoE Switch with 8 PoE+ Ports, 102W Budget, 10/100 Mbps

Small offices and retail shops often need to power IP cameras, VoIP phones, and wireless access points without running separate electrical lines. The Tenda TEF1109P-8-102W answers that need with eight PoE+ ports and a 102W power budget, all in a compact desktop switch. Connect your devices with standard Ethernet cables and let the switch deliver both data and power.

Key specifications

• 9 total ports: 8 PoE+ 10/100 Mbps ports + 1 uplink port
• PoE standard: IEEE 802.3af/at, up to 30W per port
• Total PoE power budget: 102W
• Switching capacity: 1.8 Gbps, forwarding rate: 1.34 Mpps
• MAC address table: 4K entries, jumbo frame support up to 1536 bytes
• Special modes: Extend (250m), VLAN, QoS
• Fanless design for silent operation, desktop form factor
• External power adapter: DC 51V/2.5A, 6KV lightning protection

Why choose it

This switch simplifies deployment by combining power and data over a single cable. The 102W budget supports multiple PoE devices simultaneously, and the fanless metal housing ensures quiet, reliable operation in noise-sensitive environments. Advanced features like VLAN and QoS help segment traffic and prioritize critical data, while the Extend mode allows cable runs up to 250 meters for cameras in remote locations.

Ideal use cases

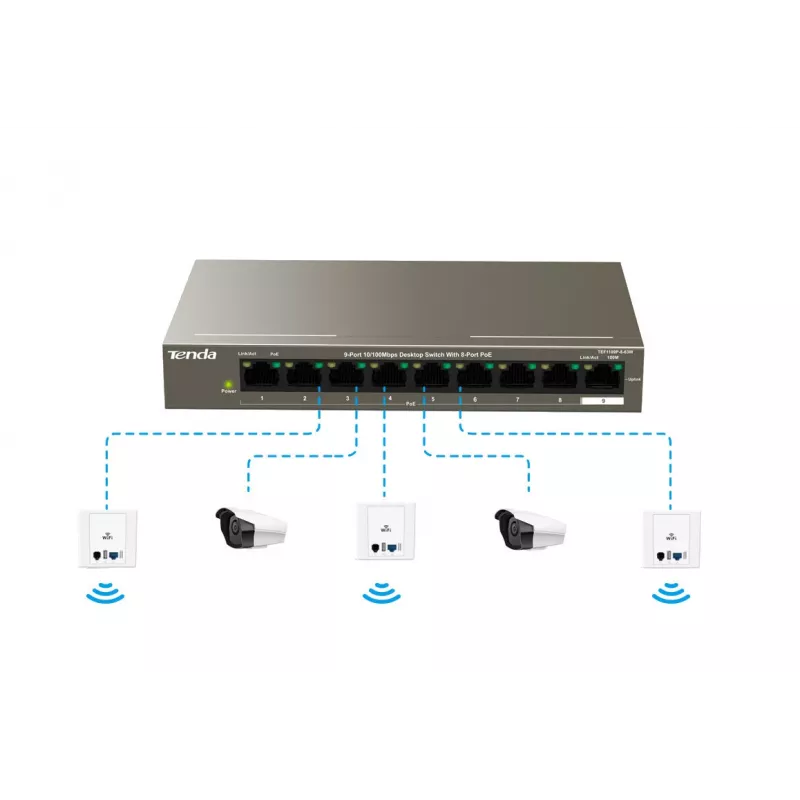

• IP surveillance systems with up to eight PoE cameras
• Small office networks with VoIP phones and access points
• Retail or hospitality environments requiring silent operation
• Installations where power outlets are limited or hard to reach

Good to know

The TEF1109P-8-102W is plug-and-play, requiring no configuration for basic use. Its compact size fits easily on a desk or shelf, and the included external power adapter keeps the unit lightweight. With 6KV lightning protection, it offers added durability for challenging electrical environments.
