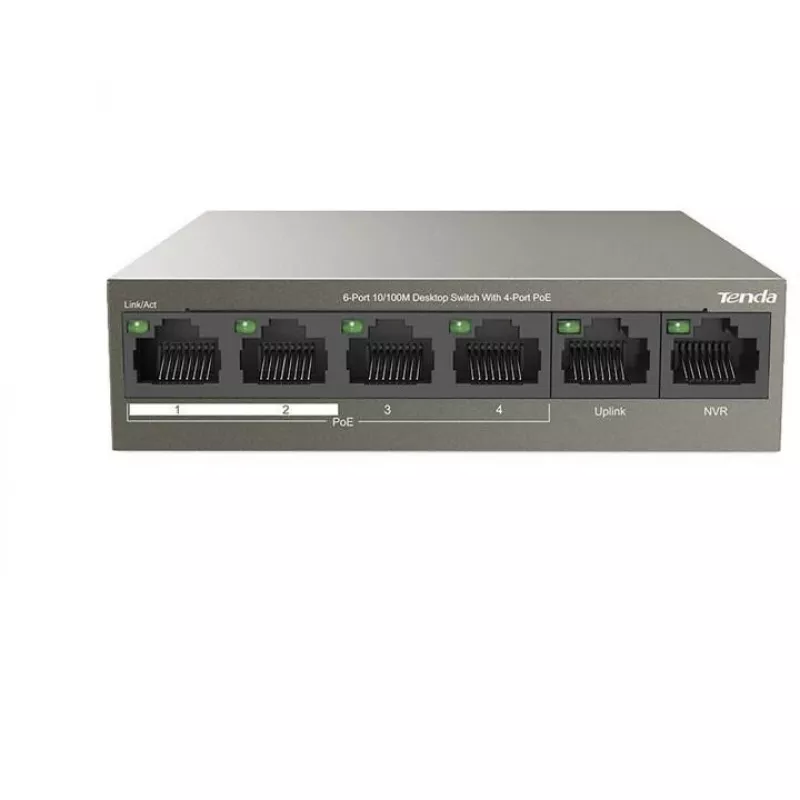

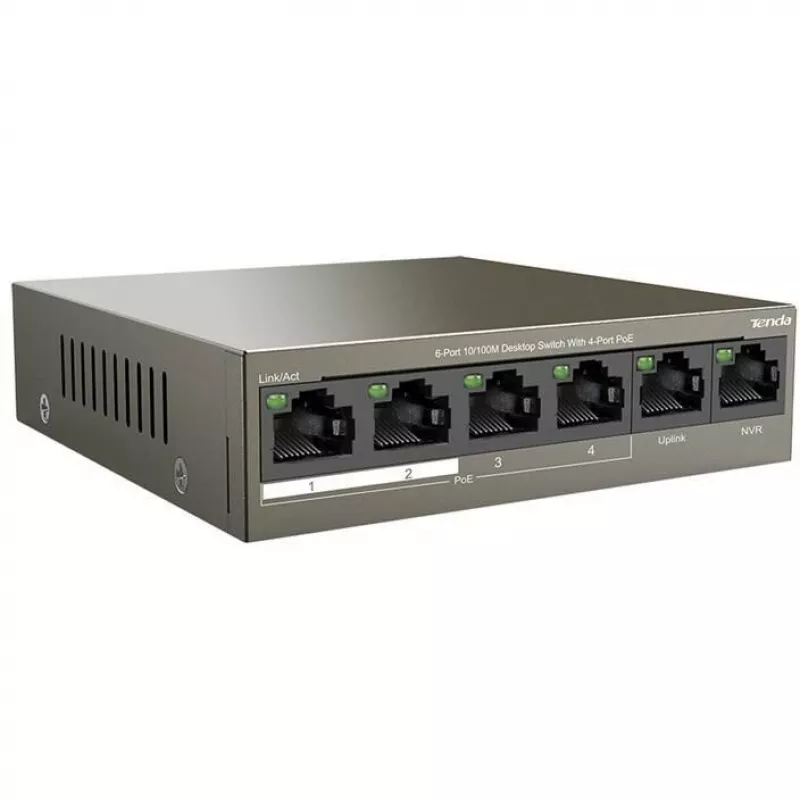

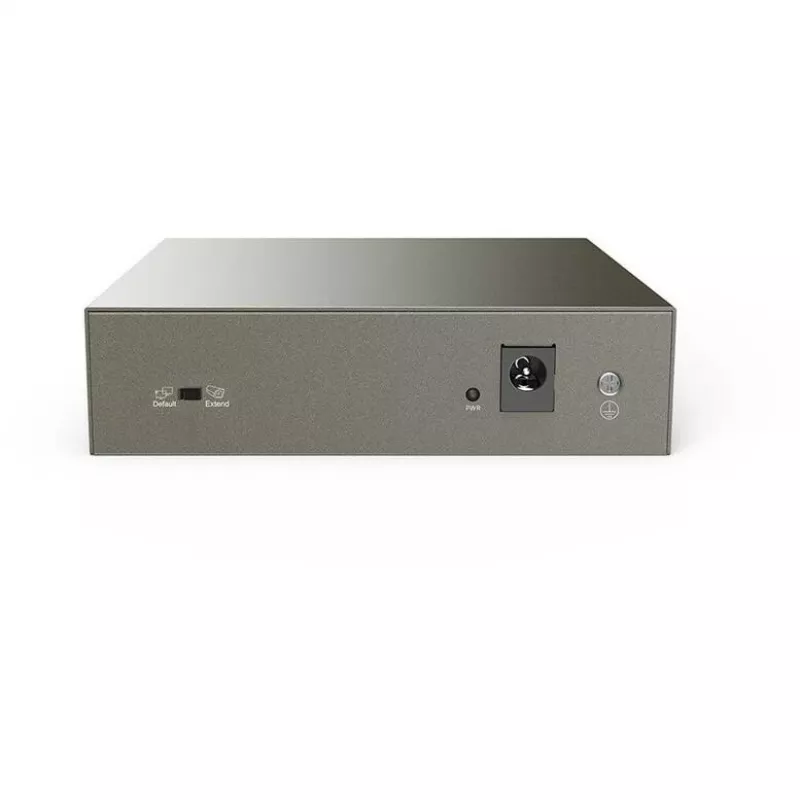

Tenda TEF1106P-4-63W PoE+ Switch, 6-Port Fast Ethernet, 4 PoE+ Ports, 63W Budget, Fanless Desktop

The Tenda TEF1106P-4-63W is a high-performance PoE+ switch designed for small and medium businesses, offering reliable power and data transmission over a single Ethernet cable. With 4 PoE+ ports and a total power budget of 63W, it supports IEEE 802.3af/at standards, delivering up to 30W per port. This fanless desktop switch ensures silent operation and energy efficiency, making it ideal for office environments.

Advantages

• Cost-effective PoE+ solution for IP cameras, VoIP phones, and wireless access points
• Fanless design eliminates noise and reduces dust intake, enhancing reliability
• Plug-and-play installation with no configuration required
• 6KV lightning protection for increased durability in outdoor or industrial setups

Suitable for

• Small office/home office (SOHO) networks
• Surveillance systems with PoE cameras
• Wireless access point deployments
• VoIP phone systems

Key specifications

• Ports: 6 x 10/100 Mbps Fast Ethernet (4 PoE+ ports, 2 uplink ports)
• PoE Standard: IEEE 802.3af/at
• Total PoE Budget: 63W (up to 30W per port)
• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.89 Mpps
• MAC Address Table: 2K
• Jumbo Frame Support: 2 KB
• Fanless: Yes
• Power Input: AC 100-240V, 50/60Hz (adapter included)
• Mounting: Desktop
• Lightning Protection: 6KV

Recommendations

For optimal performance, use quality Cat5e or higher Ethernet cables. This switch is not rack-mountable; consider a shelf or desktop placement. Ensure total PoE power consumption does not exceed 63W.
