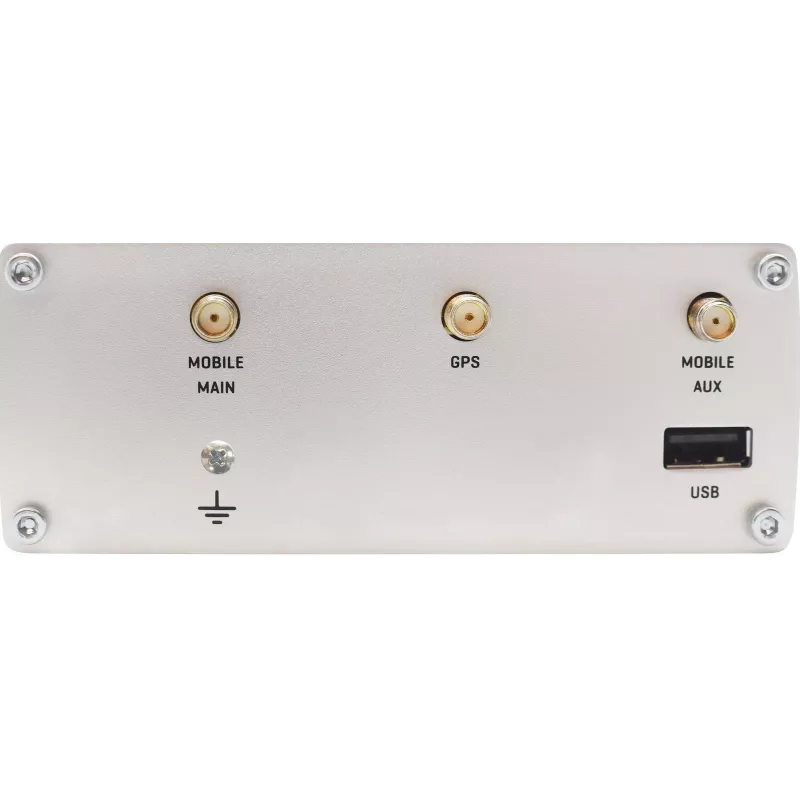

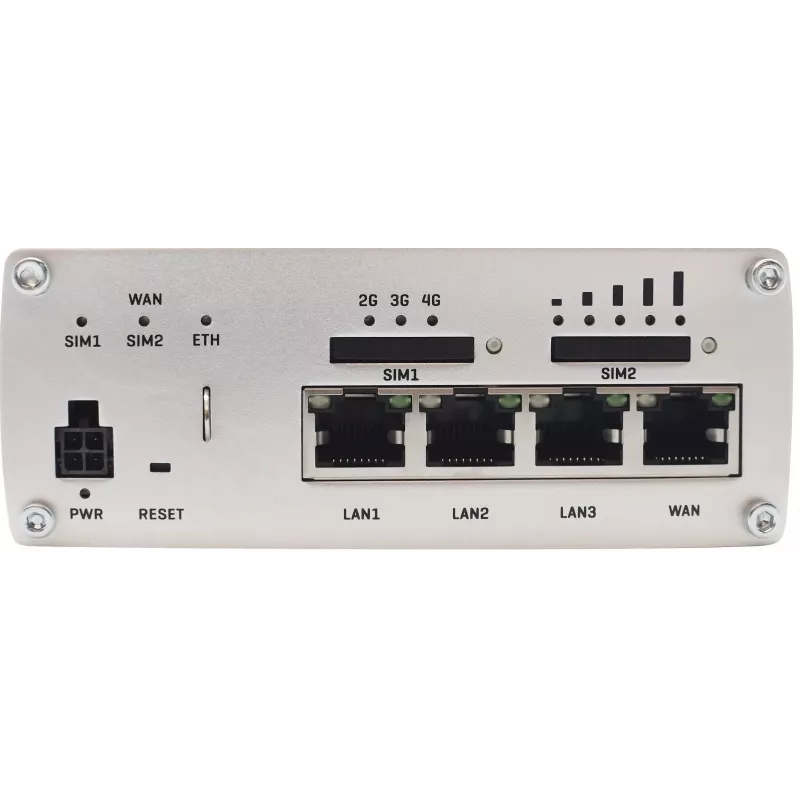

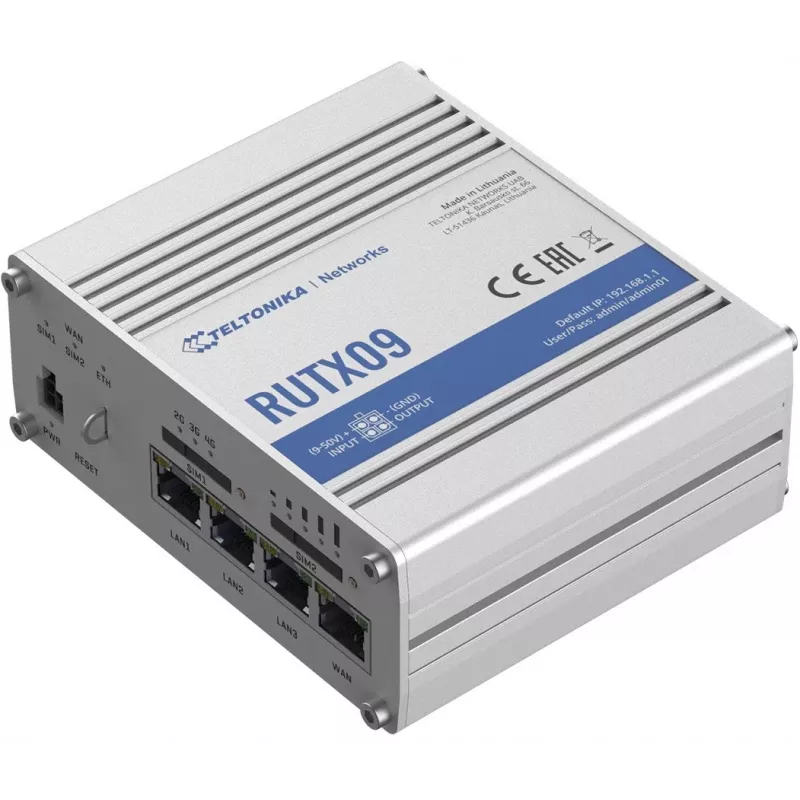

Teltonika RUTX09 Industrial 4G LTE-A Cat 6 Cellular Router with 4-Port Gigabit Switch, Dual SIM, GNSS

The Teltonika RUTX09 is a high-performance industrial cellular router designed for reliable 4G LTE-A Cat 6 connectivity. With dual SIM failover, four Gigabit Ethernet ports, and integrated GNSS, it is ideal for mission-critical applications in transportation, energy, and remote monitoring.

Advantages

Experience ultra-fast LTE-A download speeds up to 300 Mbps with carrier aggregation. The RUTX09 ensures uninterrupted connectivity via dual SIM slots with automatic failover. Its rugged design supports wide operating temperatures and DIN rail mounting, making it perfect for harsh environments.

Suitable for

• Industrial IoT and M2M applications
• Remote monitoring and surveillance
• Transportation and fleet management
• Smart grid and energy infrastructure

Key specifications

• Cellular standard: 4G LTE-A Cat 6 (DL 300 Mbps, UL 50 Mbps)
• Ethernet: 4 x Gigabit RJ45 ports (1 configurable WAN)
• SIM slots: 2 x Mini SIM (2FF) with failover
• GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
• Processor: Quad-core ARM Cortex A7 710 MHz
• Memory: 256 MB DDR3 RAM, 256 MB Flash
• Operating system: RutOS (OpenWrt based)
• Power input: 9-50 VDC
• Operating temperature: -40°C to 75°C
• Mounting: DIN rail or wall mount
• VPN: OpenVPN, IPsec, GRE, PPTP, L2TP, SSTP
• Management: RMS, Web UI, CLI, SNMP, JSON-RPC, MQTT

Recommendations

For optimal performance, use high-gain LTE antennas and ensure proper ventilation. The RUTX09 is compatible with Teltonika RMS for centralized remote management.
