Omni-directional antenna Teltonika PR1ICC60 28 dBi 0.617-4.2 GHz

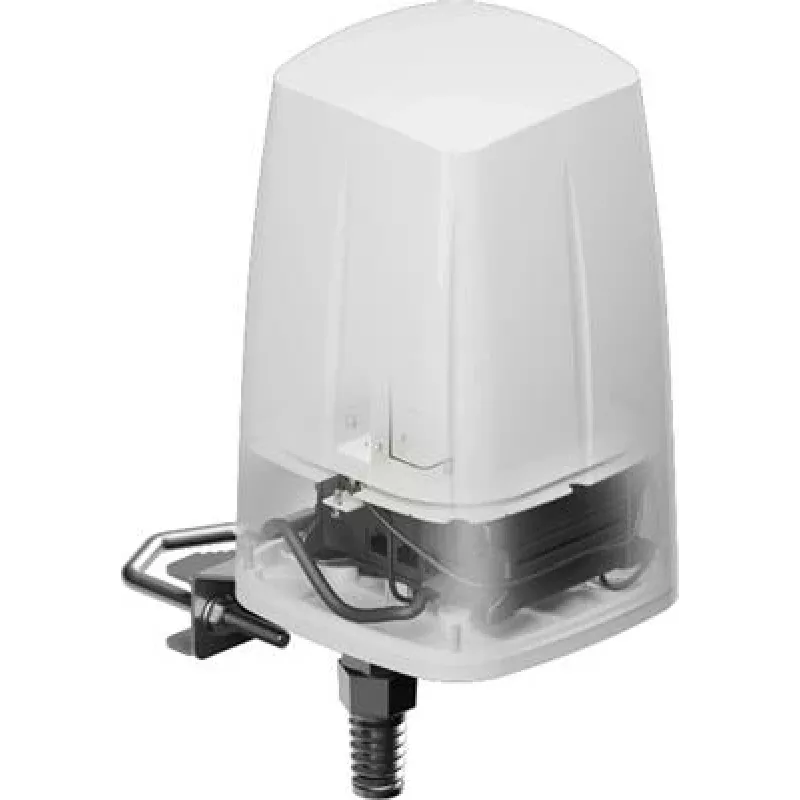

The Teltonika PR1ICC60 is an omni-directional outdoor LTE/Wi‑Fi/GPS antenna compatible with RUT9-series routers. It provides multi-band coverage across 0.617–4.2 GHz with a maximum gain of 28 dBi and a male SMA connector, offering a compact weather-resistant solution for improving wireless signal reception and transmission.

Advantages

The antenna delivers high gain up to 28 dBi across a wide frequency range, supports LTE, Wi‑Fi and GPS signals in a single housing, and uses a common male SMA connector for straightforward integration with compatible routers. Its compact dimensions (160 × 189 × 347 mm) and RoHS compliance make it suitable for outdoor installations where space and regulatory conformity are important.

Suitable for

• Outdoor LTE signal coverage improvement for RUT9-series routers
• Enhancing Wi‑Fi reception in outdoor deployments
• Applications requiring combined LTE/Wi‑Fi/GPS antenna in one unit

Key specifications

• Model: PR1ICC60
• Type: Omni-directional outdoor antenna
• Frequency range: 0.617–4.2 GHz
• Maximum gain: 28 dBi
• Connector: Male SMA
• Dimensions: 160 × 189 × 347 mm (W × D × H)
• Compliance: RoHS
• Brand: Teltonika
• MPN: PR1ICC60, EAN: 4779051841646

How to use

Mount the antenna outdoors in a location with clear line of sight to the target towers or access points. Connect the male SMA connector to the corresponding antenna port on a RUT9-series router or compatible device. Securely fasten the antenna using suitable brackets or mounting hardware, and orient it vertically for omni-directional coverage. After installation, verify signal strength and adjust position if needed to achieve optimal performance.

Recommendations

Install the antenna at elevated positions away from large metal obstructions, ensure weatherproofing of any cable connections, and verify compatibility with the router antenna port before mounting.
