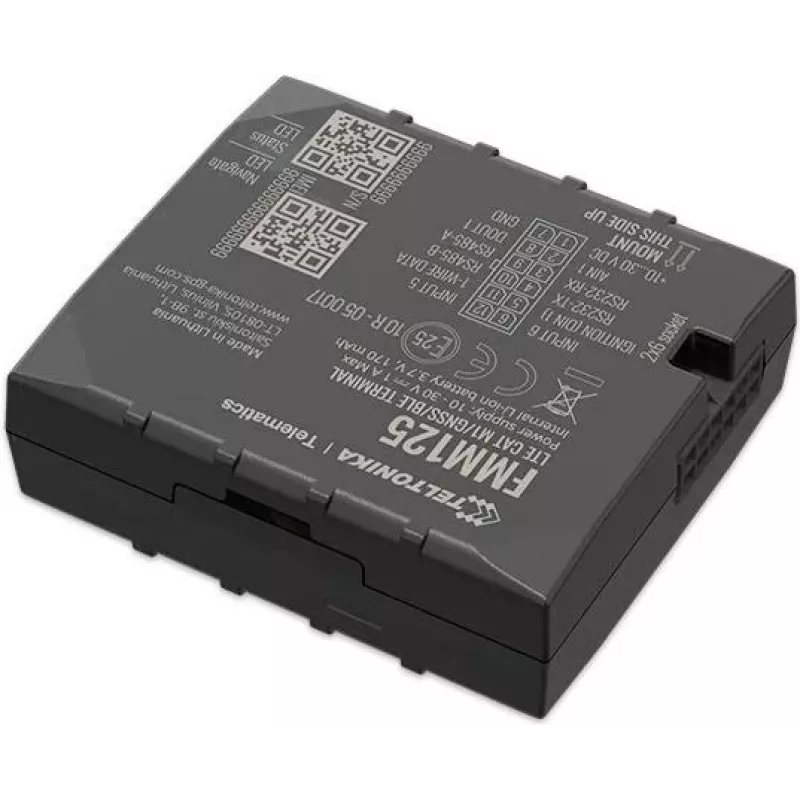

Teltonika FMM125 GPS Tracker 128 MB Black (FMM1257VXW01)

The Teltonika FMM125 is a compact and versatile GPS tracker designed for fleet management, asset tracking, and vehicle monitoring. With support for multiple GNSS systems and LTE Cat 1 connectivity, it provides reliable real-time location data. The device features a built-in 170 mAh Li-Ion battery, multiple I/O interfaces, and Bluetooth 4.0 LE for short-range communication. Its robust design ensures operation in extreme temperatures from -40 °C to +85 °C, making it suitable for various environments.

Advantages

Multi-constellation GNSS support (GPS, GLONASS, GALILEO, BEIDOU) ensures accurate positioning even in challenging conditions. The device offers flexible power input (10-30 V DC) and includes digital and analog inputs for monitoring external sensors. With an IP41 rating, it is protected against solid objects and dripping water. The internal accelerometer enables motion detection and power-saving sleep modes.

Suitable for

• Fleet management and vehicle tracking
• Asset tracking for containers, trailers, and equipment
• Personal and pet tracking
• E-scooter and micromobility tracking

Key specifications

• Network: LTE Cat 1, GSM/GPRS
• GNSS: GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS
• Internal memory: 128 MB
• Battery: 170 mAh Li-Ion (3.7 V)
• Input voltage: 10 - 30 V DC
• Digital inputs: 3 (configurable)
• Digital outputs: 2 (open collector)
• Analog inputs: 2 (configurable)
• Communication interfaces: 1-Wire, RS232, RS485
• Bluetooth: 4.0 LE
• Accelerometer: Yes
• Operating temperature: -40 °C to +85 °C
• Protection rating: IP41
• SIM card: Micro-SIM
• Antennas: Internal GNSS, GSM, Bluetooth
• USB: Micro-USB 2.0
• Colour: Black

Recommendations

For optimal performance, use a high-quality Micro-SIM card with an active data plan. Ensure the device is mounted in a location with clear sky view for GNSS reception. The FMM125 is ideal for applications requiring reliable tracking and remote monitoring.
