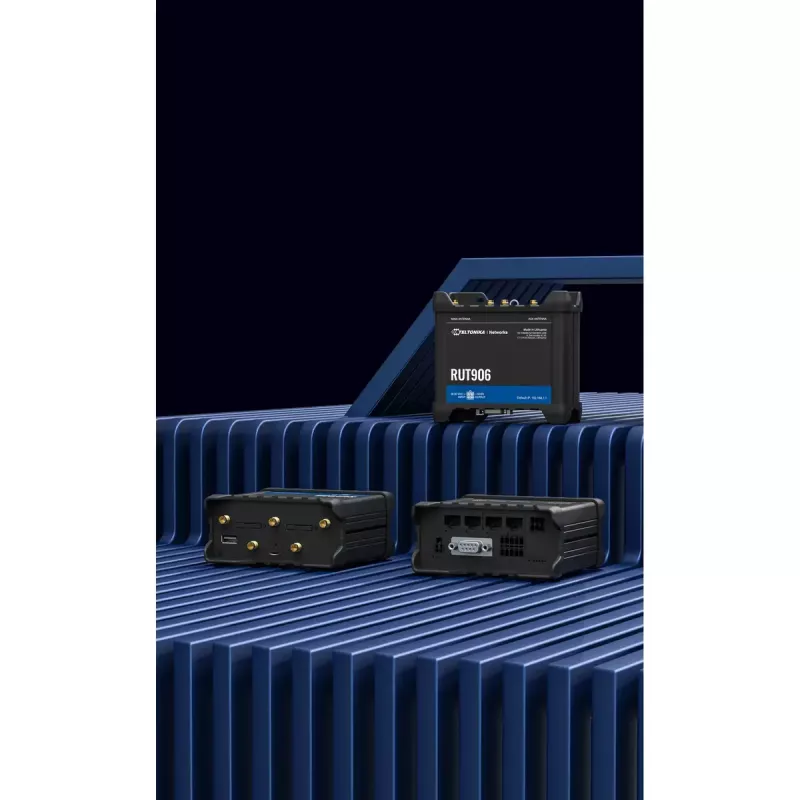

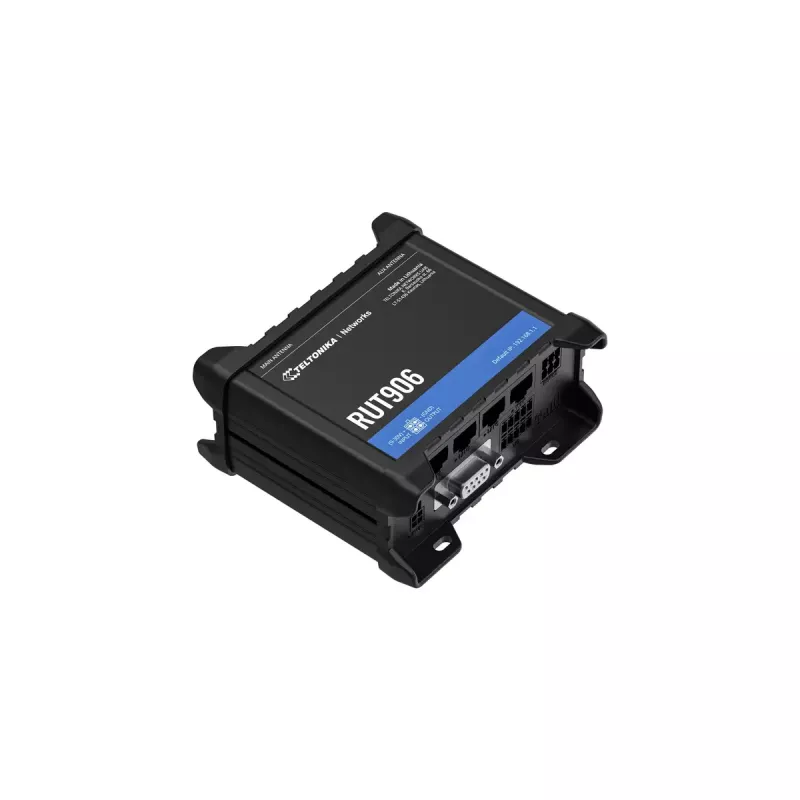

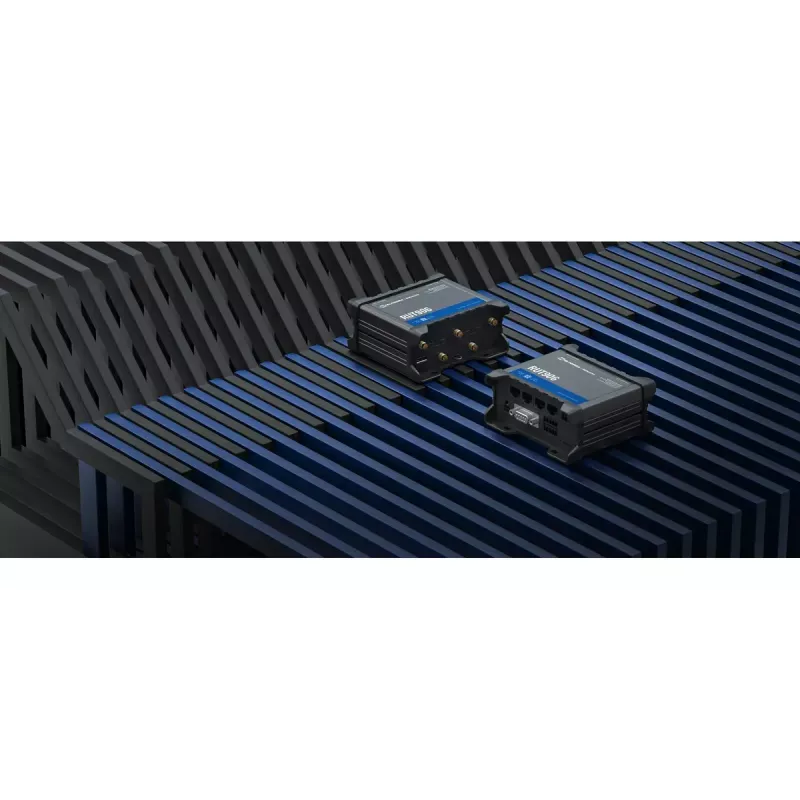

Cellular network router RUT906 2.4 GHz Wi-Fi 802.11b/g/n

Cellular 4G router for industrial IoT applications supporting serial interfaces RS232 and RS485, MQTT, BACnet, I/Os, Ethernet and GNSS. The device provides reliable mobile connectivity for remote monitoring and control, and includes failsafe features such as Dual SIM, automatic failover and backup WAN to maintain continuous network access.

Advantages

The 4G cellular router integrates multiple communication protocols and interfaces for flexible industrial connectivity. Built-in GNSS enables location-aware applications. Redundant connectivity with Dual SIM, auto-failover and backup WAN increases uptime and reduces risk of connection loss. Support for RS232/RS485, MQTT and BACnet allows integration with a wide range of industrial controllers and sensors.

Key specifications

• Cellular: 4G LTE
• Serial interfaces: RS232, RS485
• Protocols: MQTT, BACnet
• Ethernet: LAN/WAN support
• GNSS: built-in positioning
• Failsafe: Dual SIM, automatic failover, backup WAN
• I/Os: digital inputs/outputs supported

How to use

Install the router in a suitable industrial location with access to power and cellular signal. Connect Ethernet, serial (RS232/RS485) or I/O lines to the corresponding ports and configure network and protocol settings through the device web interface or management software. Insert one or two SIM cards as required; the router will use automatic failover between SIMs and WAN connections to preserve connectivity. Enable GNSS if location data is needed for your application.

Recommendations

Place the router where it receives optimal cellular reception and ensure proper grounding. Regularly verify firmware and configuration backups, and test failover behavior after installation to confirm redundant connectivity functions as expected.
