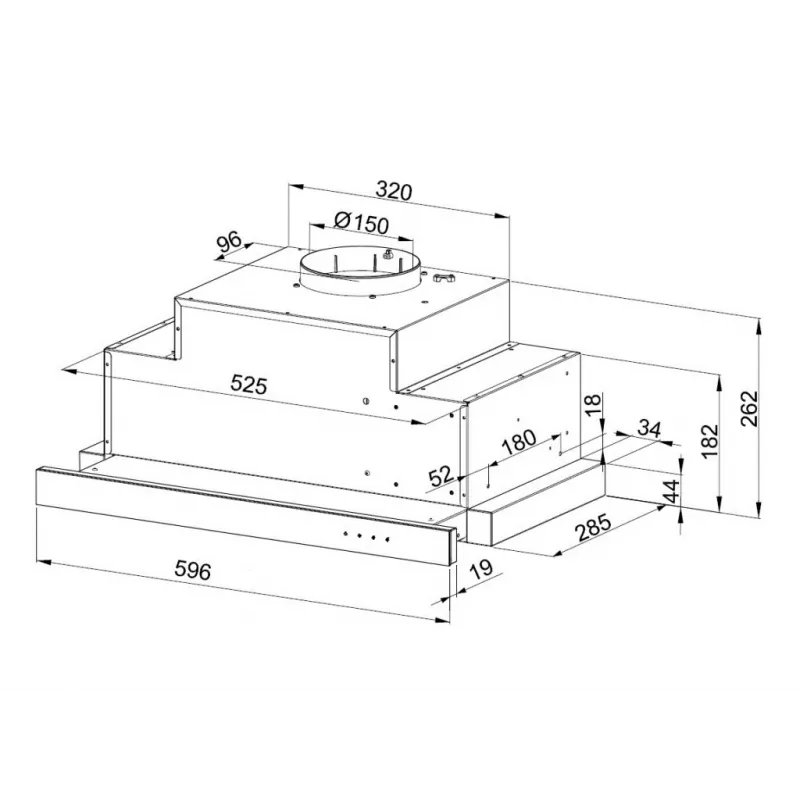

Telescopic kitchen hood MAAN Corona Touch Bis 60, 600 mm, carbon filter, 635 m³/h, touch control

Telescopic built-in kitchen hood MAAN Corona Touch Bis 60, 600 mm wide, with steel and tempered glass housing. The hood is supplied with an included motor, an aluminium washable grease filter and a carbon filter for recirculating operation. Front touch controls operate lighting and three fan speeds; lighting is provided by a single 11 W bulb positioned at the back. Designed for either ducted extraction or recirculation, the hood reaches a maximum extraction capacity of 635 m³/h and has an annual energy consumption of 54 kWh (energy class B).

Advantages

The telescopic MAAN Corona Touch Bis 60 combines a tempered glass and steel finish with touch front controls for compact built-in installation. It offers a washable aluminium grease filter and a replaceable carbon filter for recirculation, three speed settings and relatively high maximum extraction power. The included motor and back lighting with an 11 W bulb simplify installation and everyday use while maintaining an energy efficiency class B rating.

Suitable for

• Small to medium-sized kitchens
• Built-in installation above a cooktop
• Homes needing ducted extraction or recirculating ventilation with carbon filter
• Users who prefer touch controls and concealed telescopic design

Key specifications

• Width: 600 mm
• Maximum extraction flow: 635 m³/h
• Number of speeds: 3
• Noise level: 48–68 dB (low–high)
• Annual energy consumption: 54 kWh
• Energy efficiency class: B
• Lighting: 1 × 11 W bulb (rear position)
• Grease filter: Washable aluminium
• Extraction type: Ducted or recirculating (carbon filter included)
• Controls: Front touch control
• Housing material: Steel and tempered glass

How to use

Install the MAAN Corona Touch Bis 60 as a telescopic built-in hood above the cooktop following the supplied user manual and safety instructions. Select ducted or recirculating configuration depending on your ventilation setup and fit the carbon filter when using recirculation. Use the front touch panel to switch the lighting and select one of three fan speeds. Replace or wash the aluminium grease filter regularly and change the carbon filter according to the manufacturer’s guidance to maintain extraction performance.

Recommendations

Do not install without reading the instructions. For best performance, operate the hood at higher speed while cooking heavily and routinely clean or replace filters; ensure correct ducting if using extraction mode.
