Techly Wall Mount for LED LCD TV 42-80 Ultra Slim Fixed H400mm” ICA-PLB 840

The Techly ICA-PLB-840 is a universal fixed wall bracket designed for flat LED and LCD TVs from 42" to 80". It supports a maximum load of 60 kg and accepts VESA patterns up to 800 x 400 mm, offering a stable and low-profile mounting solution for home, office or commercial spaces.

Advantages

This fixed bracket provides a slim 22 mm distance from the wall and a sturdy construction that supports large screens up to 80" and 60 kg. The design includes square openings to simplify cable routing and safety screws that lock the TV in place after installation. The bracket is finished in black and comes with the necessary mounting accessories and instructions.

Suitable for

• Mounting LED/LCD TVs 42"–80" in living rooms or bedrooms
• Installing displays in offices, meeting rooms or reception areas
• Commercial installations in shops, restaurants or public areas

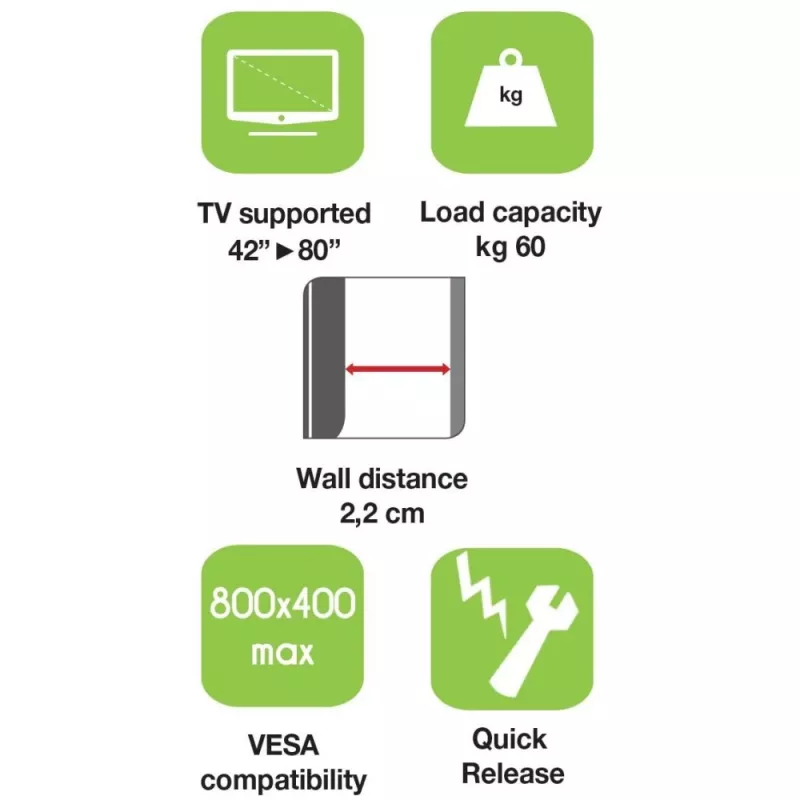

Key specifications

• Maximum screen size: 80"
• Maximum weight capacity: 60 kg
• VESA compatibility: up to 800 x 400 mm
• Bracket type: fixed support
• Distance from wall: 22 mm

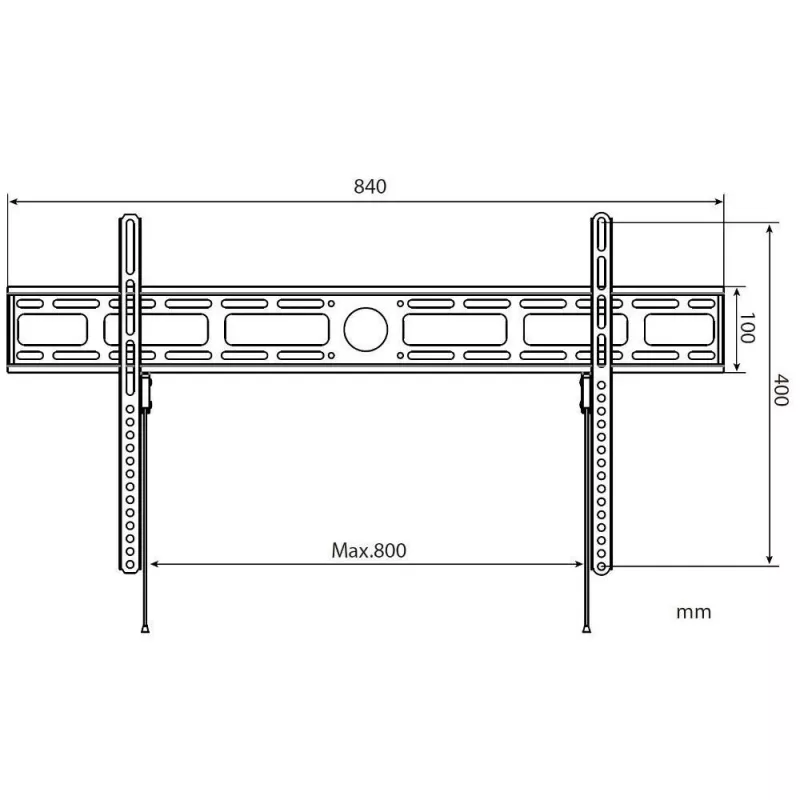

• Dimensions: 850 x 420 x 22 mm
• Colour: black

How to use

Attach the wall plate to a suitable load-bearing wall using the supplied plugs and screws, aligning the bracket so the VESA pattern matches the TV mounting points. Secure the TV to the bracket, use the safety screws to lock the set in place, and route cables through the square openings to keep them organized. Follow the included installation instructions for torque and fastening recommendations.

Recommendations

Install on a structural wall or verify wall anchor suitability for the TV weight. Do not exceed the 60 kg maximum load and ensure the selected VESA pattern is within 800 x 400 mm. For safety, use all supplied fasteners and tighten safety screws after mounting.
