Techly Extractor HDMI Audio Stereo/Audio 5.1 Channel 4K 3D IDATA HDMI-VGA8

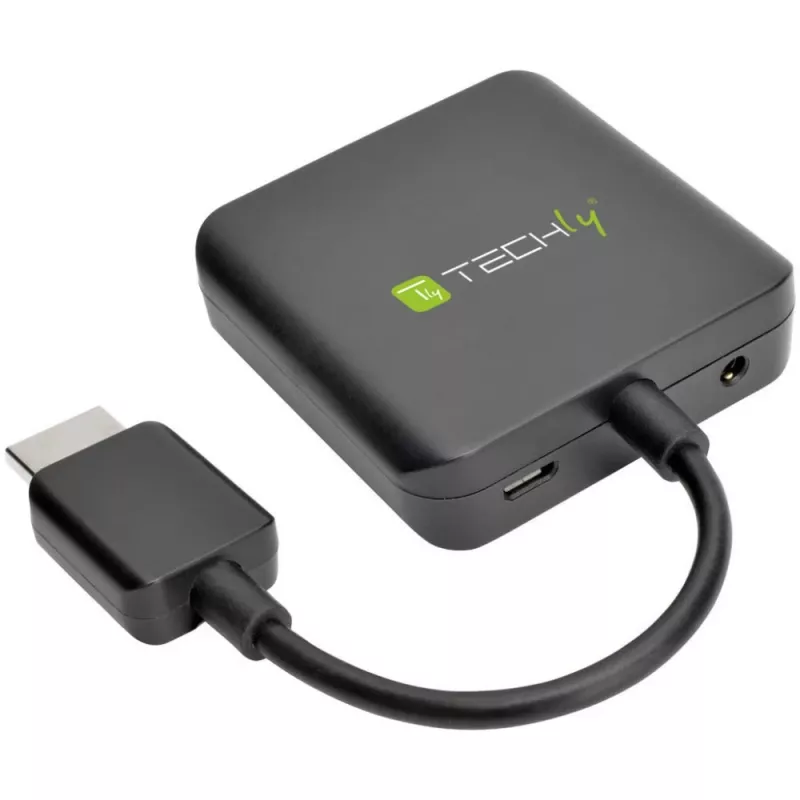

This product is a HDMI audio extractor at resolutions up to 4Kx2K @ 30Hz.

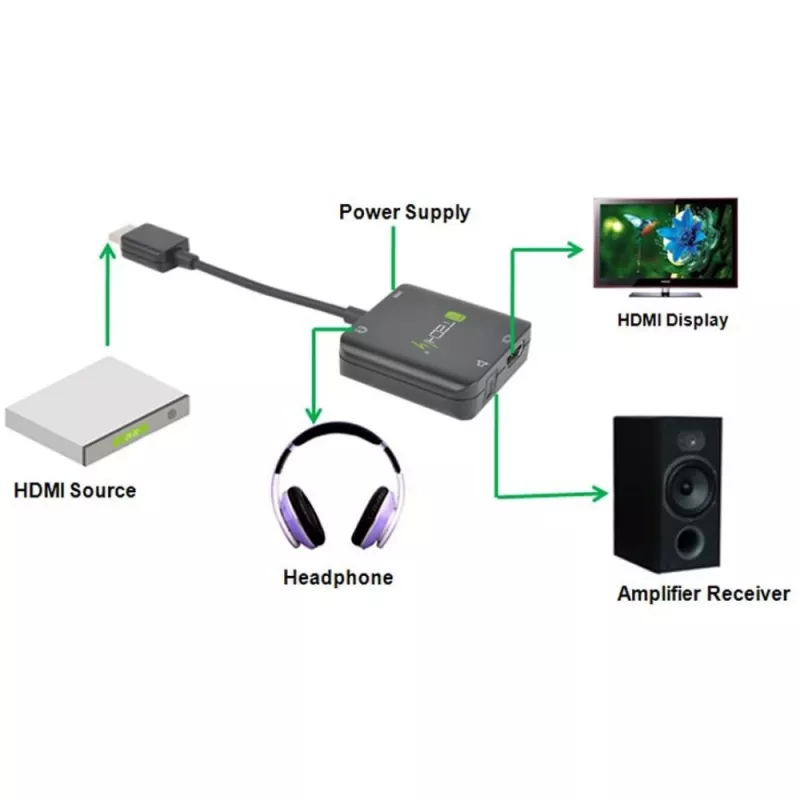

And 'ideal for connecting a TV to an HD DVD player, but also to connect the receiver amplifier via Toslink port, which allows you to enjoy at the same time high-definition video and high quality audio. IDATA HDMI 5.1-VGA8 extracts audio from the source to the amplifier with Toslink cable and restore Dolby 5.1 or DTS multi-channel audio through the system, forming a perfect home theater system. In addition, when you connect the headphone output, audio output automatically switches to 2.0 audio.

Features
- Supports HDMI resolution up to 4Kx2K @ 30HZ
- Supports bandwidth 300MHz / 3Gbps per channel (total 9Gbps)
- Supports video resolutions up to 8-bit 4K (30 Hz), 12-bit 1080p (60Hz) or 12-bit 720p / 1080i (60 Hz)
- Supports 3D formats up to 300 MHz
- HDCP Compatible
- Supports uncompressed audio such as LPCM
- Supports compressed audio such as DTS Digital, Dolby Digital

Technical specifications
- Input: 1x HDMI
- Output: 1x HDMI
- Other connectors: Toslink / Stereo; Micro USB for charging (5V / 1A)
- Supported resolution: up to 4Kx2K @ 30Hz
- External power supply 5V DC 1A
- Maximum consumption 2W

Environmental features
- Operating Temperature: 0-70 ° C
- Storage temperature: -10 / + 80 ° C
- Operating Humidity: 10% -85% non-condensing
- Storage Humidity: 5% -90% non-condensing

Dimensions
- Width: 55 mm
- Depth: 55 mm
- Height: 16 mm

Certifications
- EC
- FCC

Package Contents
- Audio Extractor
- 5V 1A
- User manual

Techly Extractor HDMI Audio Stereo/Audio 5.1 Channel 4K 3D IDATA HDMI-VGA8. Connector 1 gender: Male, Connector 2 gender: Female, Supported video modes: 2160p. Compliance certificates: CE, Certification: CE, FCC. Weight: 62 g, Width: 55 mm, Depth: 55 mm
