Techly 19-37 inch Wall Mount for LED LCD TV Tilt 2 Joints Black” ICA-LCD 2901

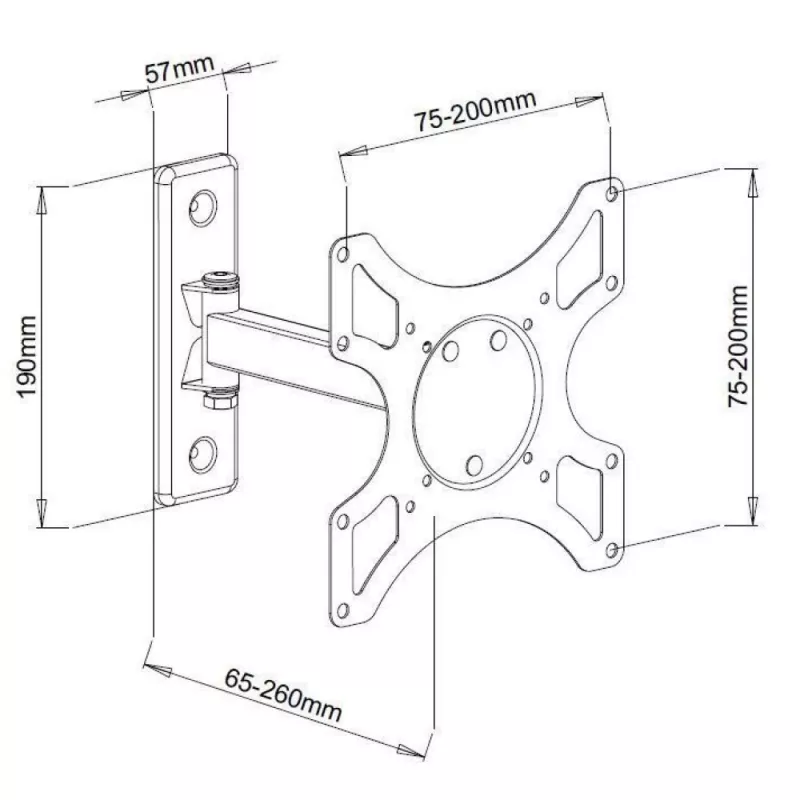

The Techly ICA-LCD 2901 wall mount is made for LED and LCD televisions with screen sizes from 19" to 37" and a maximum load of 25 kg. The bracket supports VESA mounting patterns from 75 x 75 mm up to 200 x 200 mm and allows the display to be positioned between 6.5 cm and 26 cm from the wall. Its adjustable tilt range and wide swivel capability permit aligning the TV for comfortable viewing while the black finish integrates with most interior styles.

Advantages

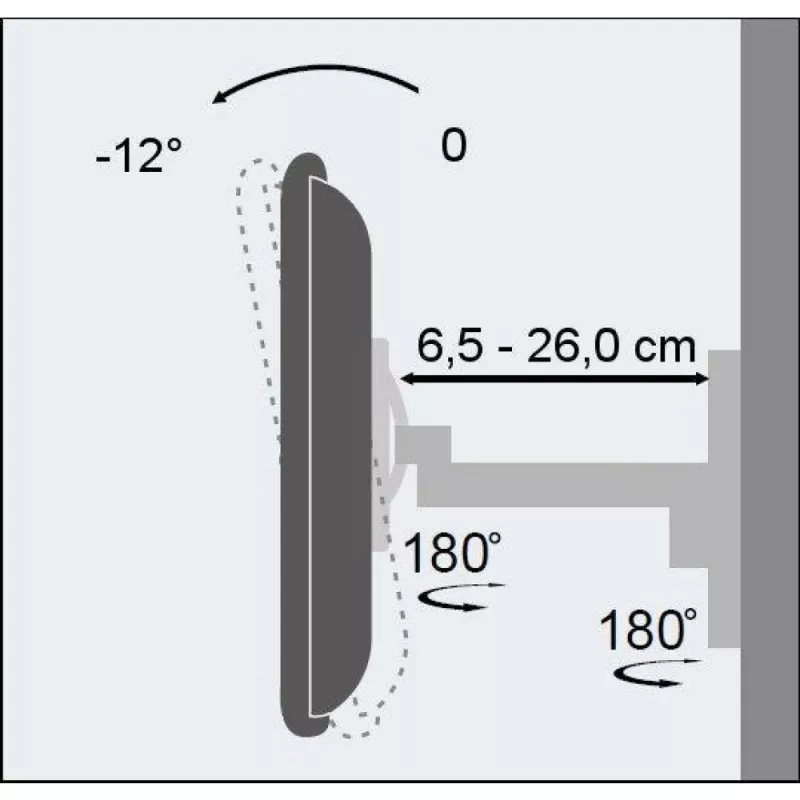

This wall mount provides flexible screen positioning with a tilt range from -12° to 0° and a swivel range from 0° to 180°, enabling both vertical and horizontal adjustment as needed. Compatibility with multiple VESA patterns and a compact, lightweight construction simplify installation and reduce the need for additional brackets. Built to hold up to 25 kg, it securely supports a single display while keeping a low profile close to the wall.

Suitable for

• Mounting small to mid-size LED/LCD TVs in living rooms or bedrooms
• Space-saving installations in kitchens, offices, or hotels
• Rooms where adjustable viewing angles are required

Key specifications

• Supported screen size: 19"–37"
• Supported VESA patterns: 75 x 75 mm up to 200 x 200 mm
• Maximum load capacity: 25 kg
• Tilt range: -12° to 0°
• Swivel range: 0° to 180°
• Distance from wall (adjustable): 6.5 cm – 26 cm
• Number of displays supported: 1
• Product colour: Black
• Product weight: 1.838 kg

How to use

Position the mount at the desired height on a suitable load-bearing wall, mark the fixing points and drill holes appropriate for your wall type. Attach the wall plate securely, then fix the mounting arms to the TV using screws that match the display's VESA pattern. Lift the TV onto the wall plate and engage the locking mechanism or secure with the supplied fasteners. Adjust tilt and swivel to obtain the preferred viewing angle, and verify all fixings are tight before leaving the installation unattended.

Recommendations

Use appropriate wall anchors or bolts for the wall material (concrete, brick, or studs in drywall). Confirm the TV's VESA pattern and weight do not exceed the mount's specifications. When in doubt, consult a qualified installer to ensure safe and level mounting. Periodically check fastenings and retension if necessary.
