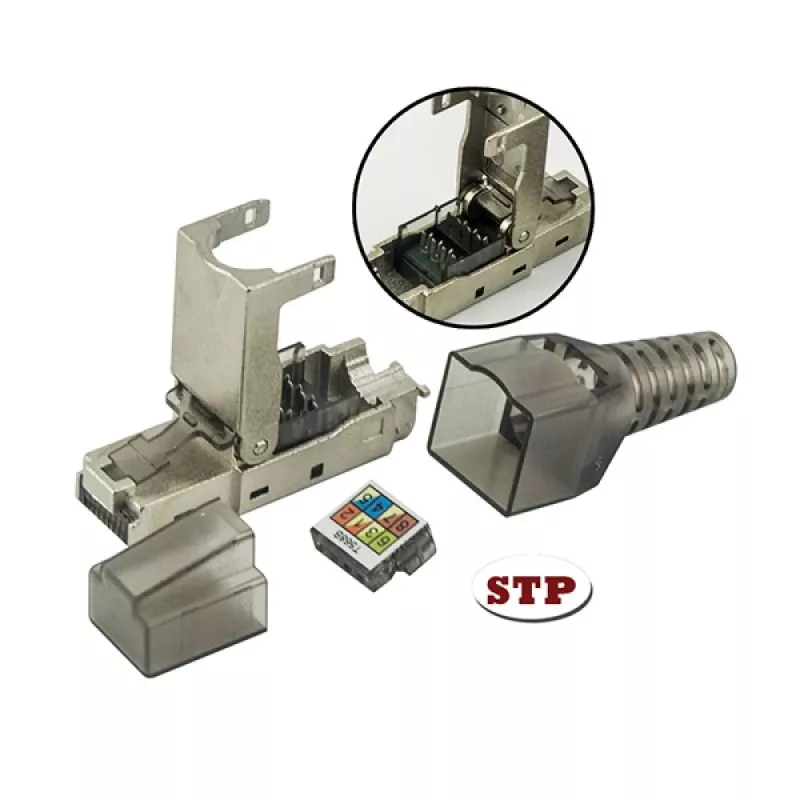

Techly 101911 Cat.6a STP Tool-less RJ45 Modular Connector, 10G, Zinc Alloy, 22-26 AWG

10 Gigabit Ethernet over copper demands uncompromising signal integrity, and this Techly 101911 Cat.6a STP tool-less RJ45 modular connector delivers exactly that. With a 500 MHz bandwidth and 50µm gold-plated contacts, it's built for high-speed, high-PoE networks where every milliohm matters.

Overview

The Techly 101911 is a field-terminable RJ45 plug engineered for Category 6a shielded twisted pair cabling. It supports 10GBASE-T performance and is fully compliant with ISO/IEC 11801, EN 50173, and TIA/EIA-568-C.2. The zinc alloy shielded housing provides robust EMI protection, while the polycarbonate insert ensures precise wire alignment and long-term reliability.

What stands out

• Tool-less termination: no crimp tool needed, just a simple press-fit mechanism for fast, repeatable installations.
• Broad cable compatibility: accepts solid or stranded conductors from 22 to 26 AWG, with color-coded T568A/B wiring guides.
• Heavy-duty construction: zinc alloy body withstands 750 mating cycles and operates from -10°C to 60°C.
• PoE++ ready: supports IEEE 802.3af/at/bt for up to 100W power delivery without signal degradation.

Technical details

• Connector type: RJ45 (8P8C), shielded (STP)
• Category: Cat.6a (500 MHz)
• Performance: 10 Gigabit Ethernet (10GBASE-T)
• Termination: tool-less, field terminable
• Wire gauge: 22-26 AWG, solid or stranded
• Contact plating: 50µm gold over nickel
• Housing: zinc alloy shield, polycarbonate insert
• Wiring: T568A and T568B color-coded
• PoE: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -10°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)
• Durability: 750 mating cycles
• Insulation resistance: > 500 MΩ
• Dielectric withstanding voltage: 1000V AC RMS, 60Hz, 1 min
• Certifications: RoHS compliant

Our verdict

The Techly 101911 is a professional-grade RJ45 connector that combines tool-less convenience with Cat.6a performance and robust shielding. Ideal for high-speed, high-power network installations where reliability is critical.
