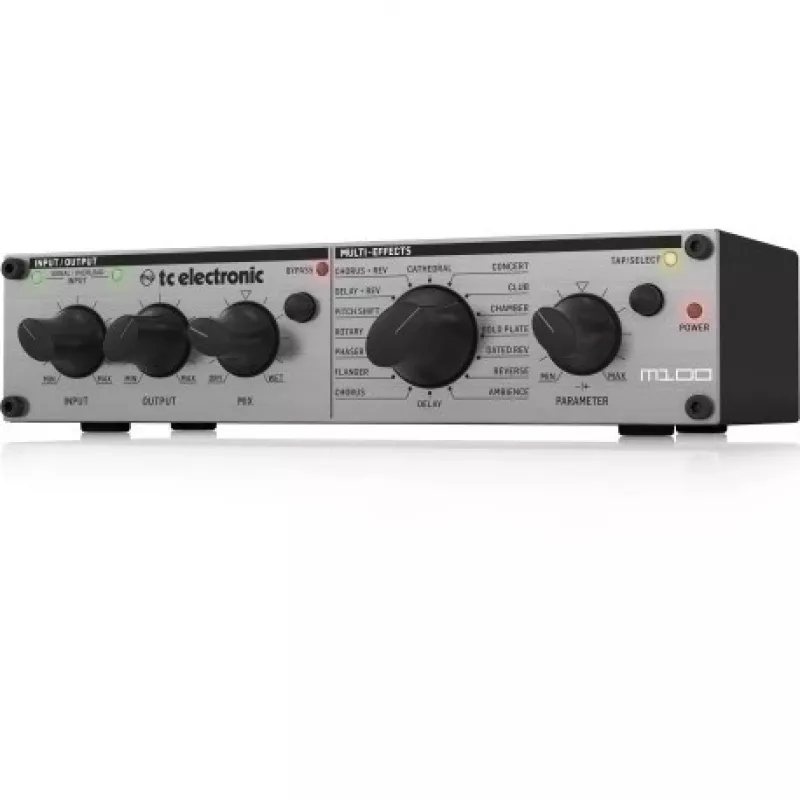

TC Electronic M100 Dual Effects Processor

The TC Electronic M100 is a professional dual effects processor designed for musicians, sound engineers, and live performers. Offering 16 high-quality effects with 16 variations each, it delivers studio-grade reverb, delay, modulation, dynamics, pitch, and EQ processing. With the ability to run two effects simultaneously, the M100 provides versatile sound shaping for vocals, instruments, and line-level signals.

Advantages

Exceptional sound quality with 24-bit conversion and 48 kHz sample rate. Intuitive controls with dedicated parameter knobs and LED display for quick adjustments. Compact half-rack 1U form factor fits any setup, whether desktop or rack-mounted. Relay-based hard bypass ensures pure signal path when effects are off.

Suitable for

• Live sound reinforcement
• Studio recording
• Keyboard and synth processing
• Guitar and bass effects
• PA systems and front-of-house

Key specifications

• Effect Categories: Reverb, Delay, Modulation, Dynamics, Pitch, EQ
• Number of Effects: 16 (each with 16 variations)
• Simultaneous Effects: Up to 2
• Presets: 16 factory, 16 user
• A/D D/A Conversion: 24-bit
• Sample Rate: 48 kHz
• Analog Inputs: 2 x XLR (balanced), 2 x 1/4" TS (unbalanced)
• Analog Outputs: 2 x XLR (balanced), 2 x 1/4" TS (unbalanced)
• MIDI Connectivity: In, Out, Thru
• Footswitch Input: 1 x 1/4" TRS
• Frequency Response: 20 Hz - 20 kHz
• Dynamic Range: >90 dB
• Form Factor: Half-rack 1U
• Bypass Type: Hard Bypass (relay-based)
• Power Supply: External DC 9V adapter
• Processing Type: Digital
• Display Type: LED Program Display

Recommendations

For optimal performance, use balanced XLR connections to minimize noise. The M100 can be controlled via MIDI for seamless integration with digital consoles and DAWs. Ideal for adding professional effects to any audio chain.
